Street/Yard/Area Lighting w/Photo Eye 150w 20,000 Lumen

SPECIFICATION SHEET

INSTALLATION INSTRUCTIONS

10kV/10kA common- and differential- mode surge protection!

DESCRIPTION
Our MUNICIPAL GRADE LED roadway luminaire provides uncompromising optical performance and outstanding versatility for a wide variety of area and roadway/area lighting applications. Our customer focused features include single latch tool-less entry, industry leading surge protection and superior lumen maintenance and performance, all in an economical design. It is ideal for illuminating walkways, parking lots and roadways.

CONSTRUCTION
Heavy-duty cast aluminum housing and removable door 3G vibration rated to ensure strength of construction and longevity in application.
Housing is completely sealed against moisture and environmental contaminants.  Osram 5050SMD

OPTICS

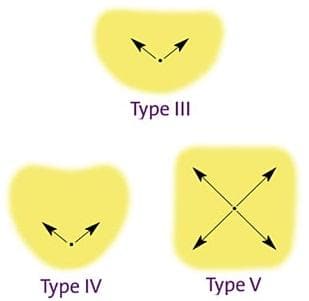

● Available in IES Type II, III (IN STOCK), IV , distributions.
● Offered Standard in 5000K (IN STOCK) (+/- 275K) CCT and minimum 70 CRI.
● Scalable Lumen Packages from 6,100 to 20,000 Lumens replaces up to 400W Metal Halide.
● Optics are precisely designed to shape the distribution, maximizing efficiency and application spacing.

** MOUNTING ARM NOT INCLUDED - See accessories for ordering a mounting arm (CLICK HERE)

ELECTRICAL
● Standard drivers feature electronic universal voltage (120-277V 50/60Hz)
● Standard 1-10V dimming and 10kV/10kA common- and differential- mode surge protection.
● Greater than 0.9 power factor, less than 20% harmonic distortion, and is suitable for operation in -40°C to 45°C ambient environments.
● LED drivers mount to die-cast aluminum back housing for optimal heat sinking, operation efficacy, and prolonged life.

LIFESPAN
● Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Warranty
● 10 year warranty.
