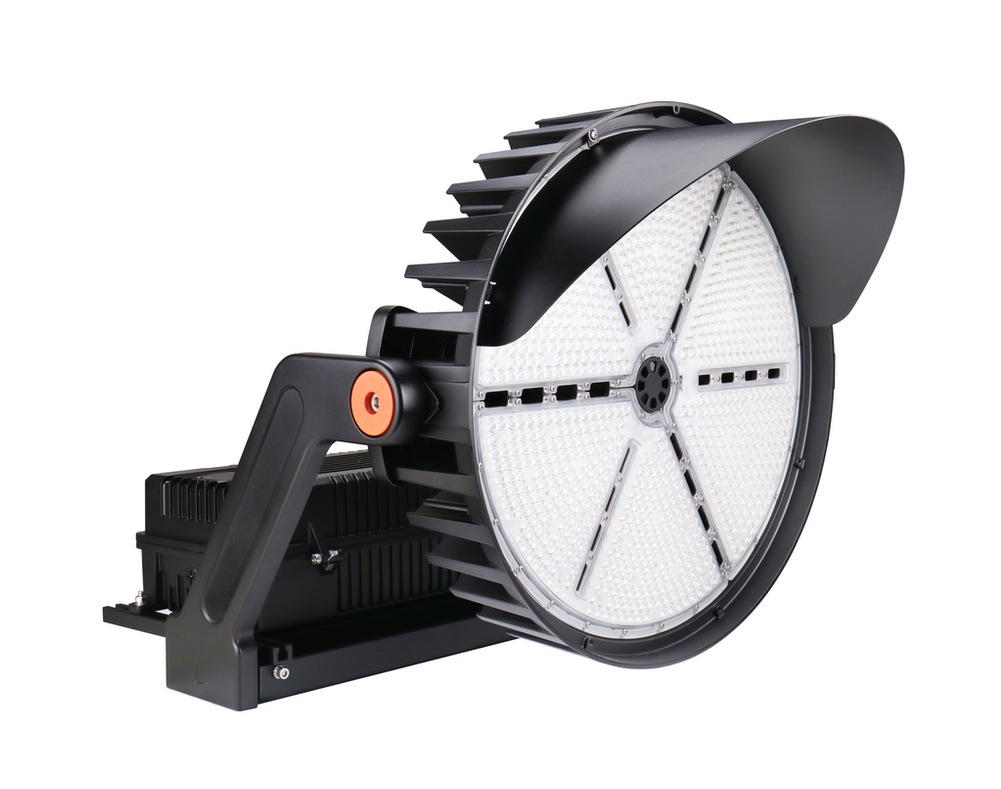

Stadium Sport Field LED Lighting 700W/600W/450W Selectable 105,000 Lumen 40° 5000K 220-480VAC

 SPECIFICATION SHEET

DESCRIPTION
By providing superior high output and high efficiency, sports light series,
is the ideal solution for outdoor sports lighting such as municipal, school and semi-professional outdoor sports lighting. Dynamic thermal management design maximizes heat dissipation and significantly improves the life of luminaires. Built-in surge suppression adds an extra layer of protection to the luminaire driver. Versatile mounting bracket for hassle-free installation.

LED High Mast Lighting 700W/600W/450W Selectable Advantages:

• Heavy duty die cast aluminum housing offers a durable and modern aesthetic while carrying inspiration from existing legacy fixture solutions
• Glare shield included in packaging. Easy install for use as required by site demands

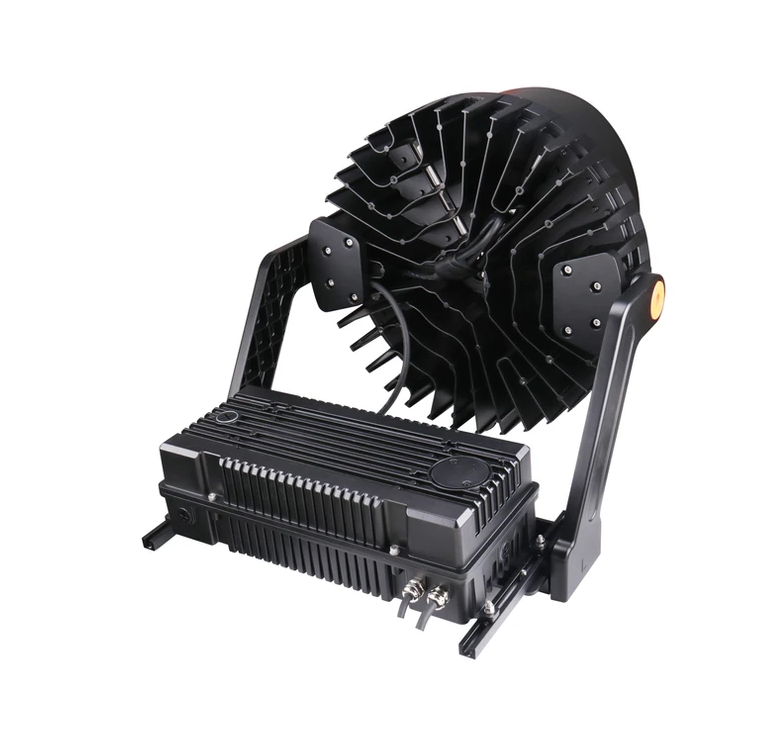

• Designed for install as a single assembly or with remote driver box. Allows for on site flexibility.
• Power factor: >0.95; THD: <20%
• Lumen Maintenance over 70% @ 100,000+ Hours
• Pre-Installed Angle Adjustable Yoke Mount Bracket

• The latest LED technology, cold forging heat-dissipation design to achieve long operating life.

• Equipped with Mean Well drivers to ensures the durability of the product.

• Energy saving 80%~85% to save a tremendous amount of money.

• 10-year warranty

Wattage     500W/400W/300W Selectable

Luminous Flux   140LM/W

Input Voltage  220-480vAC

Power Factor  >0.95

CRI   ≥80Ra

Driver Brand   Meanwell

Light Distribution   40°

Color Temp.  5000K

Dimming Options   0-10V dimming

SPD        L/N-PE: 10kV, L-N:6kV

IP Rating              IP65

Operating Temp.   -40˚F ~122˚F / -40˚C~50˚C

Lifespan >50,000 Hrs

Warranty 10-year warranty

Certificates         UL and DLC

CONSTRUCTION
● Sealed die-casting profile for outdoor applications
● Low profile, 3G vibration rated compact design minimizes wind load requirements.
● Housing is completely sealed against moisture and environmental contaminants (IP66).

OPTICS
● Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
