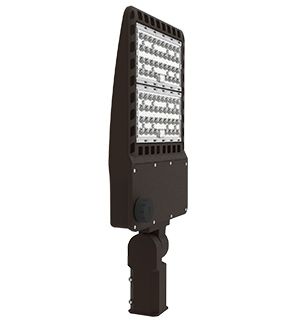

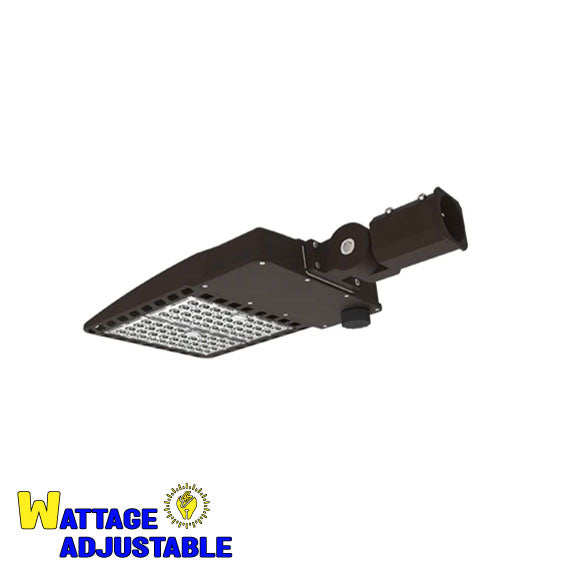

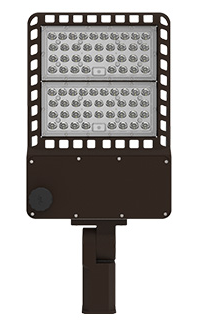

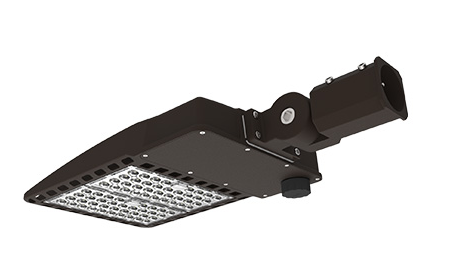

Shoe Box Light WATTAGE SWITCHABLE (300w/350w/400w) 68,000 Lumen (Optional Remote Programmability)

SPECIFICATION SHEET

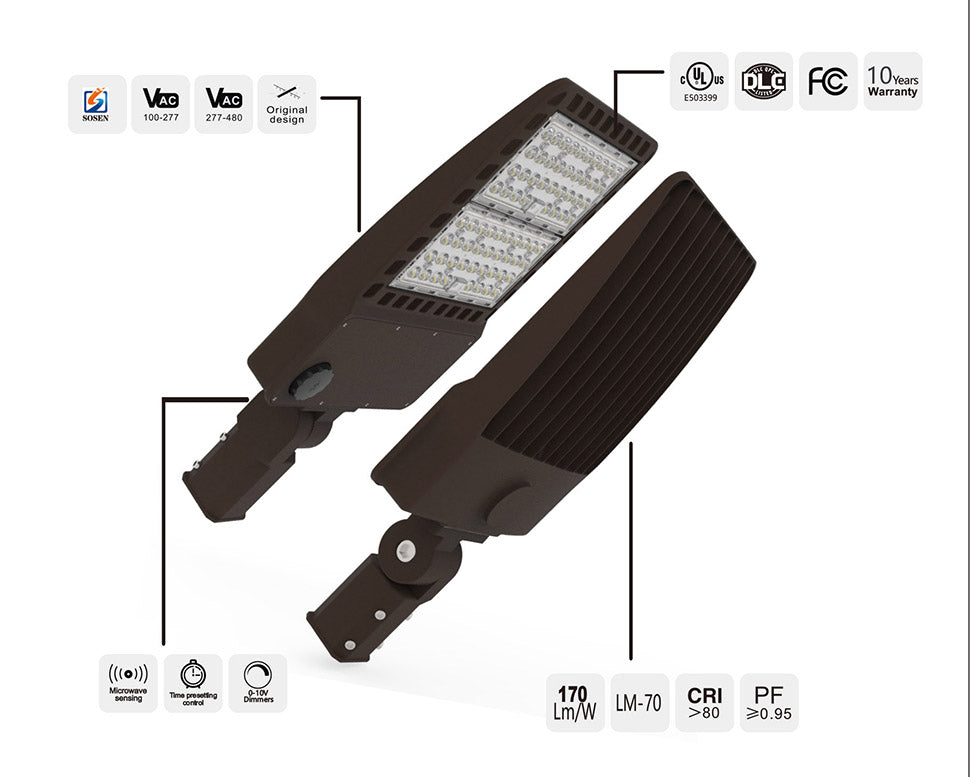

Our new Shoebox Area Light produces 170+lm/w

Our LED Area Shoebox light is perfect for Area Lighting, Flood Lighting, and good for medium height parking lot poles and new construction applications in industrial outdoor applications, such as parking lots, road ways, seaside areas, outdoor applications.

Switchable Wattage - Manual Dip Switch Wattage Adjustability + Optional Programmability using the Haisen Remote/Sensor System allowing for Motion Sensor, Light Scavenging, 0-10v Dimmable (Easily change the lumen output to your individual customer/application needs)(increase output in areas where needed, decrease wattage in areas where less light is needed) **1 REMOTE REQUIRED (1 remote will operate all units)

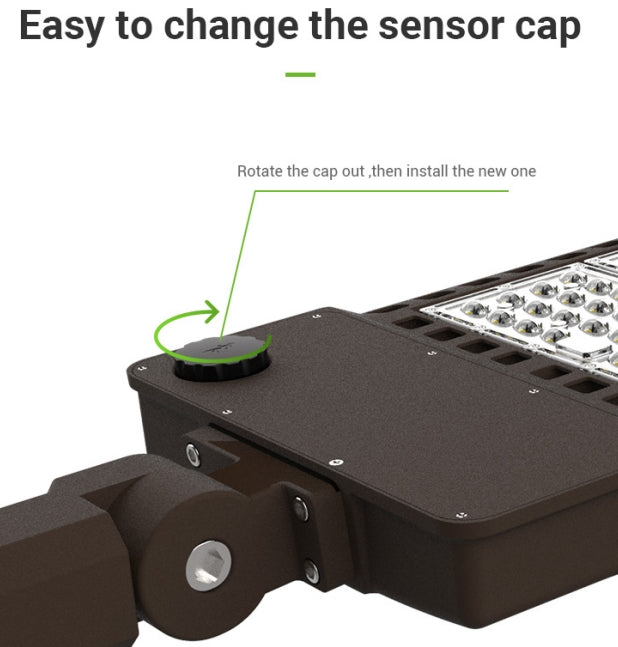

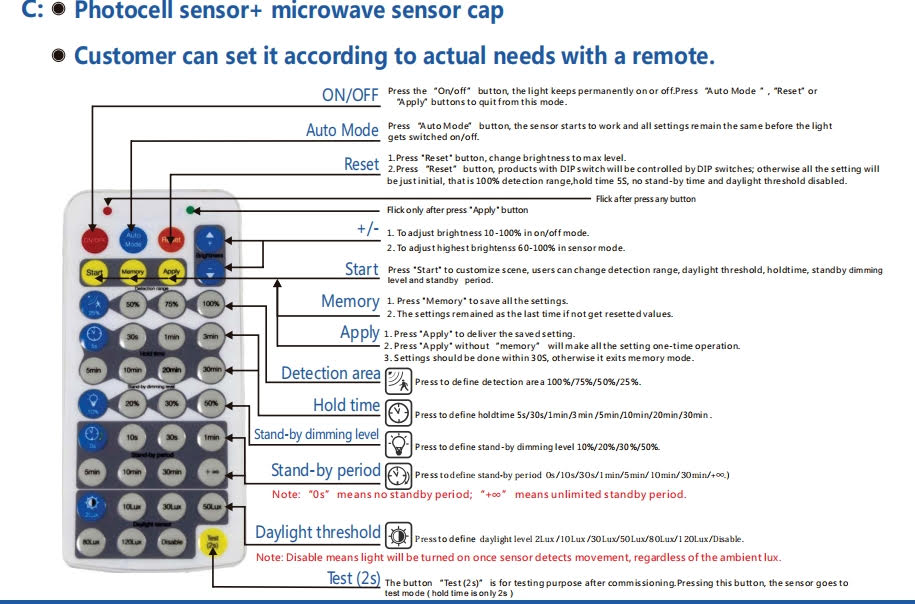

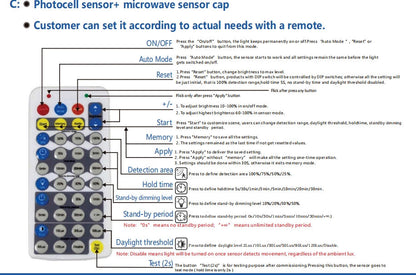

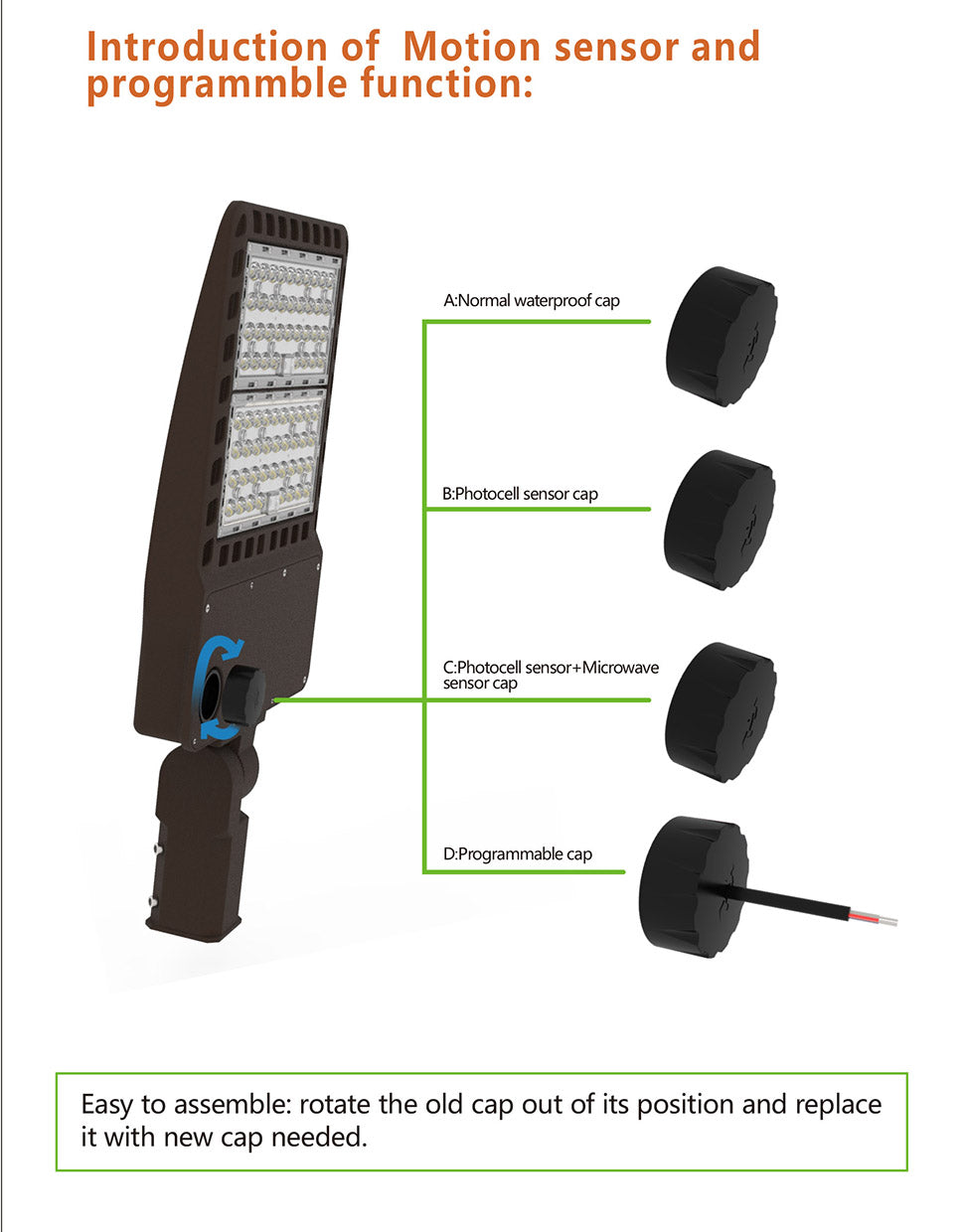

Programmable - Using the optional Sensor Module, this unit can be programmed for PHOTOCELL DUSK TO DAWN, MOTION SENSOR, DAYLIGHT THRESHOLD (Light Scavenging), DIMMING, TIMER, and more.

             ** For the full programmable features, simply purchase (1) remote (only 1 remote required to program all your light heads)

Additional Options:

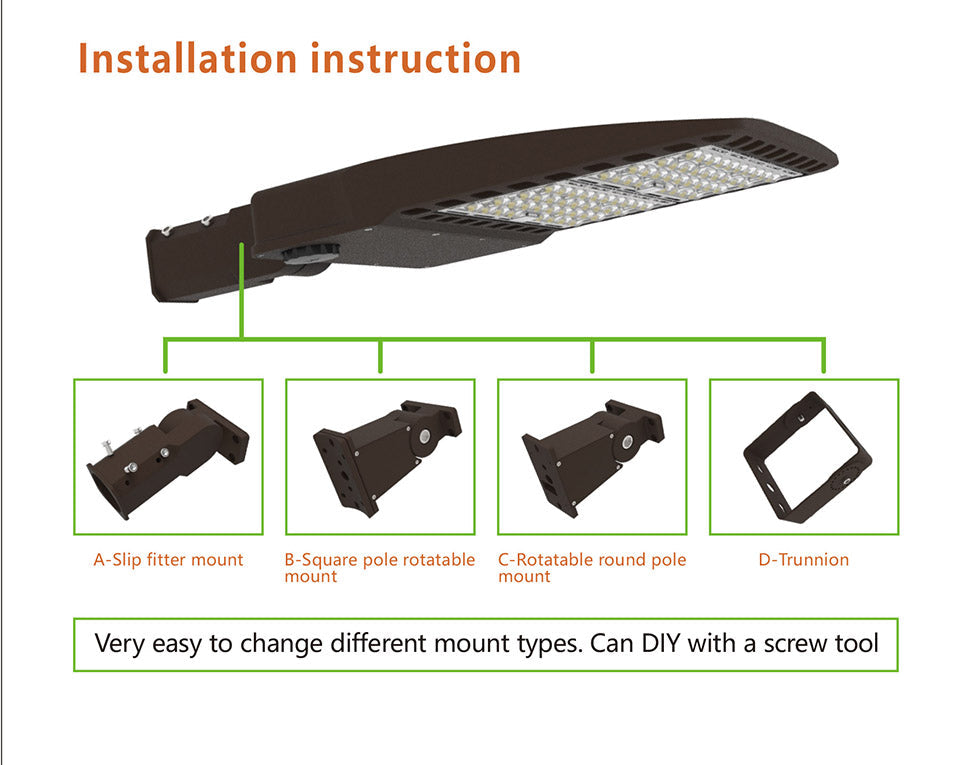

Mounting

• Round/Square Pole Bracket (Click Here to Order)
• Slip Fit Bracket (Click Here to Order)
•  D-Trunnion Bracket  (Click Here to Order)

Programmable Control

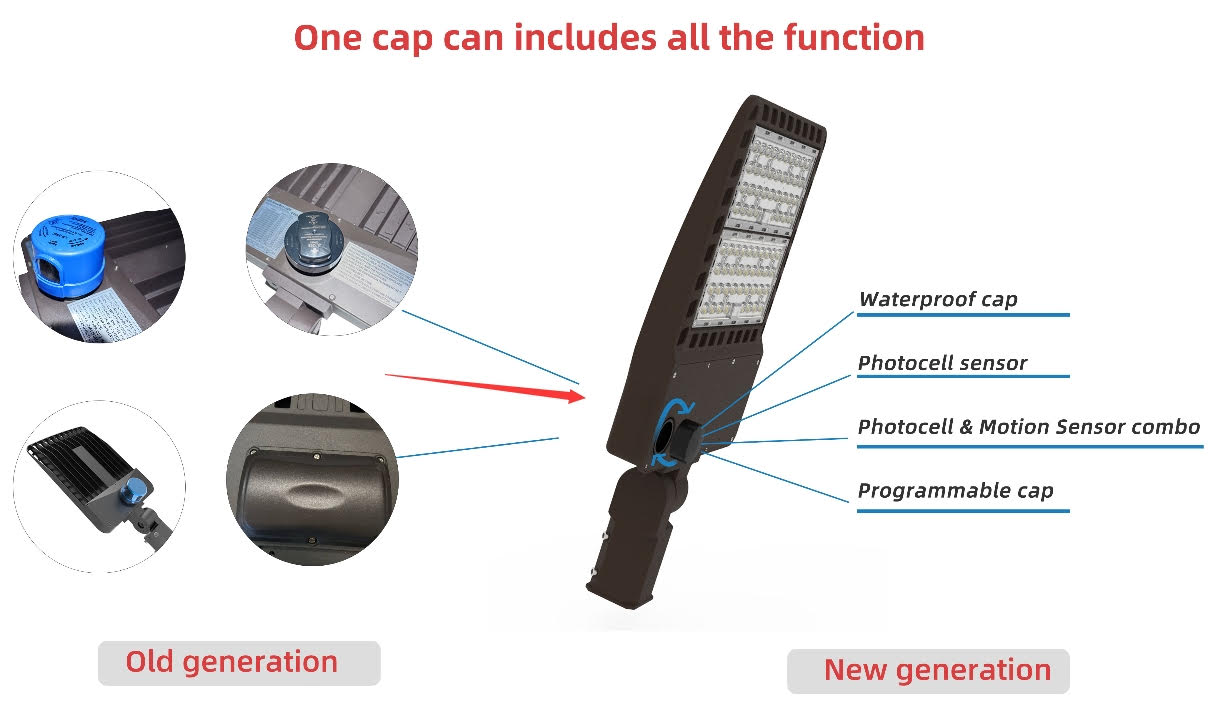

• Photocell+Dimming+Motion Sensor Module (Click Here to Order)

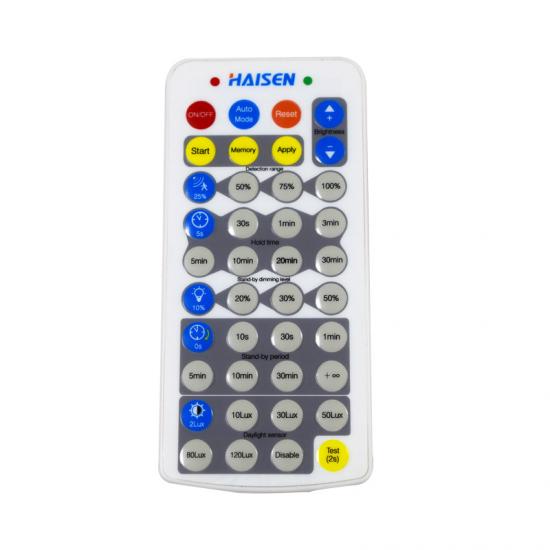

• 1 Remote Control required (1 programs multiple units) (Click Here to Order)

Construction

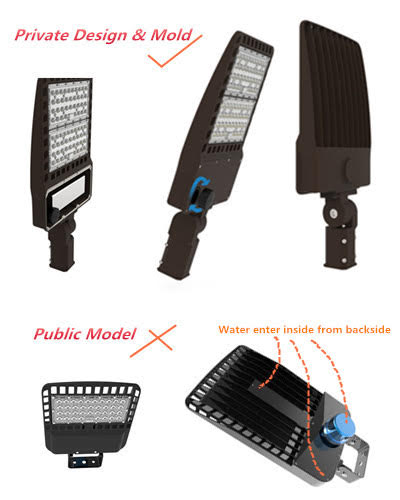

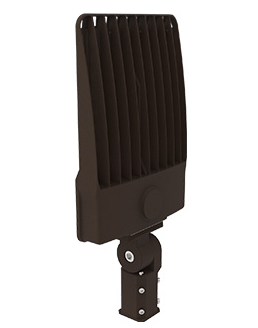

• Durable, die-cast aluminum housing with heat dissipating fins
• Dark bronze polyester powder-coat finish

Electrical

• Universal 120-277 VAC  (347-480 VAC Special Order)
• Dimmable 0-10v (remote control and receiver module required)
• 20Kw Lightning Arrestor Pre-Installed

Kelvin

• 5000K

Mounting Options

• Round/Square Pole Bracket (Click Here to Order)
• Slip Fit Bracket (Click Here to Order)
• D-Trunnion Bracket  (Click Here to Order)

UL listing

• Wet location

DLC 5.1 Premium

Recommended Use

• Automobile dealerships
• Parking lots
• Downtown areas

Distribution

• Type Ⅲ
