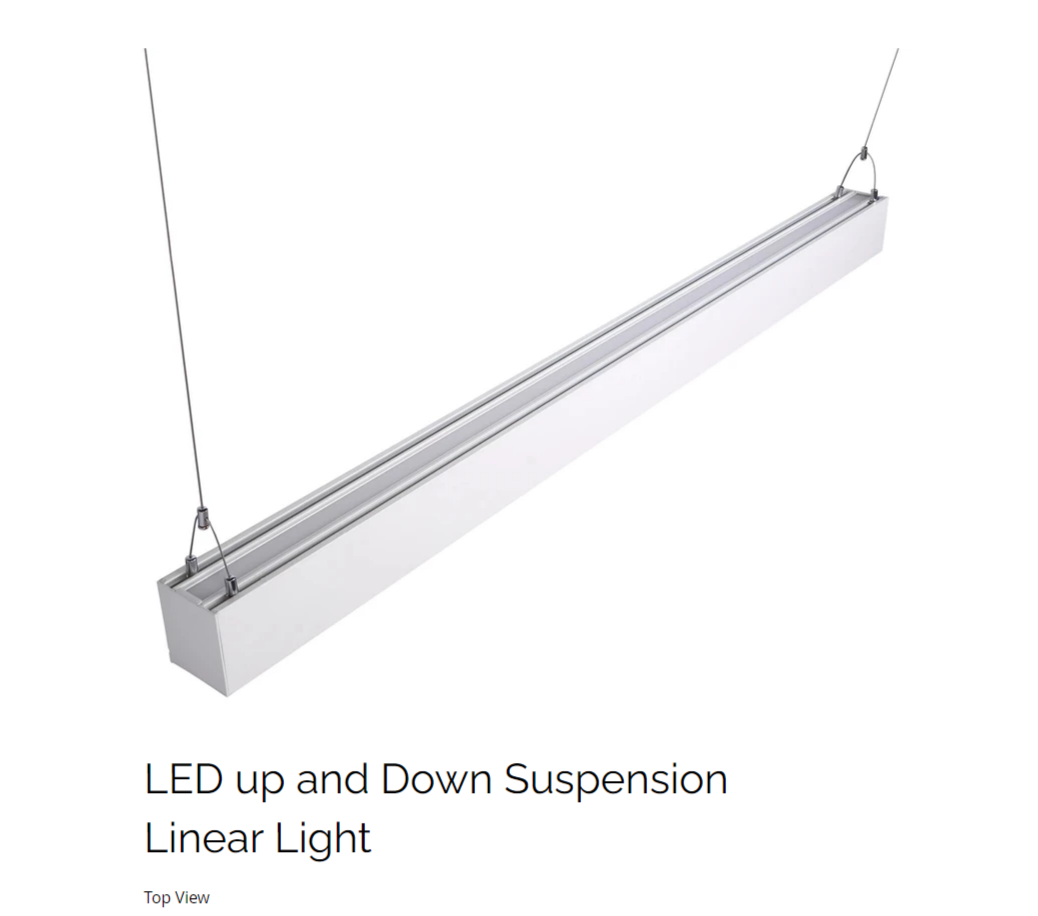

Linear Pendant Architectural Lighting System (End to End Linking, Corner, Cross, and T Connecting Options) 3CCT SWITCHABLE (3000K/4000K/5000K) Dimmable

SPECIFICATION SHEET

FEATURES

Wattage:  50W
Length: 4ft
Color: WHITE
Delivered Lumens: 6,500Lm@5000K
Efficacy:  130L/W
Voltage: 120V-277V
CCT: 3000K/4000K/5000K FIELD ADJUSTABLE
Finish/Material: Aluminum / PC Reflector
Warranty: 8 years

• Working temperature: - 4°F ~+104°F / -20°C ~+40°C
• Suitable for damp locations
• Lumen Maintenance over 70% @ 50,000+ Hours
• CRI: 80+; PF>0.95
• Beam Angle: 100°
• 0-10V Dimmable: 6.5ft 5wire power feed cable included
• 6.5' adjustable hanging cables included
• Body: White or Black Finish. Aluminum Heatsink for Efficient Heat Dissipation
• Linkable: with wire harness connection kit included for connecting power between fixtures.
• CCT adjustable to fit for different locations

OPTIONAL LINKING ACCESSORIES

 X SHAPE JOINT

L SHAPE JOINT

T SHAP JOINT
