CASE OF 25) T8 Linkable (2ft or 3ft) FROSTED LENS w/Mounting Hardware

SHIPPING INCLUDED

PRODUCT VIDEO

SPECIFICATION SHEET

ACCESSORIES AVAILABLE

We recommend 8 or more Lumens Per Cubic Foot for efficient lighting.

Length x Width x Height x 8 = Minimum recommended Lumens

** Divide that total lumen by the lamp of your choice lumen output, and this will give you your lamp count needed for that product in your area +-5%

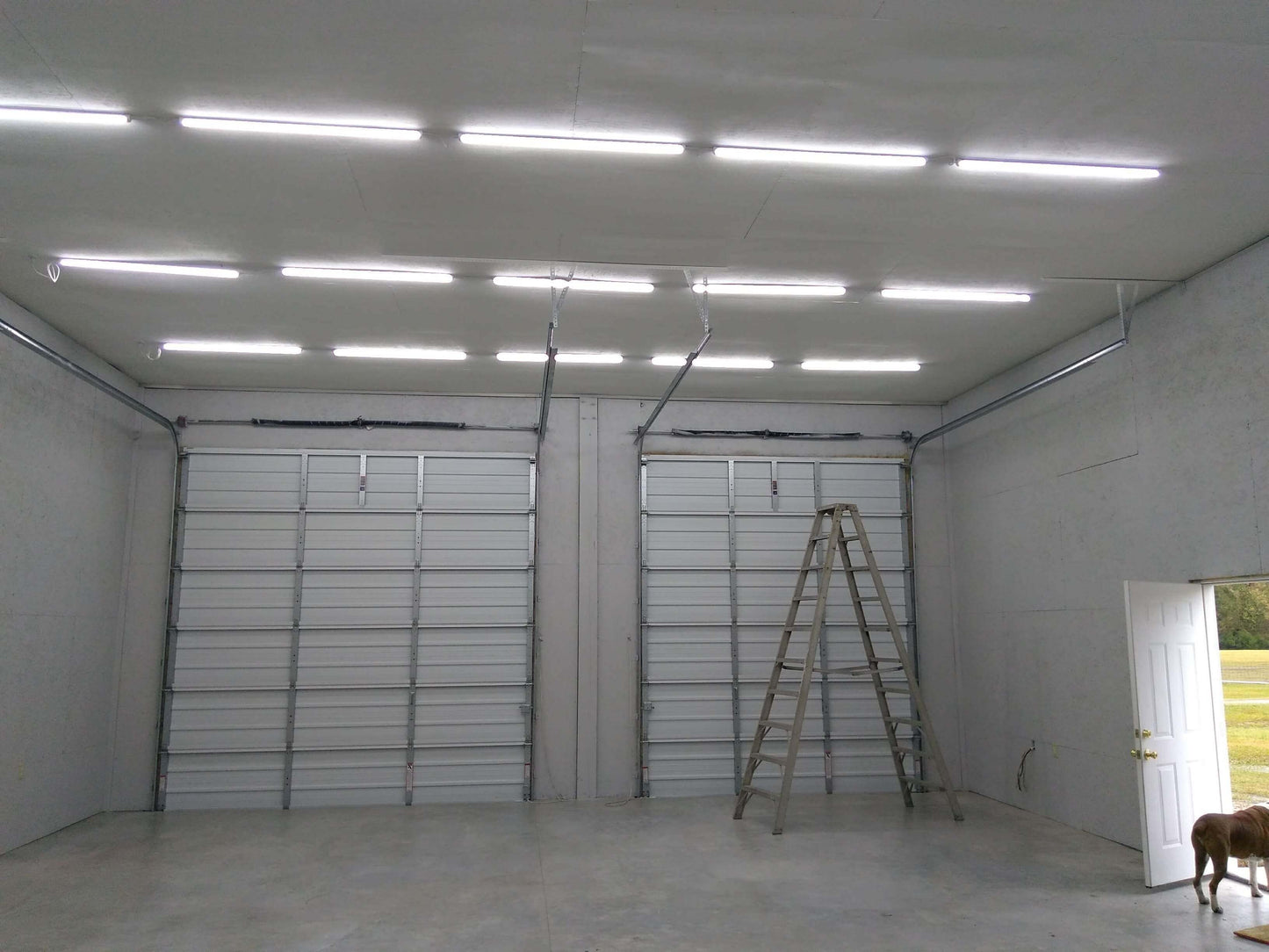

EXAMPLE: 40'W x 60'L x 12'H = 28,800 cu. ft. x 8 = 230,400 Divided by (72w 8' V-Series 10,944 lumens) 21.05 lamps - Our contractors typically use 3 rows of 7 in this space running one down the center, and the 2 outside rows 8' off the side walls.

- - These lights are very bright, using a fraction of the wattage that low end LED products use.

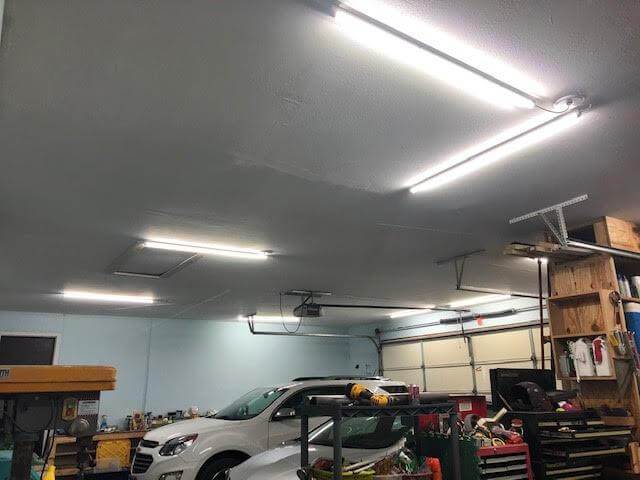

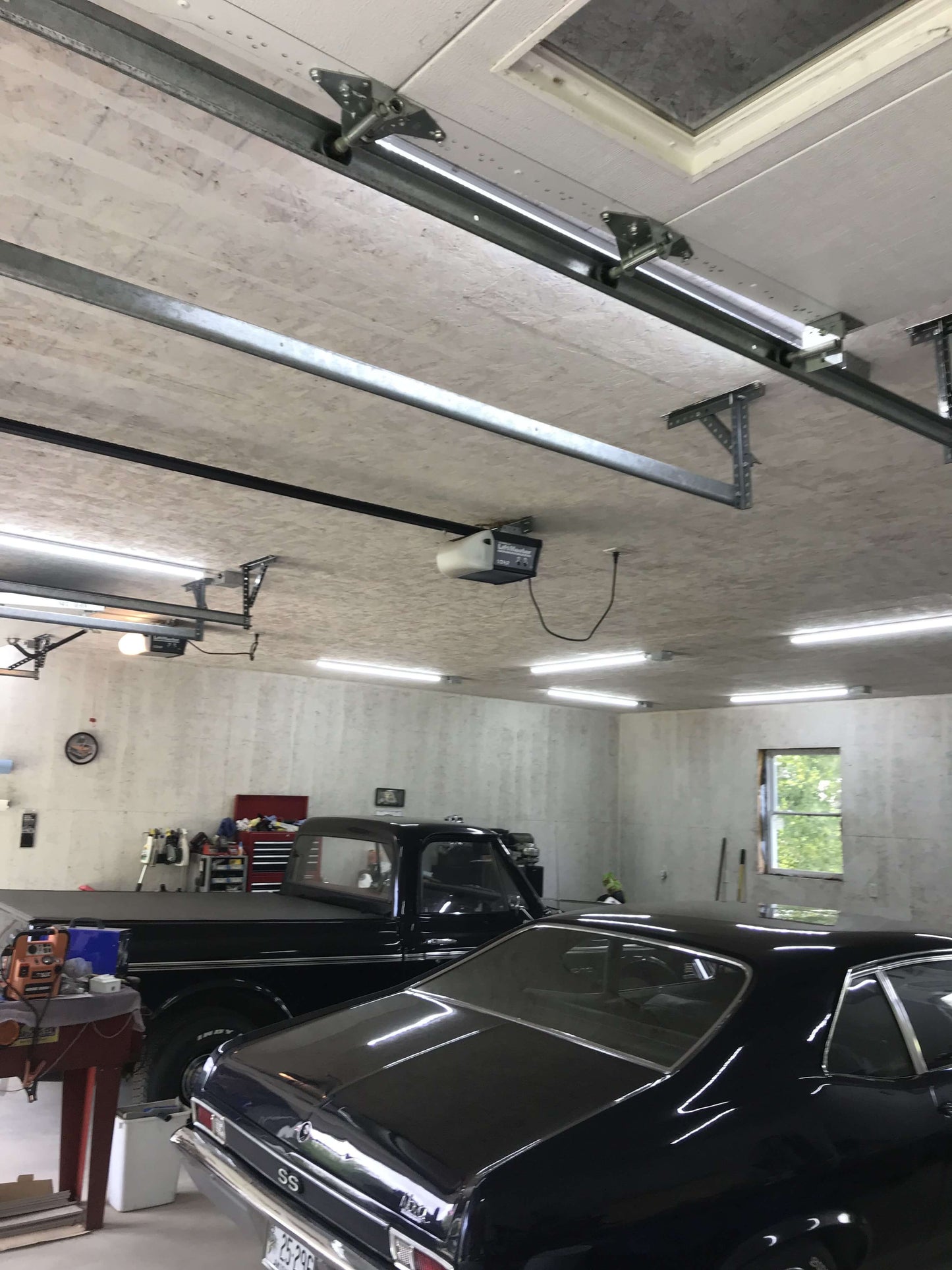

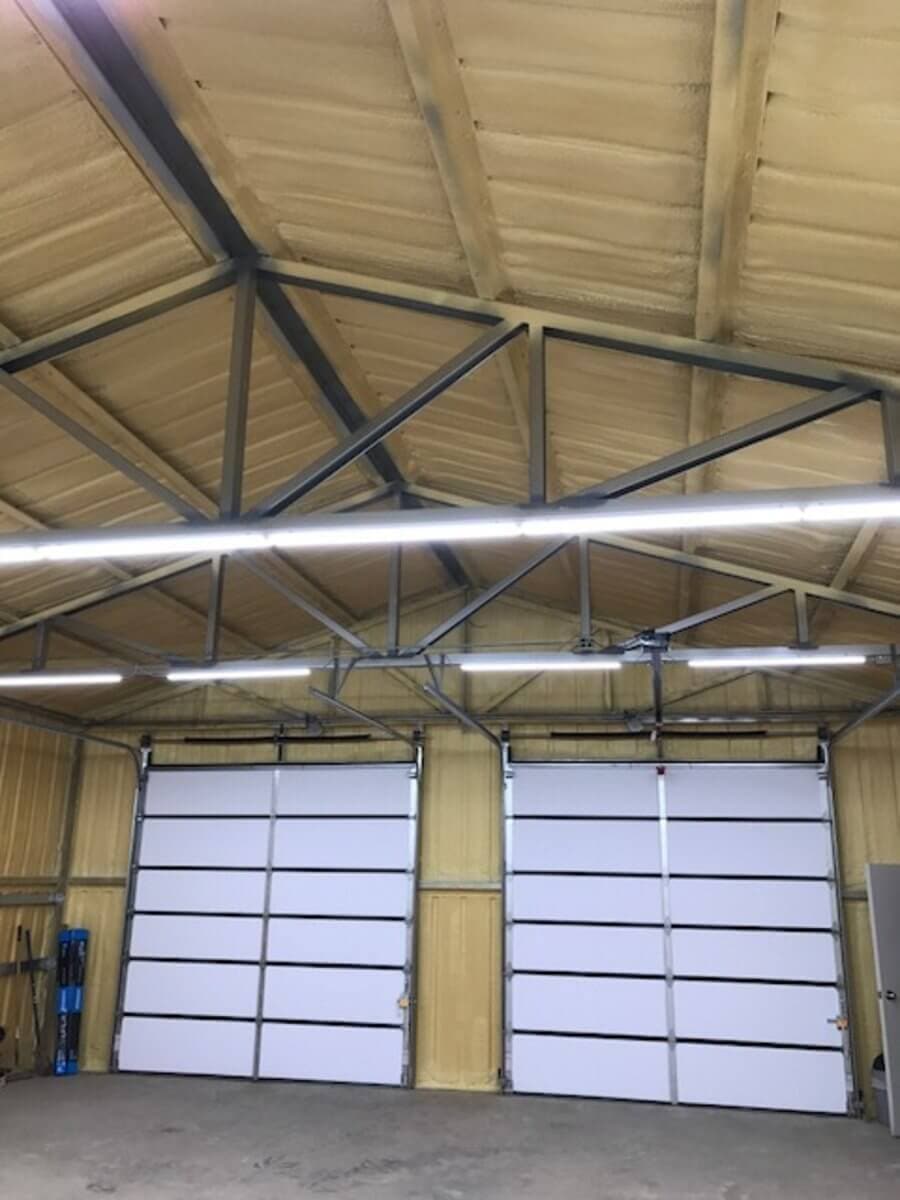

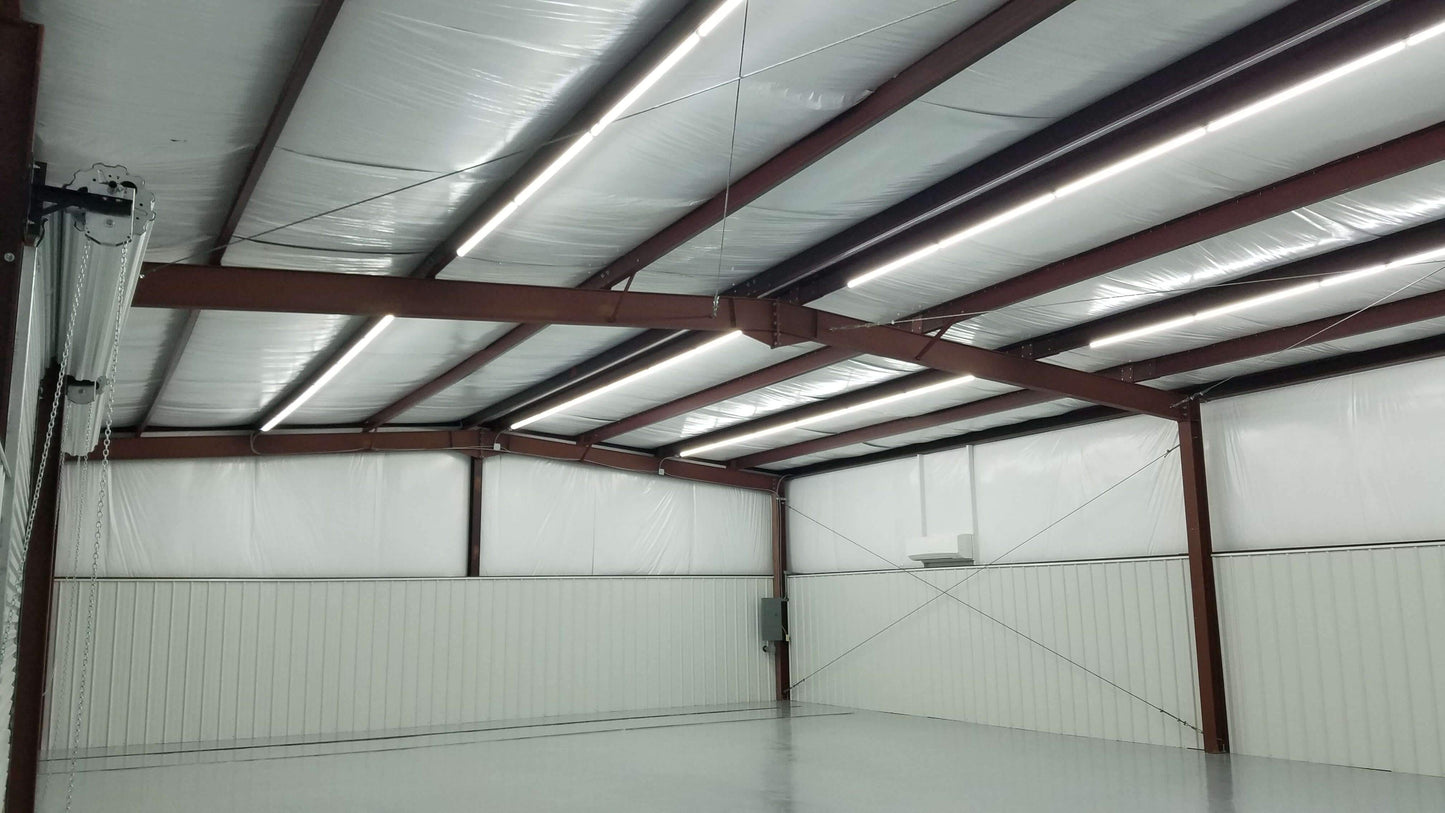

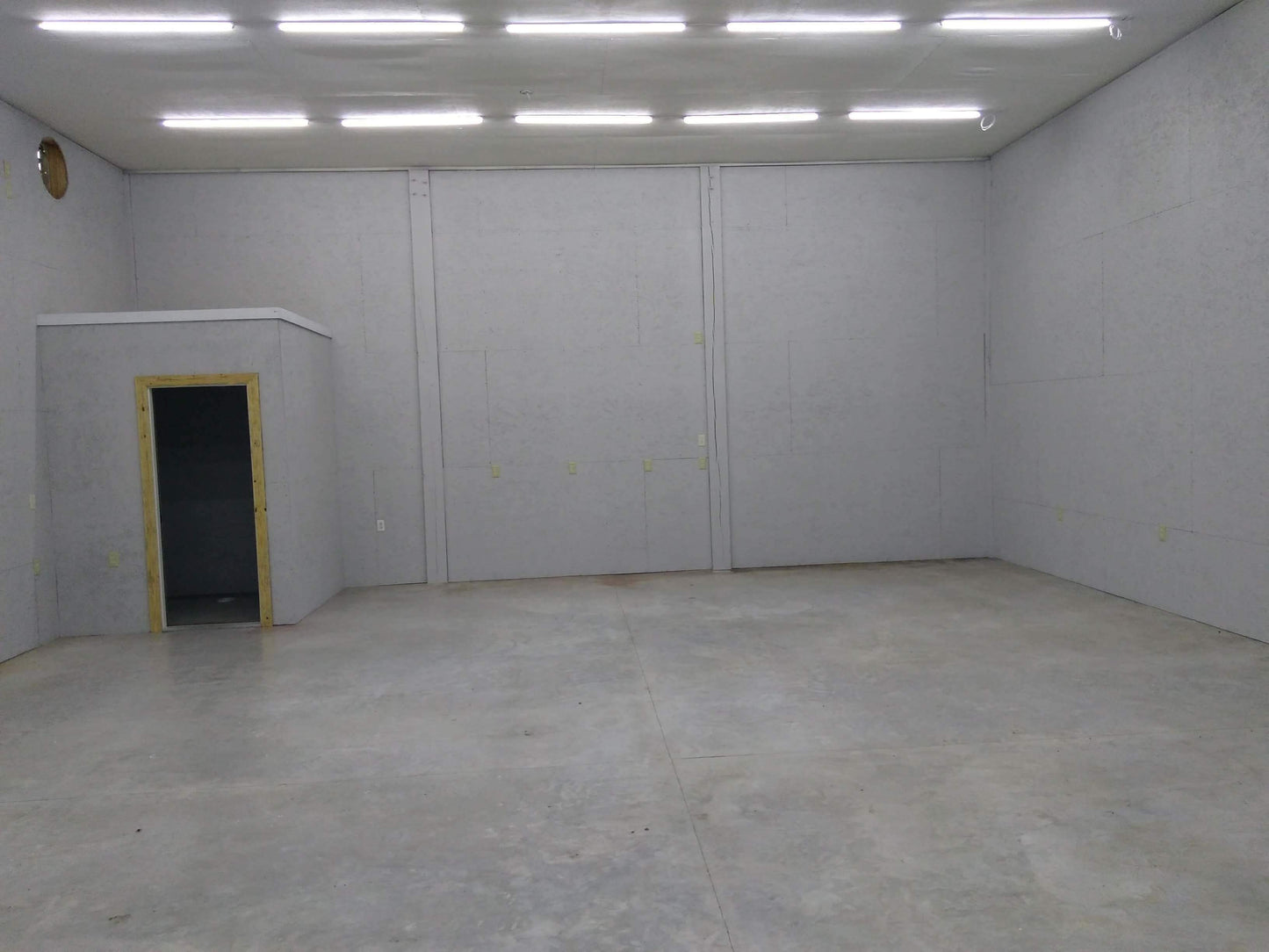

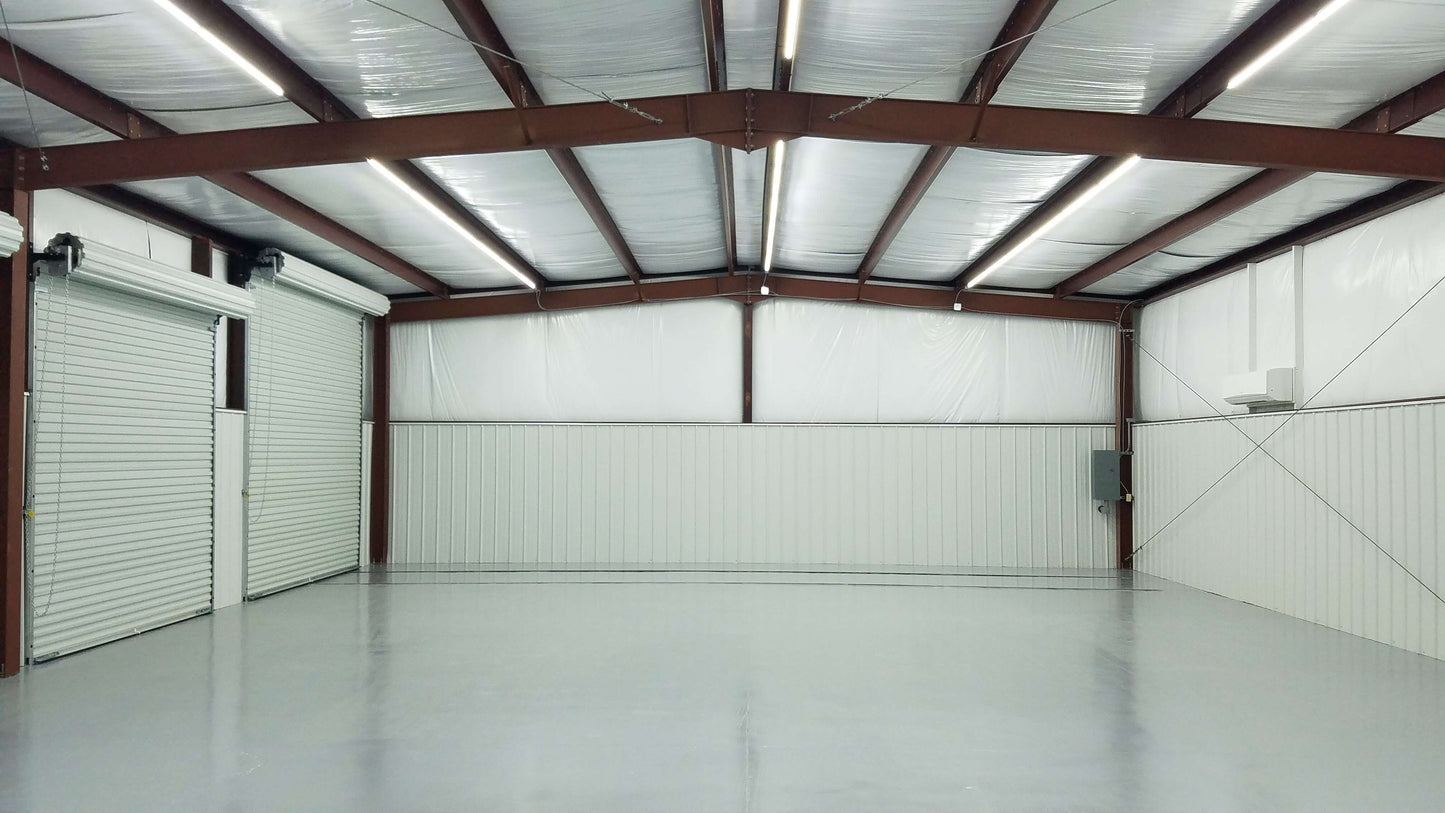

- They work great in cold conditions, like coolers, meat prep, garages, pole barns, etc.

- The New innovative design includes Stainless Steel Mounting Hardware, looks and performs as a high end, commercial/industrial LED product should in work shops, utility sheds, utility and laundry rooms, etc.

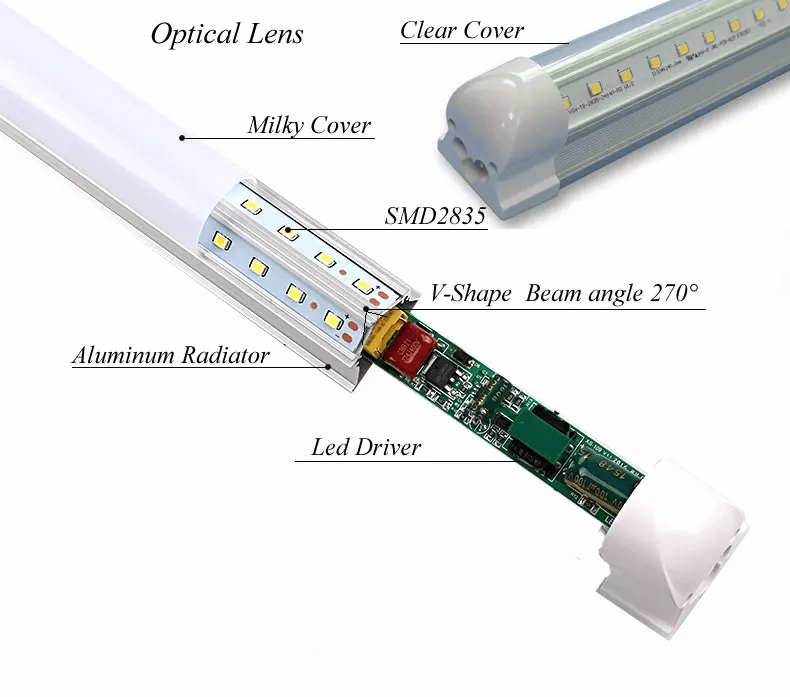

- Our V-Profile Series lights provide excellent 270 Degree lumen projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems using 2 HO lamps.

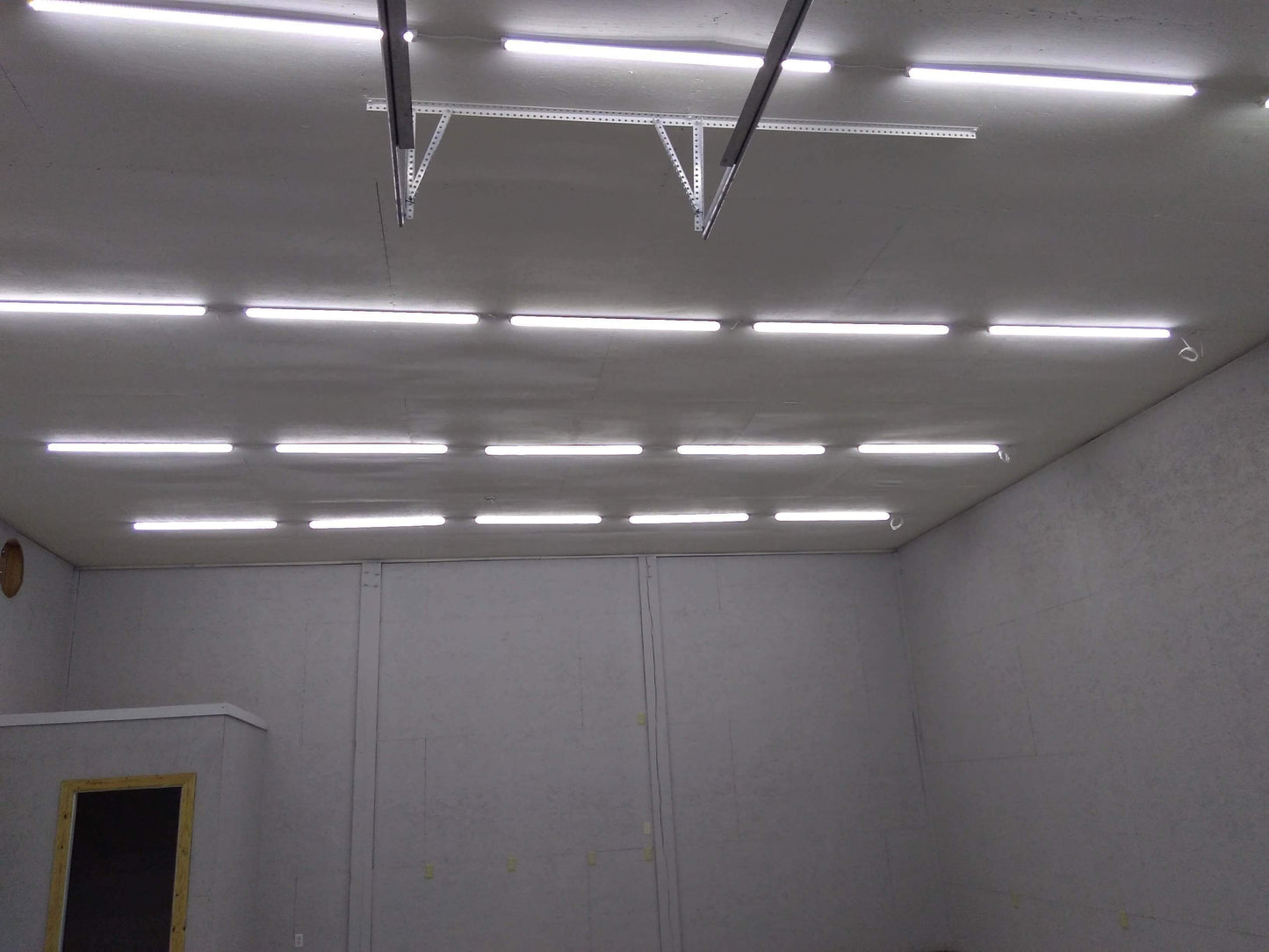

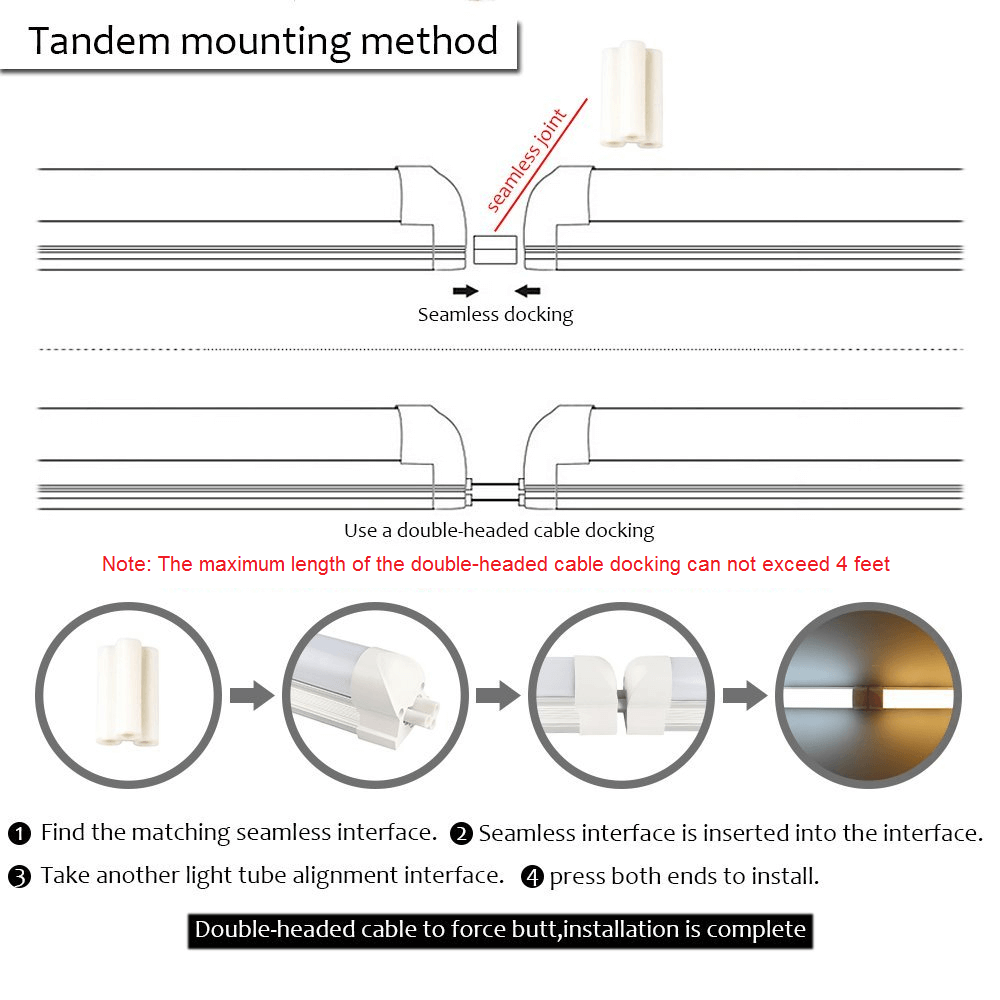

- Easy to install, offering end to end, continuous run installation, up to 6 in the run.

Specifications:

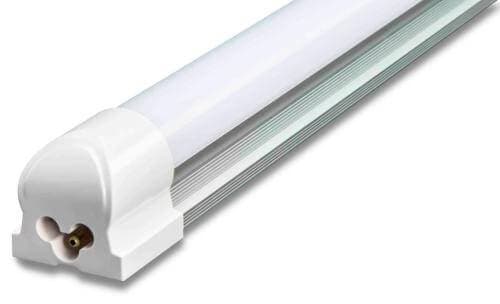

T8 Integrated With Mounting Hardware
1 Foot 10 Watt 1,300 Lumens
2 Foot 20 Watt 2,600 Lumens
3 Foot 28 Watt 3,640 Lumens
4 Foot 36 Watt 4,680 Lumens
5 Foot 45 Watt 5,850 Lumens
6 Foot 56 Watt 7,280 Lumens

• Cree LED's
• FROSTED COVER

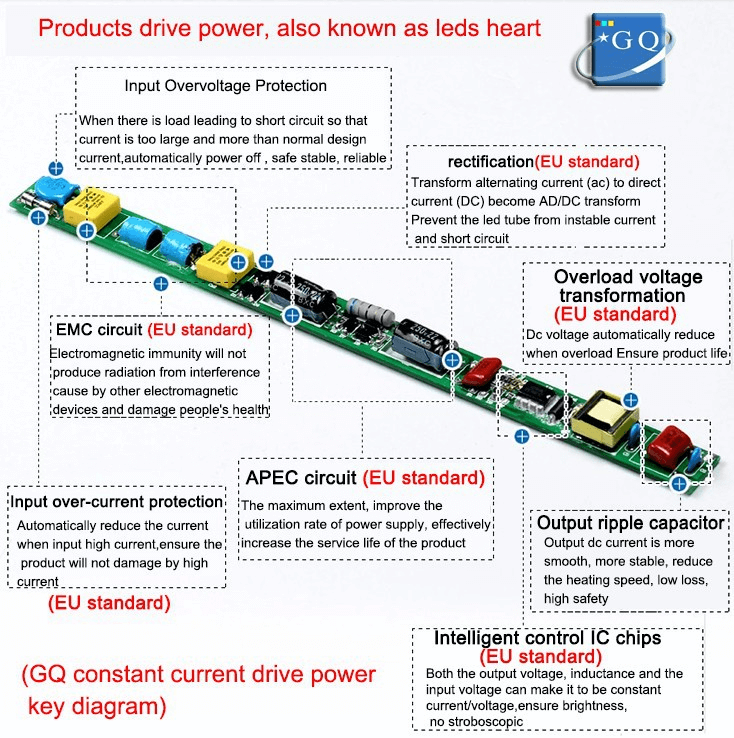

• 85-265V Constant Current Grounded Driver
• 130 Lumens Per Watt (FROSTED LENS) - High Efficacy System with Superior Driver Technology

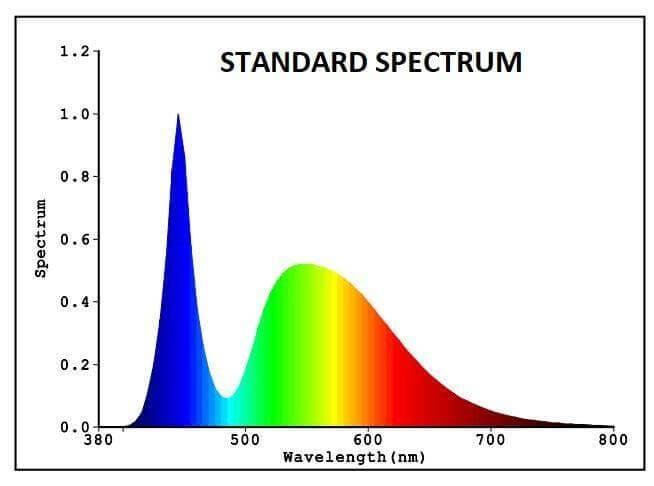

• 5500-6500K (WHITE) is standard, other Kelvin available by special order (Case)

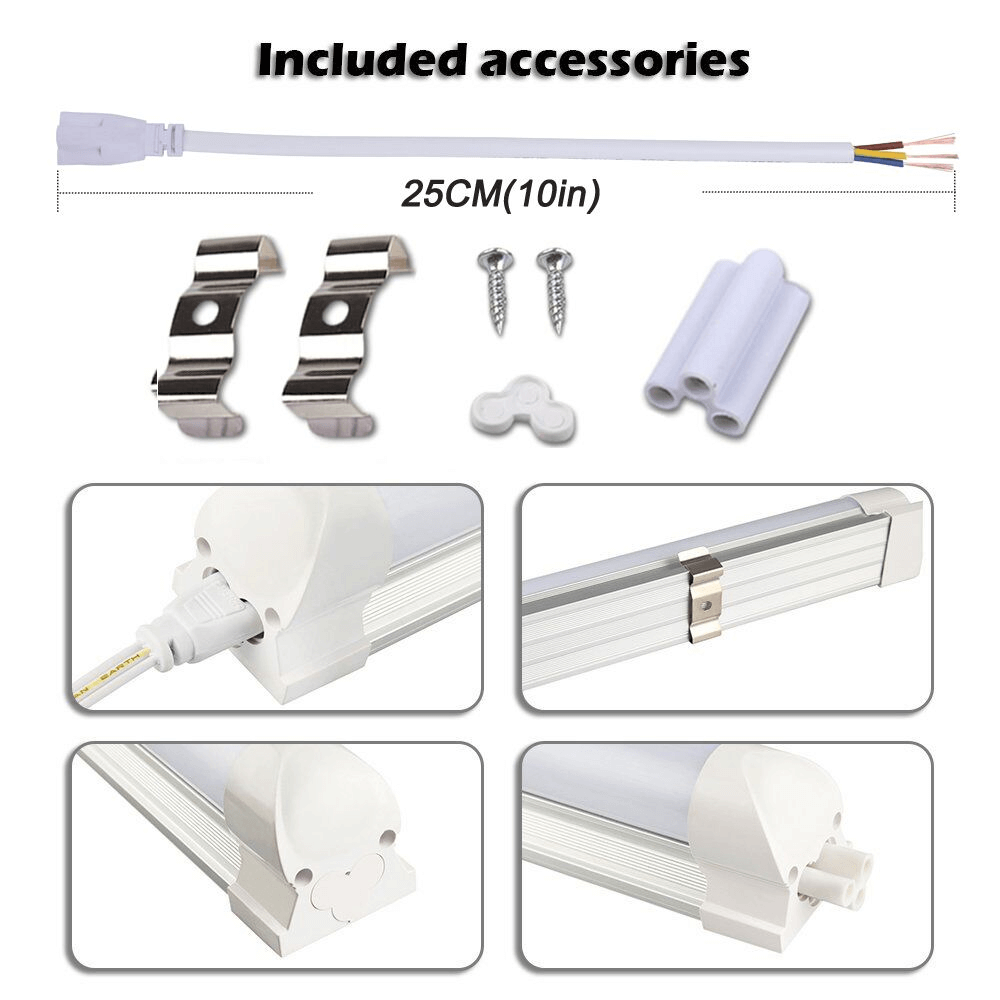

• Stainless Steel Mounting Hardware Included
• Direct Wire Cord (Whip)

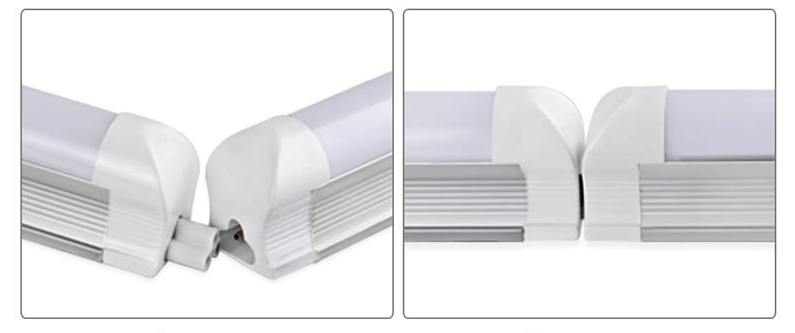

• AC Linking Plug for Daisy Chaining  (1-6.5 Foot Linking Cords Available look in our accessories section)
• Socket Cap
• Industrial/Commercial Grade
• Interlinking for continuous runs of up to 4 (5,6,8') - 6 (2,3,4') units
• 85+ CRI
• Instant Start In Cold Conditions
• No Flicker or Hum
• Aluminum/Polycarbonate Construction
• 12 Year Simple Exchange Warranty based on LM79 Rated 80,000 Hours

SPECIFICATION SHEETS

DRIVER SPECIFICATIONS

WARRANTY STATEMENT

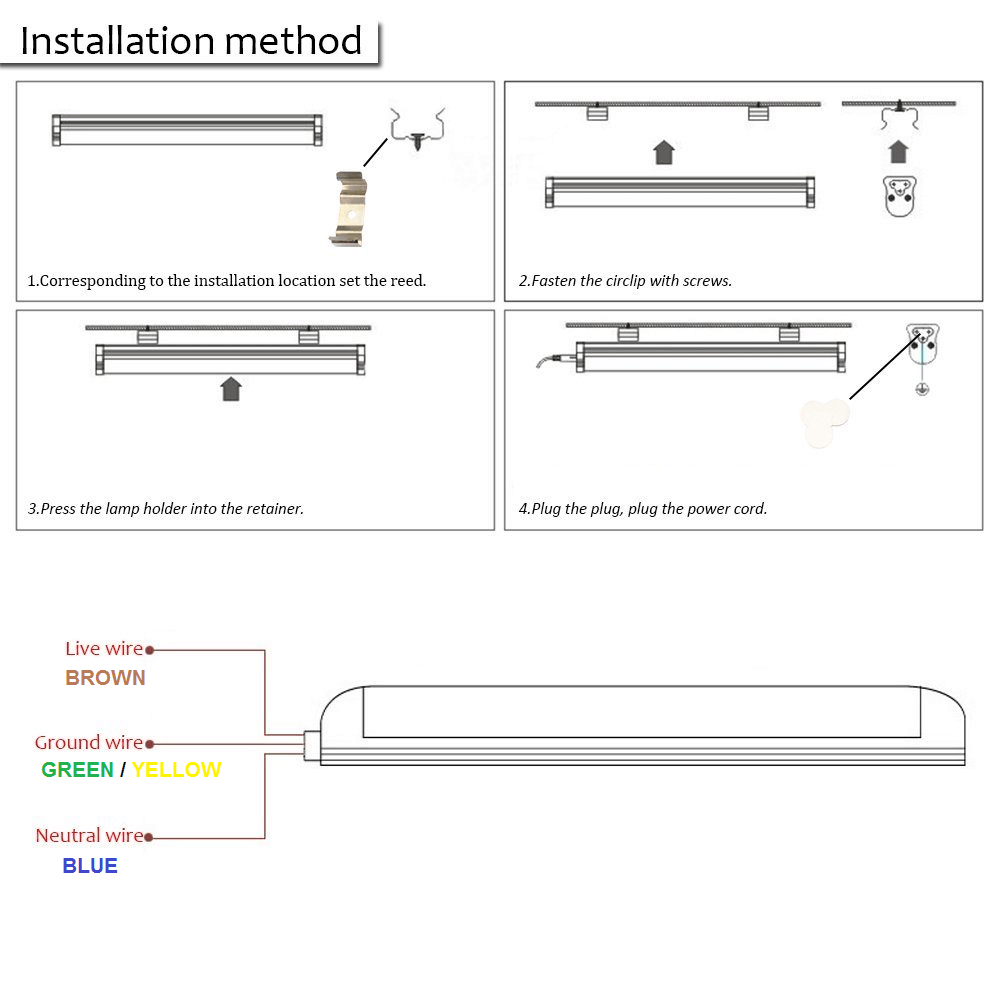

WIRE COLOR CODE FOR INSTALLATION
