(CASE OF 25) Linkable LED T8 8ft 72w 10,944 Lumen CLEAR LENS (NO RF) V-Series w/Mounting Hardware

SHIPPING INCLUDED

PRODUCT VIDEO

NO RF DRIVER EMI TEST REPORT

SPECIFICATION SHEET

ACCESSORIES AVAILABLE

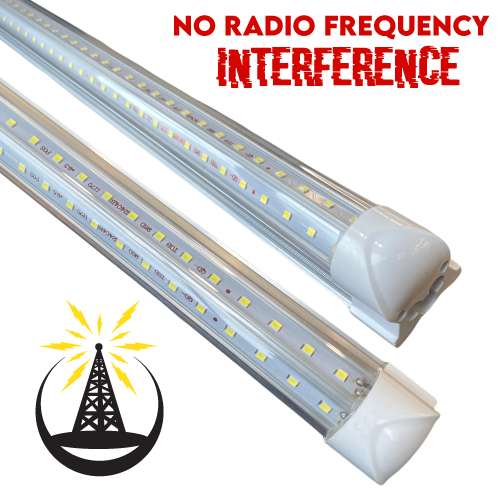

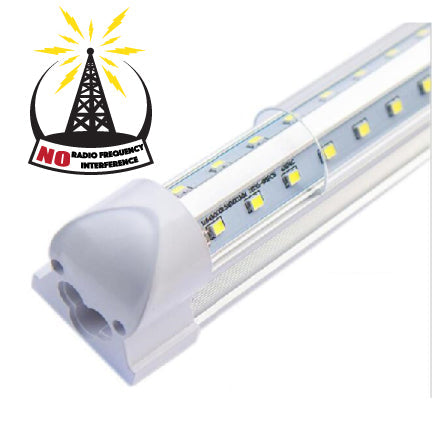

NO RF SERIES -- This product has a RF filtering system within the driver in each unit.  RF interference is a fairly common problem in high output linear lighting, due to "RF Noise" in the AC line feeding the light.  This problem creates "static" in radio reception as well as garage opener remote control performance issue.



- - These lights are very bright, using a fraction of the wattage that low end LED products use.

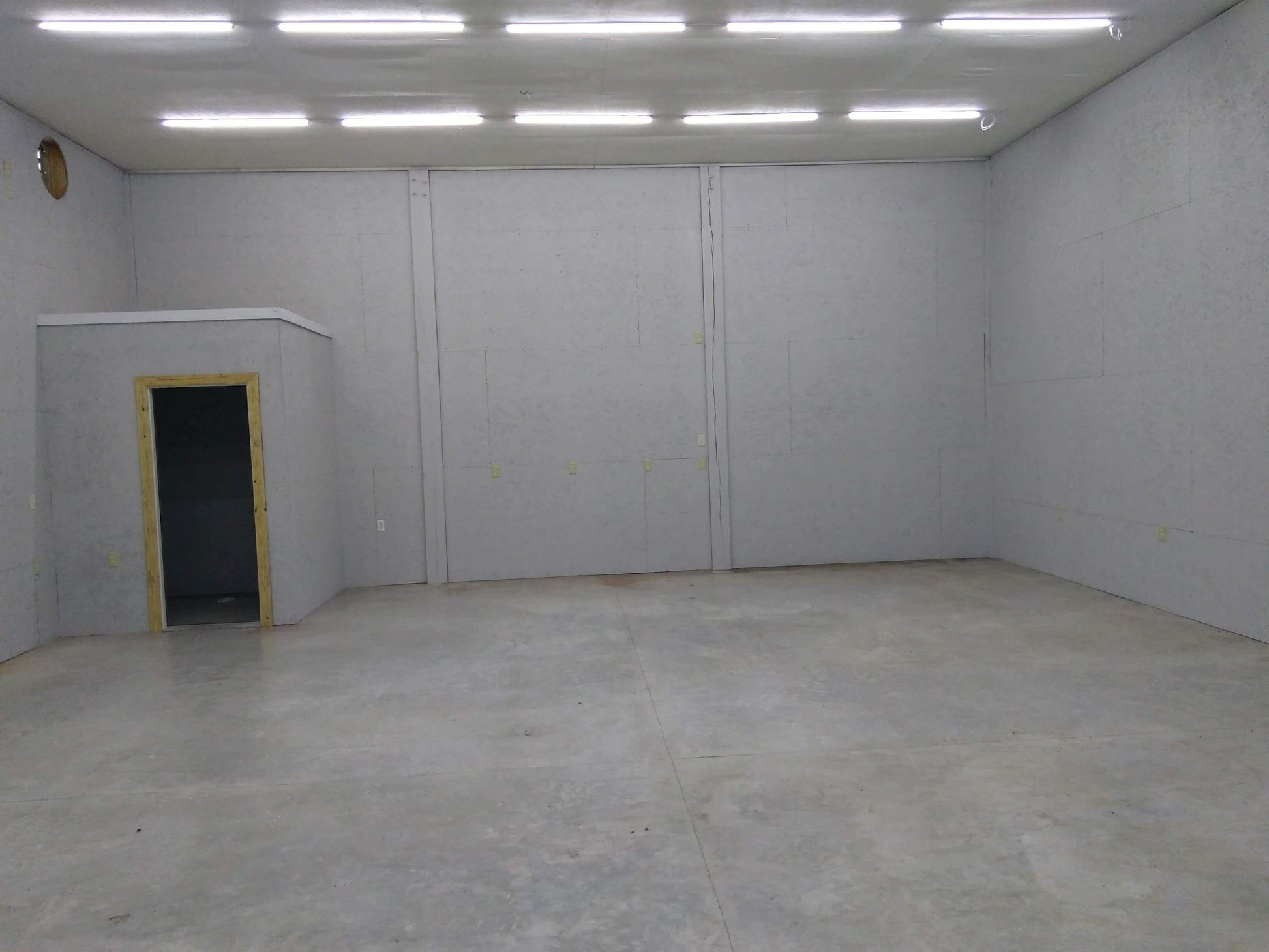

- Designed for lighting in continuous rows (See Lighting Chart), for less than Retail/Production Level Lighting, space between lamps (Link Cords from 1'-6.5' in the Lighting Accessories Section)

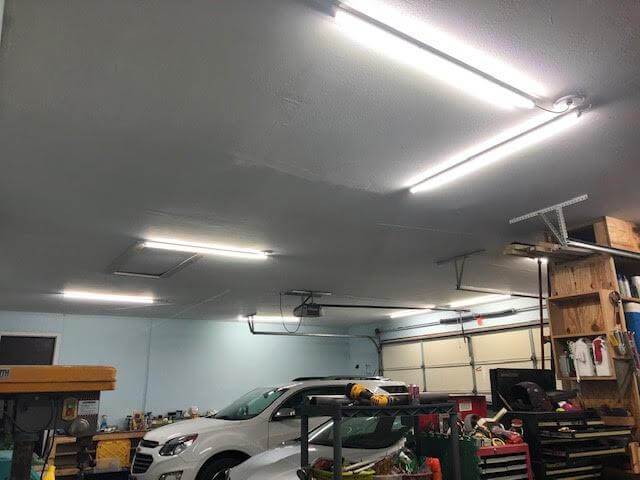

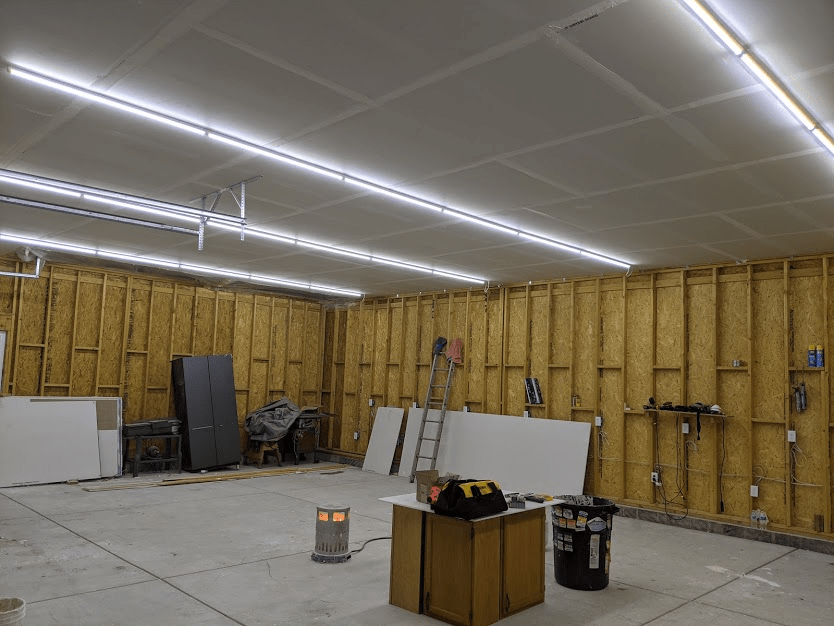

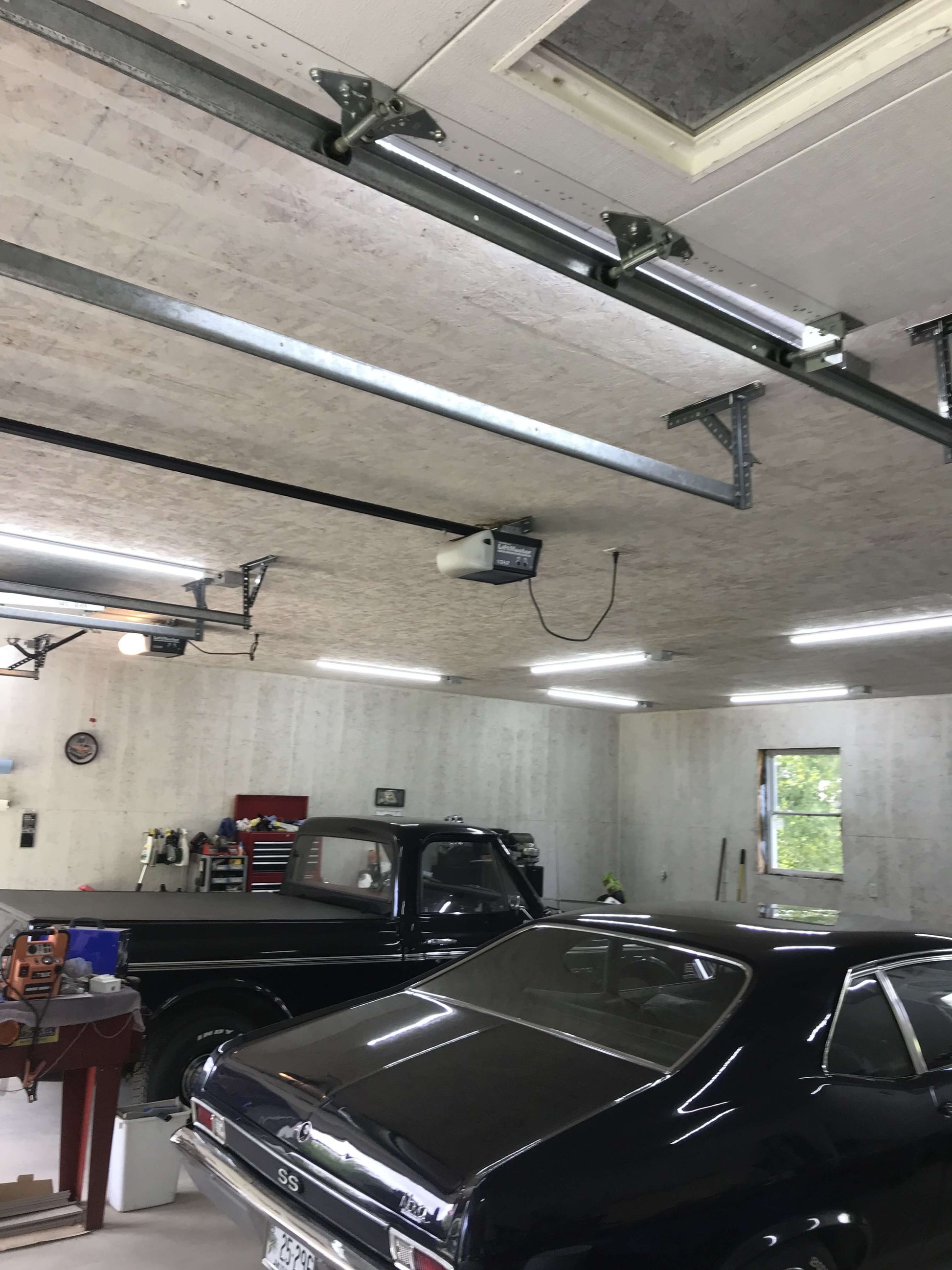

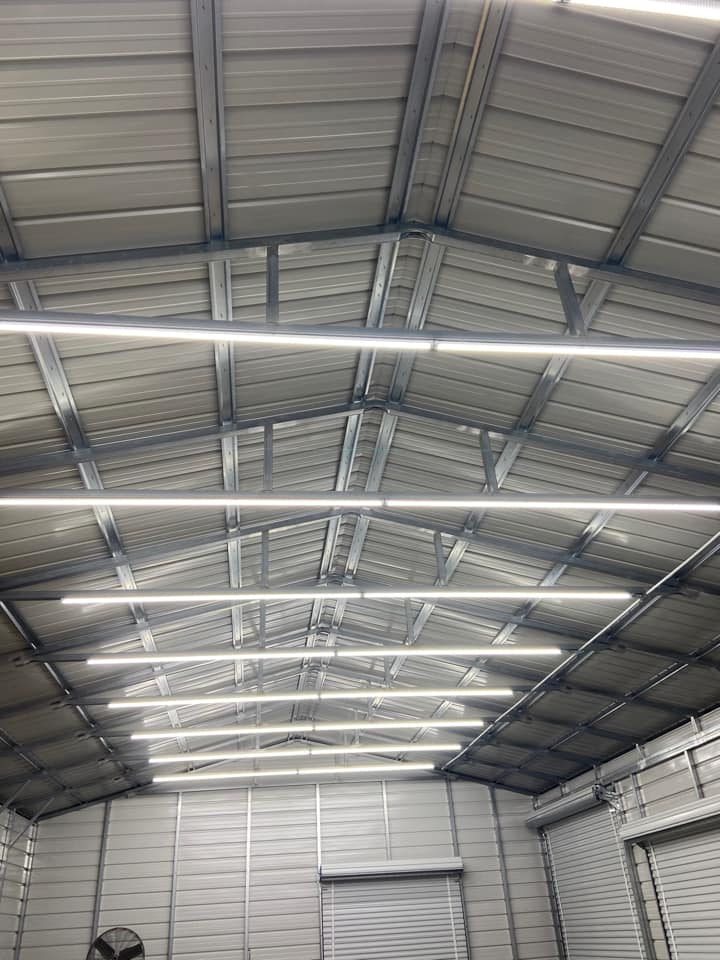

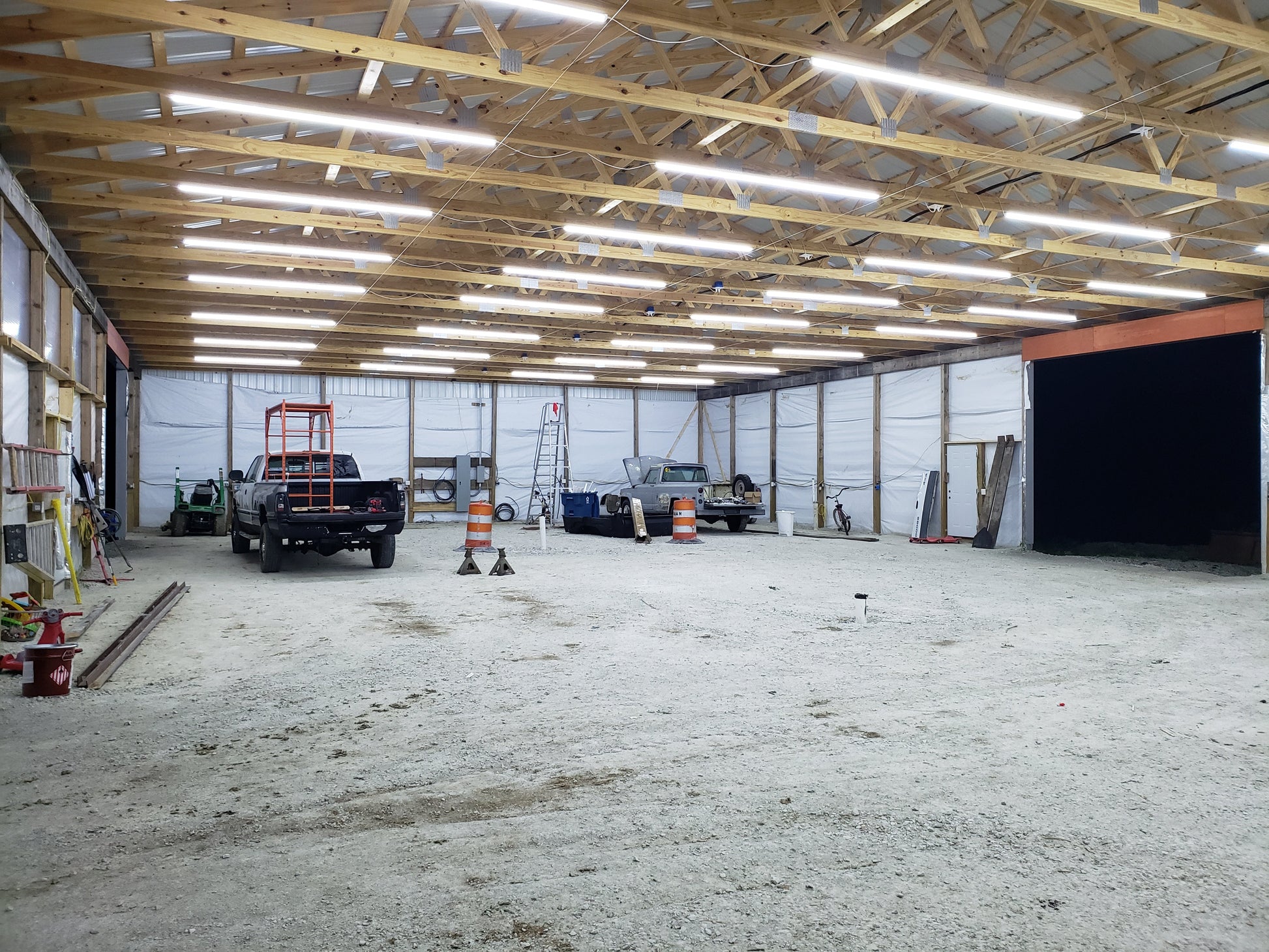

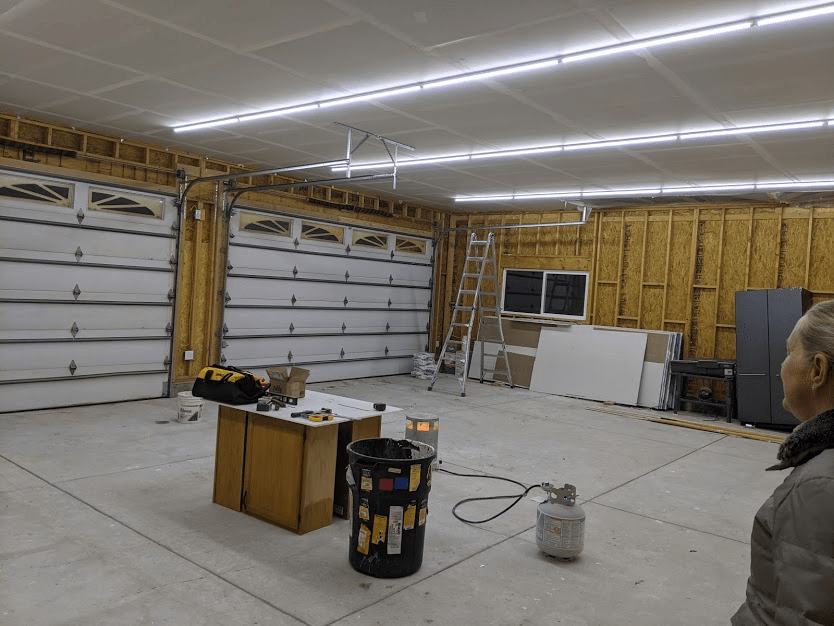

- They work great in cold conditions, like coolers, meat prep, garages, pole barns, etc.

- The New innovative design includes Stainless Steel Mounting Hardware, looks and performs as a high end, commercial/industrial LED product should in work shops, utility sheds, utility and laundry rooms, etc.

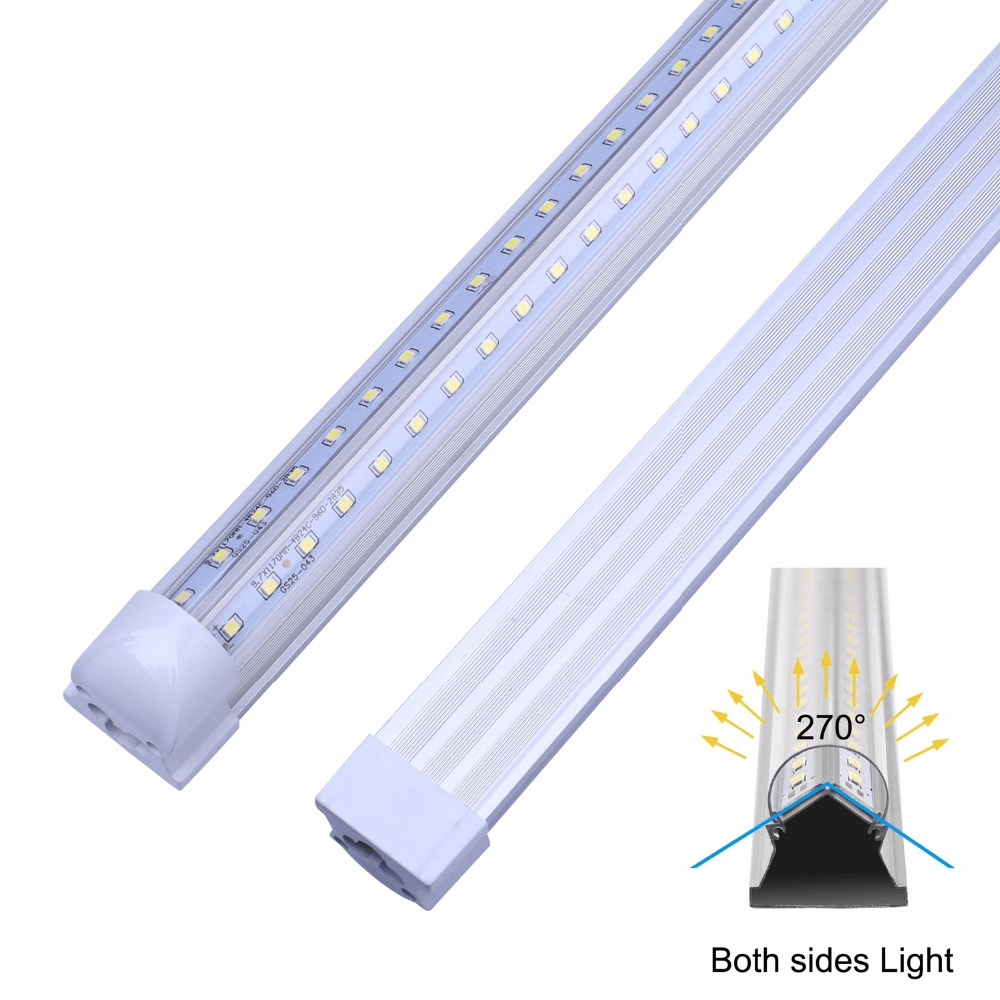

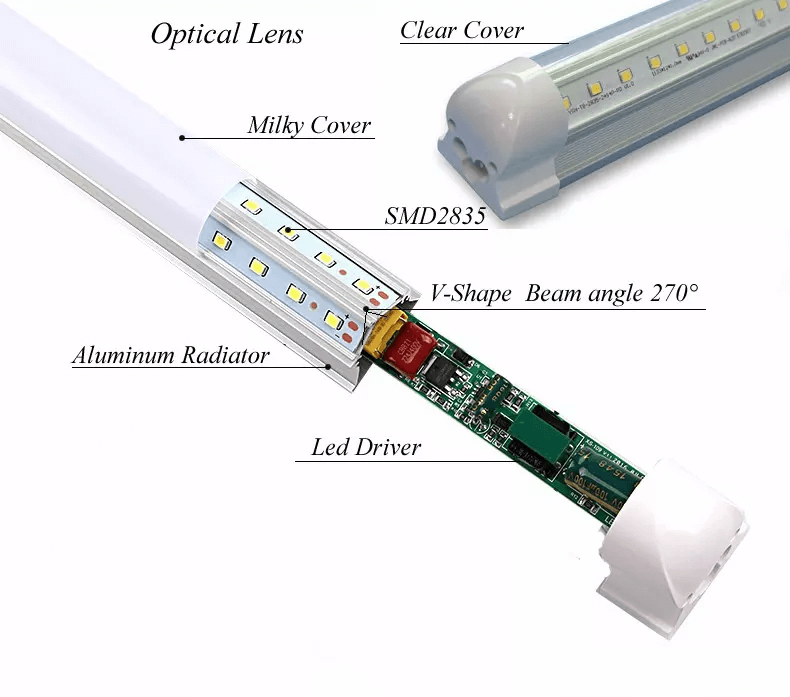

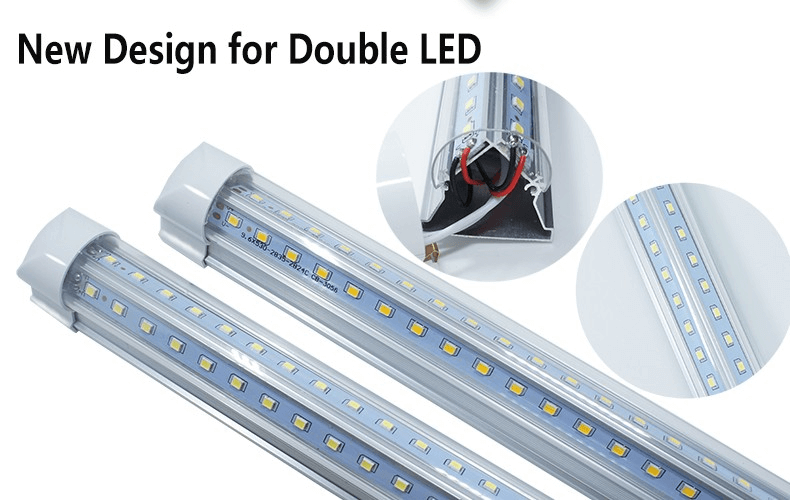

- Our V-Profile Series lights provide excellent 270 Degree lumen projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems using 2 HO lamps.

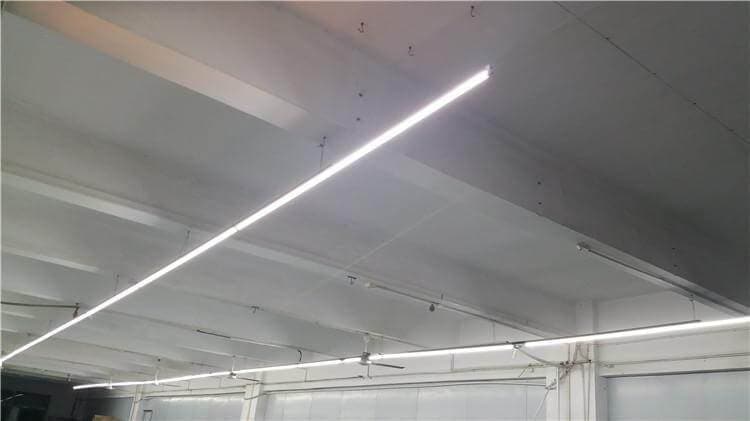

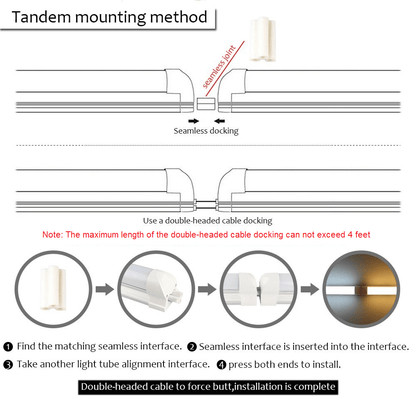

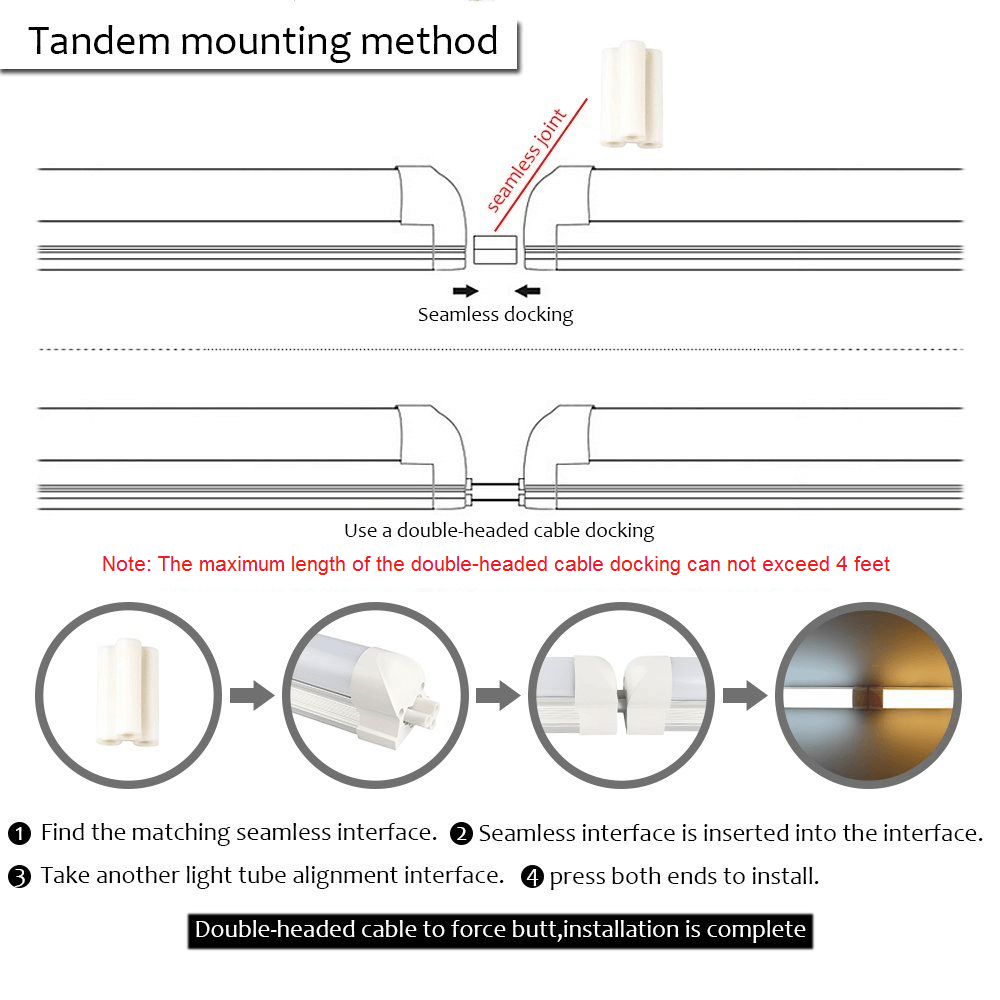

- Easy to install, offering end to end, continuous run installation, up to 4 in the run.

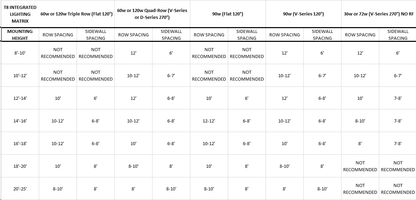

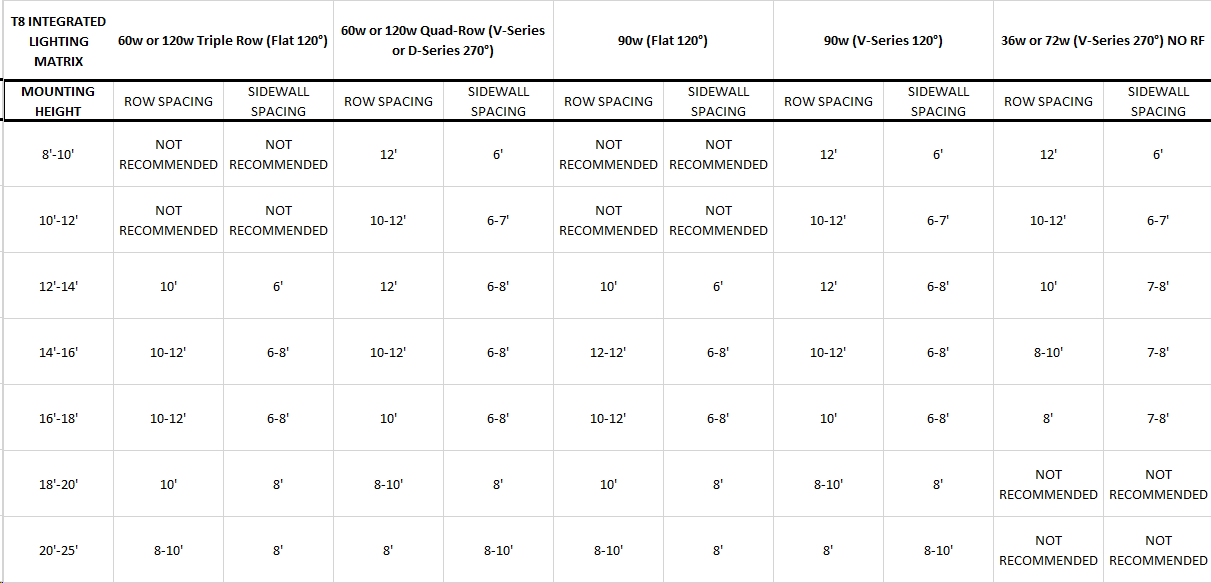

LIGHTING CHART- MATRIX - LIGHTING RECOMMENDATION

 *MAXIMUM OF 4 UNITS LINKED TOGETHER

We recommend 8 or more Lumens Per Cubic Foot for efficient lighting.

Length x Width x Height x 8 = Minimum recommended Lumens

** Divide that total lumen by the lamp of your choice lumen output, and this will give you your lamp count needed for that product in your area +-5%

EXAMPLE: 40'W x 60'L x 12'H = 28,800 cu. ft. x 8 = 230,400 Divided by (72w 8' V-Series 10,944 lumens) 21.05 lamps - Our contractors typically use 3 rows of 7 in this space running one down the center, and the 2 outside rows 8' off the side walls.

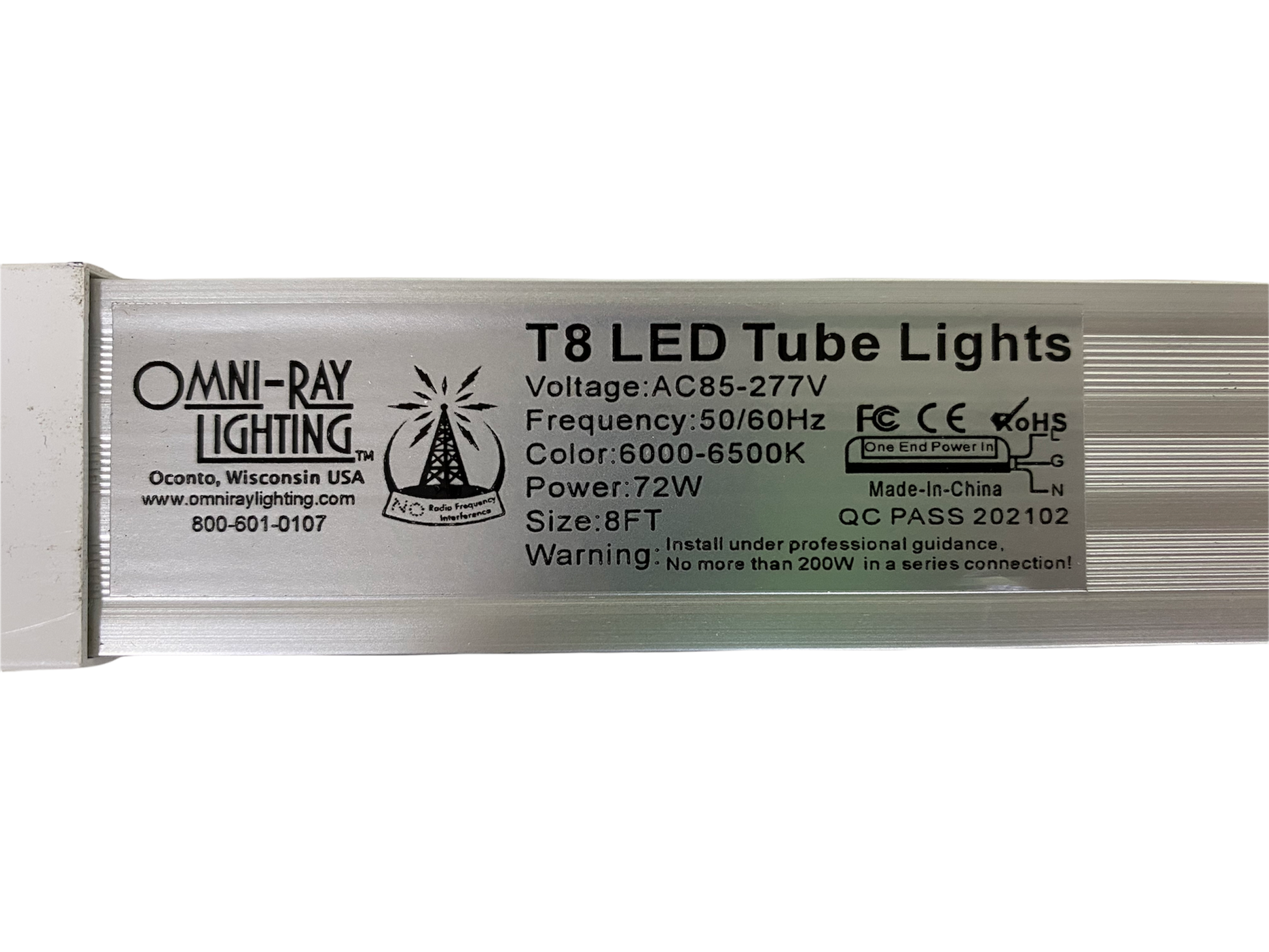

Specifications:

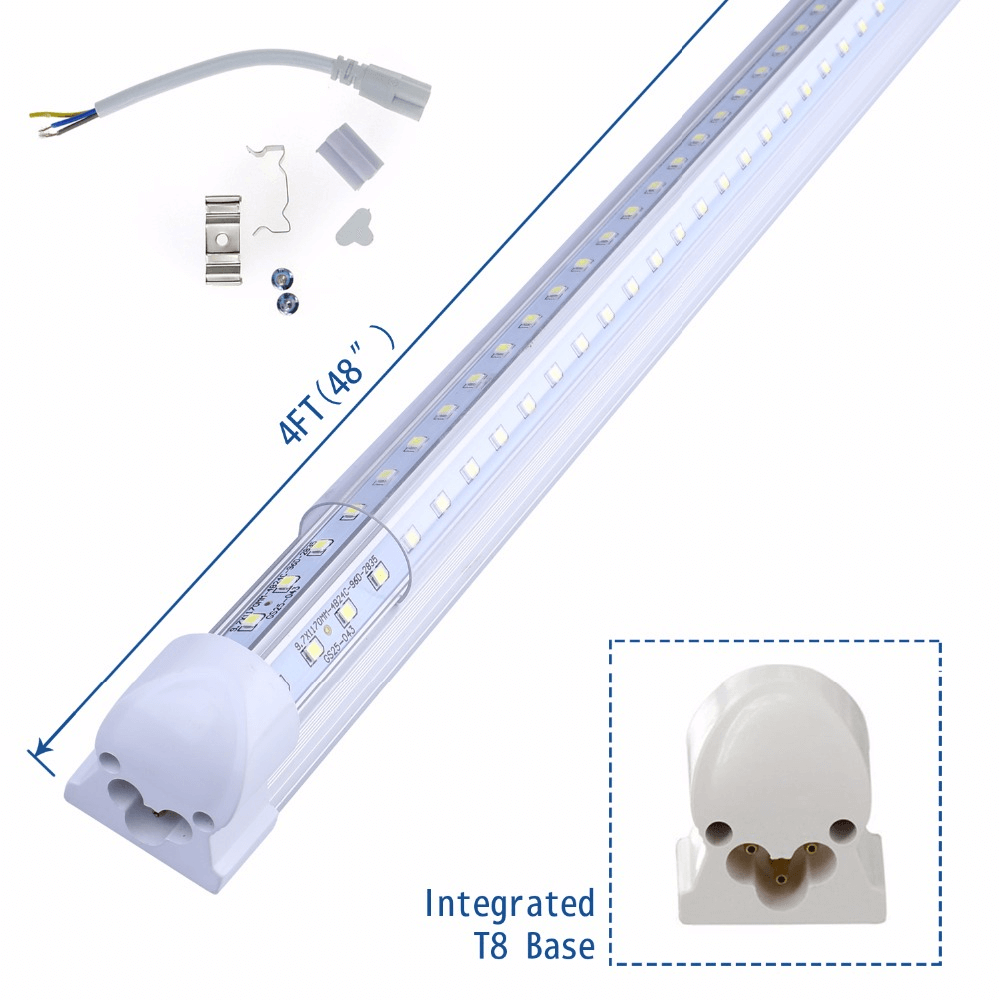

-T8 Integrated With Mounting Hardware

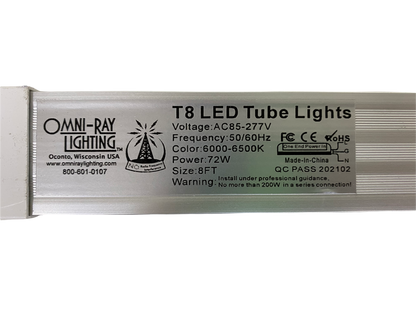

- 8 Foot 72 Watt 10,944 Lumens
- Cree LED's
- CLEAR COVER
- 85-265V Constant Current Grounded Driver
- 152 Lumens Per Watt - High Efficacy System with Superior Driver Technology

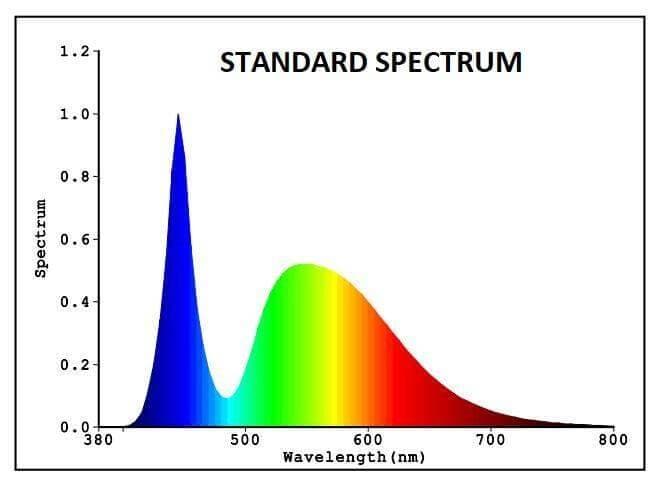

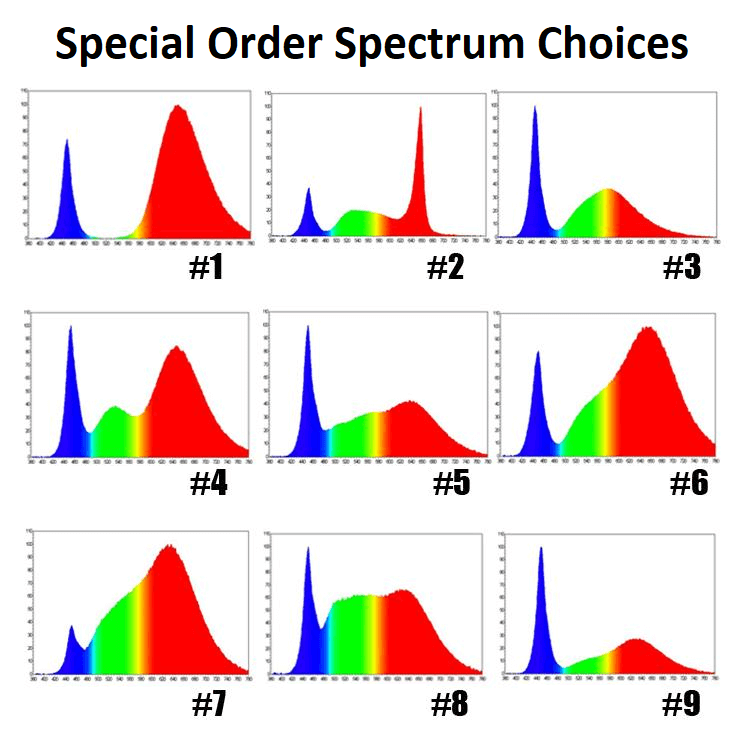

- 5500-6500K (WHITE) is standard, other Kelvin available by special order

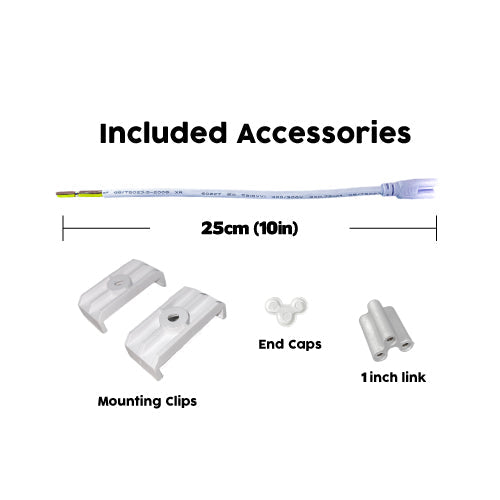

- Stainless Steel Mounting Hardware Included
- Direct Wire Cord (Whip)

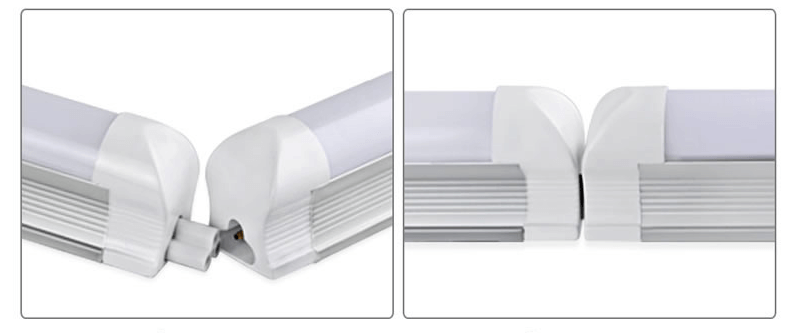

- Linking Plug for Daisy Chaining up to 4 Units (1-6.5 Foot Linking Cords Available look in our accessories section, 3-Prong Cords also available)
- Socket Cap
- Industrial/Commercial Grade
- Interlinking for continuous runs of up to 4 (5,6,8') - 6 (2,3,4') units
- 85+ CRI
- Instant Start In Cold Conditions
- No Flicker or Hum
- Aluminum/Polycarbonate Construction
- 12 Year Warranty

SPECIFICATION SHEETS

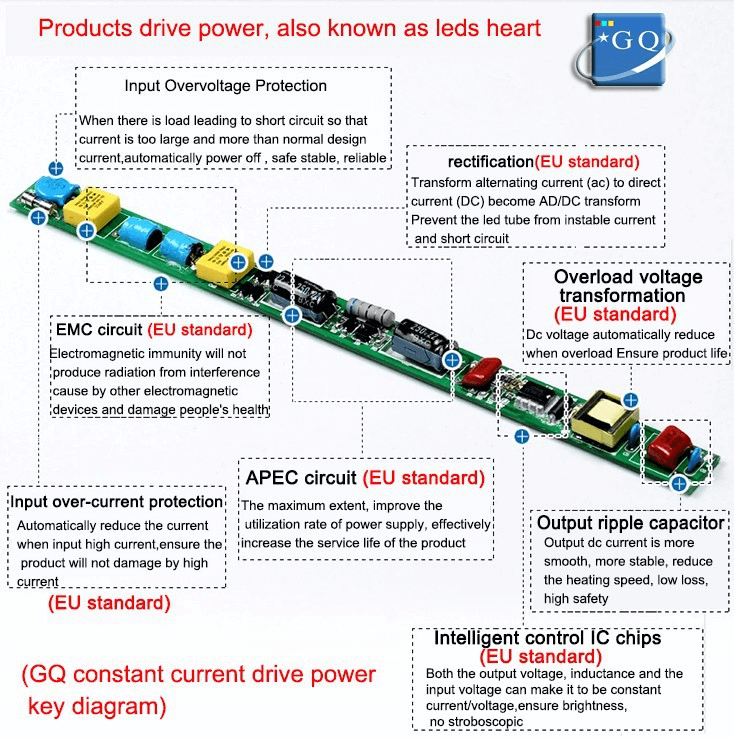

DRIVER SPECIFICATIONS

WARRANTY STATEMENT

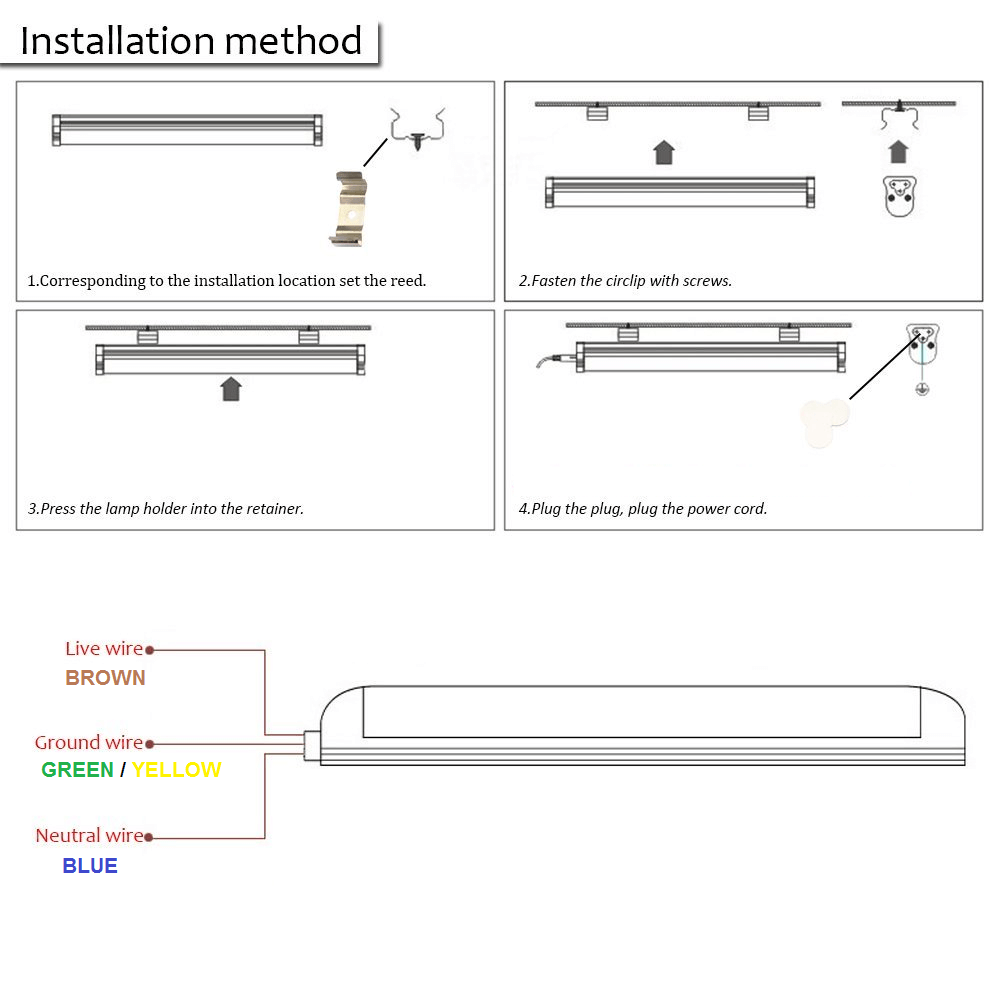

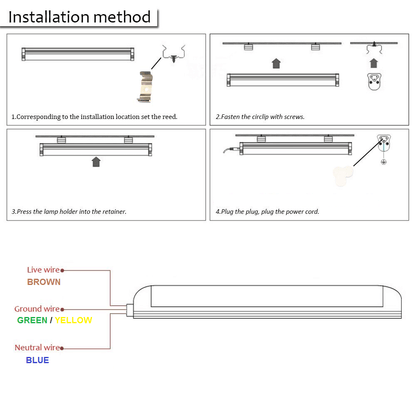

WIRE COLOR CODE FOR INSTALLATION
