R17d 2-Sided Sign Cabinet HO Rotating Ends Replacement Lamps 7ft CLEAR LENS

 - FOR CUSTOM QUANTITIES NEEDED, CALL FOR A PRICE QUOTE  800-601-0107

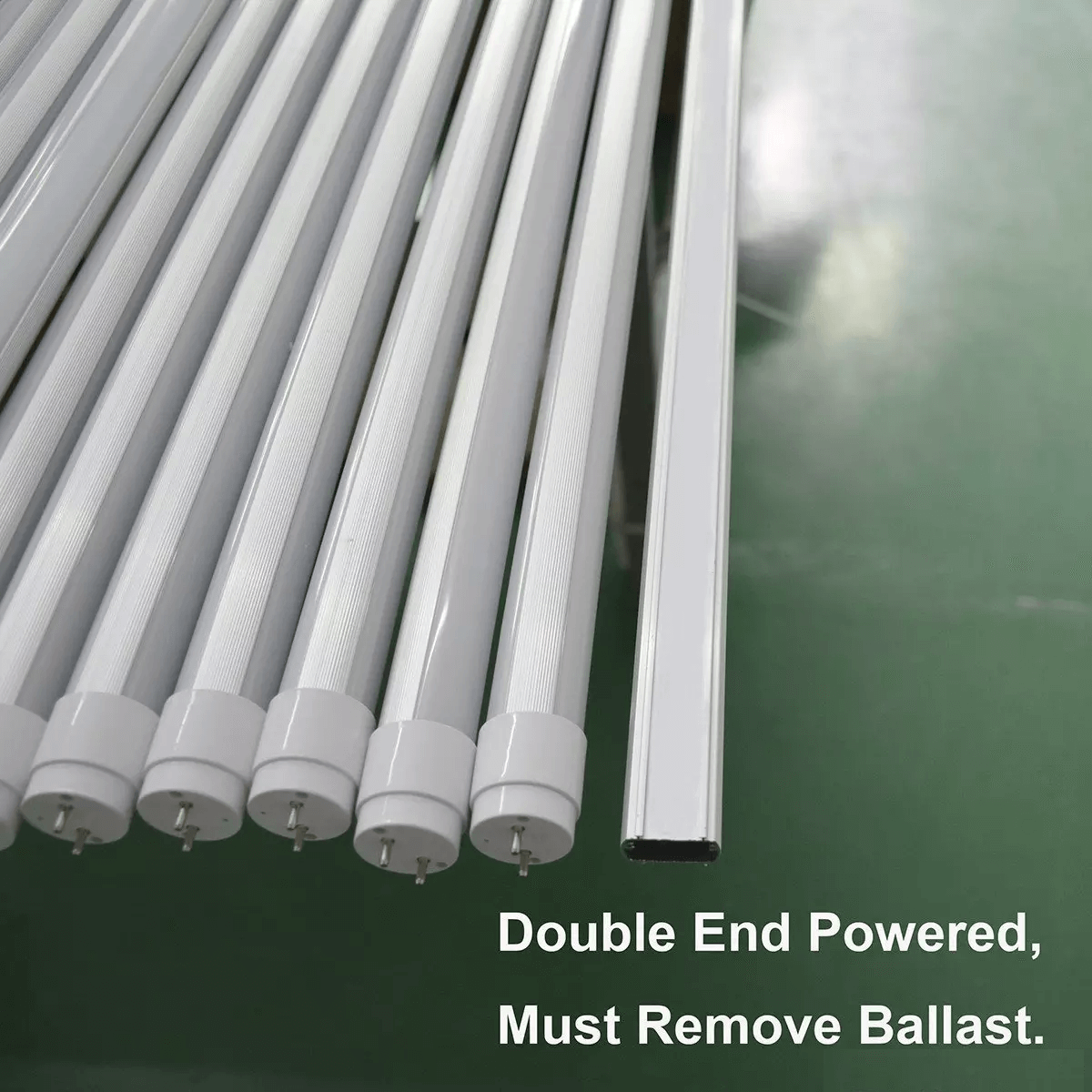

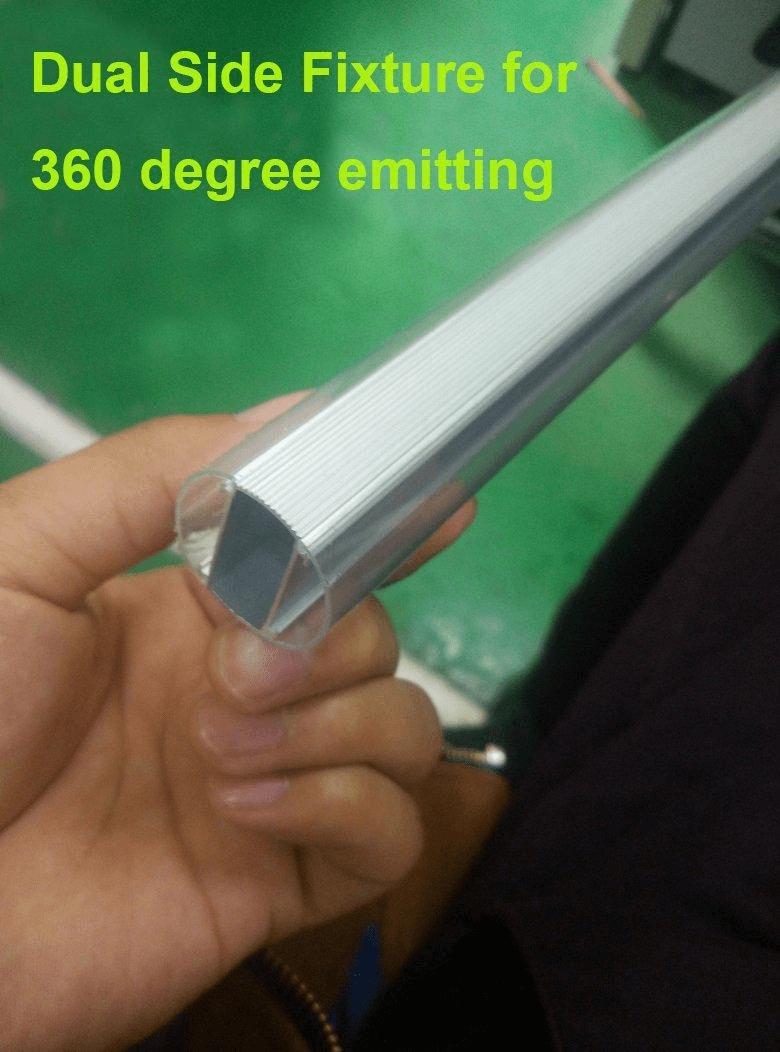

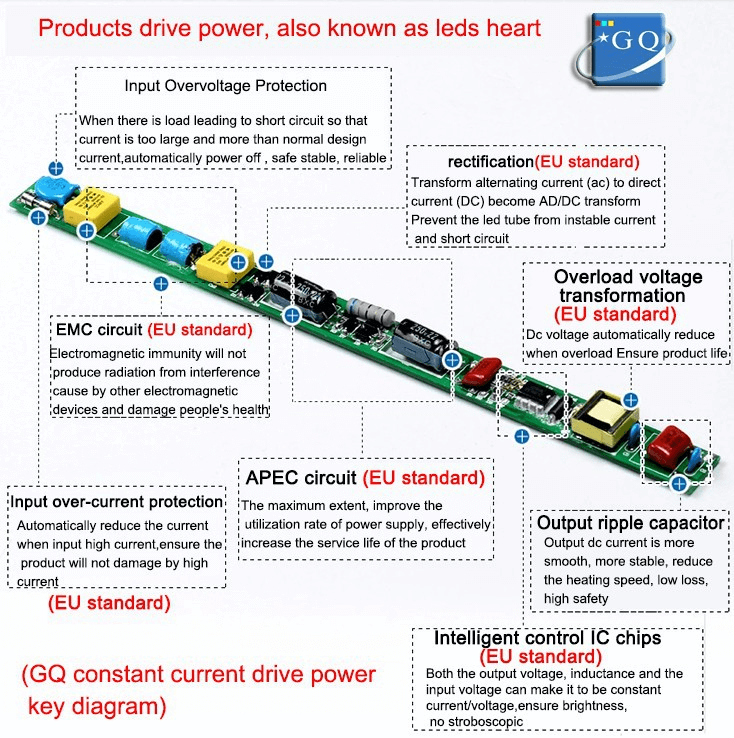

These 2 Sided 360 degree LED Tubes are designed for 1 sided or 2 sided Sign Cabinet lamp replacement.  These lamps bypass the ballast, saving even more energy, and provide instant on in cold conditions.  Each LED is powered independently, using our robust 85-277v Constant Current Integrated Driver.

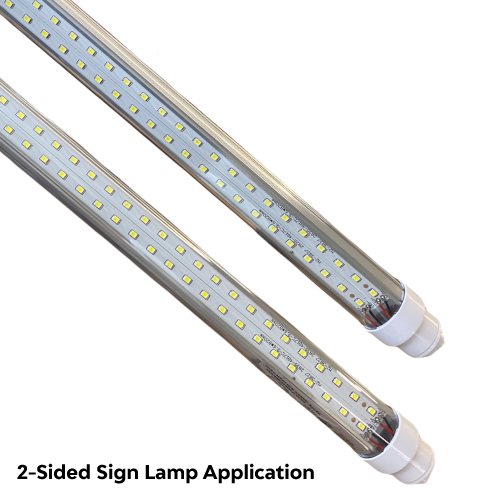

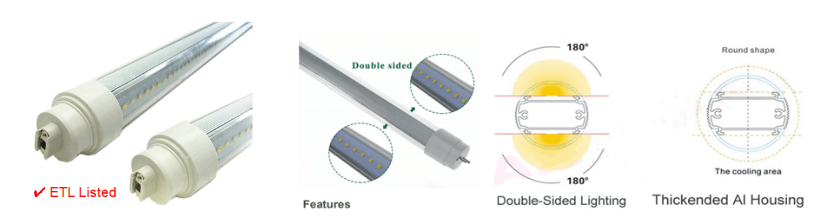

NEW 2-Row LED on each side for superior light distribution over other brands

** If you are not a contractor, and require less than the minimum quantity, just call 800-601-0107, and our associates will quote a shipped price based on your quantity

• Type:T8
• Power: Check below chart

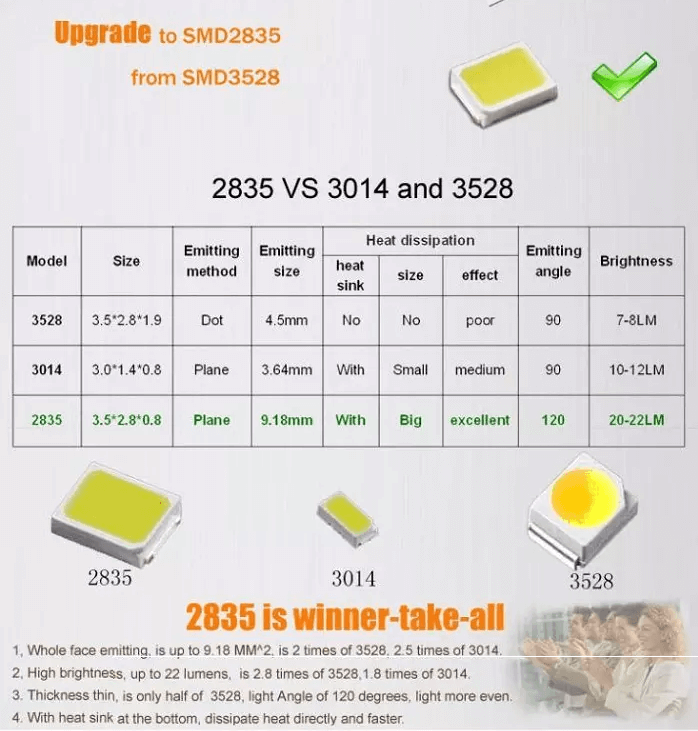

• LED Chip: Cree 2835SMD
• Length: 2',3',4',5',6',7',8',9'
• No Ballast, Direct Wire System
• Certification: CE FCC VDE GS SAA RoHS CQC PSE LVD EMC
• Color Temperature: White(5500-6500K)

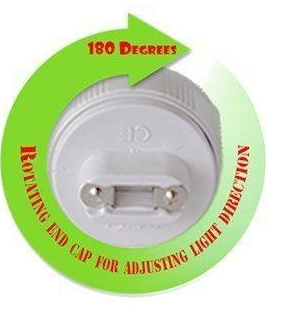

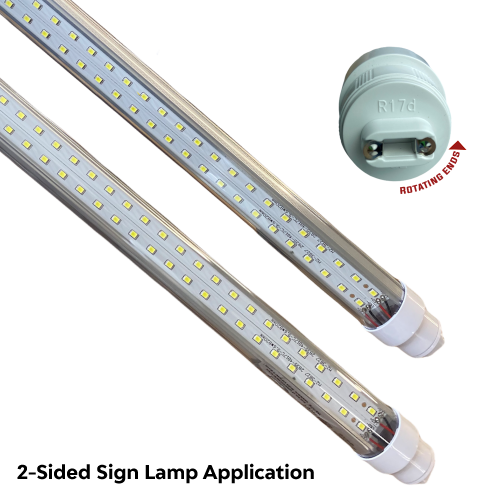

• Base: R17D/Rotating Ends
• Warranty: 8 years
• Average Life (hrs): 80000H
• Lumens: 130lm/w Clear Lens
• IP rate: IP54
• Polycarbonate Lens: Clear
• Aluminum Base
• Voltage: AC 85-265V

** Because HO lamps may vary in length, please verify length before ordering

  Option       Lumens   LED Chips      Voltage      Lifespan       Tip to Tip Length

2ft      18w      2,430LM    SMD2835     AC85-265V   >80,000H          55cm

3ft      28w      3,780LM    SMD2835     AC85-265V   >80,000H          86cm

4ft      36w      4,860LM    SMD2835     AC85-265V   >80,000H          116cm

5ft      45w      6,075LM    SMD2835     AC85-265V   >80,000H          147cm

6ft      56w      7,560LM    SMD2835     AC85-265V   >80,000H          177cm

7ft      64w      8,640LM    SMD2835     AC85-265V   >80,000H          207cm

8ft      72w      9,720LM    SMD2835     AC85-265V   >80,000H          237cm

9ft      81w     10,935LM    SMD2835     AC85-265V   >80,000H         268cm
