SPECIFICATION SHEET
FREE SHIPPING

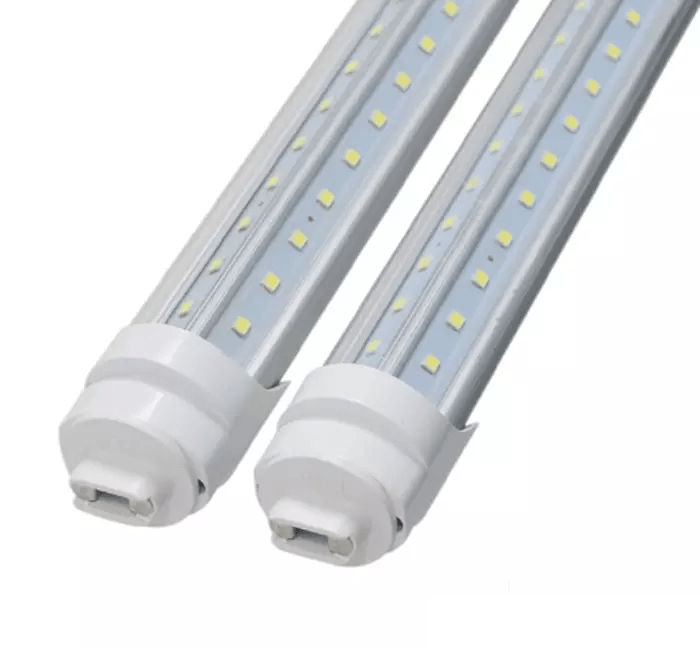

' R17d Swivel Ends Replacement Lamp (measures 57.87 inches tip to tip)

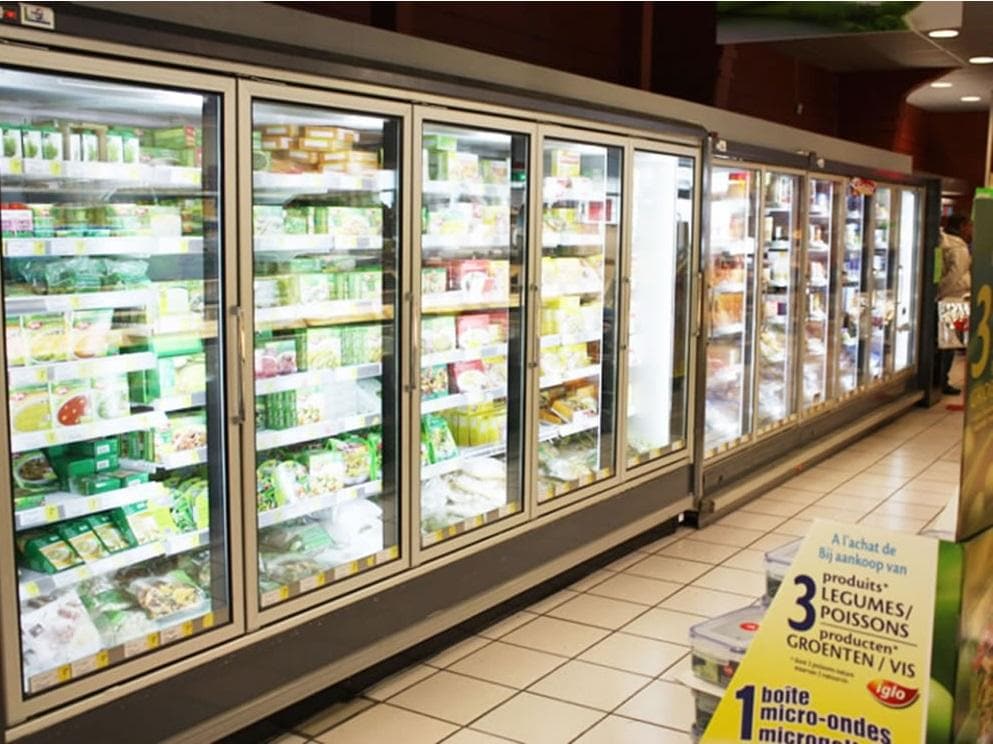

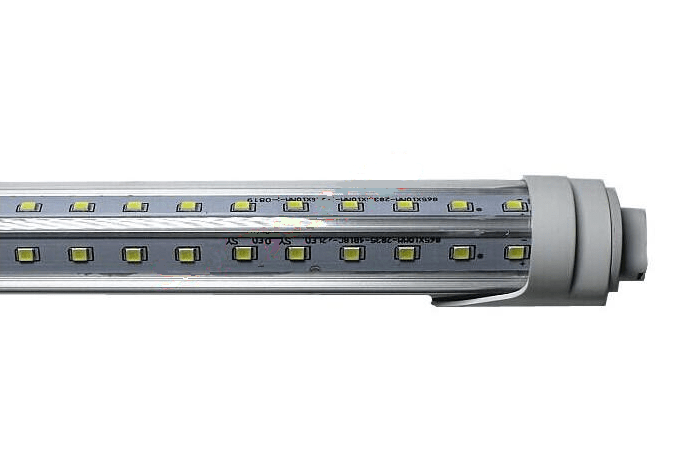

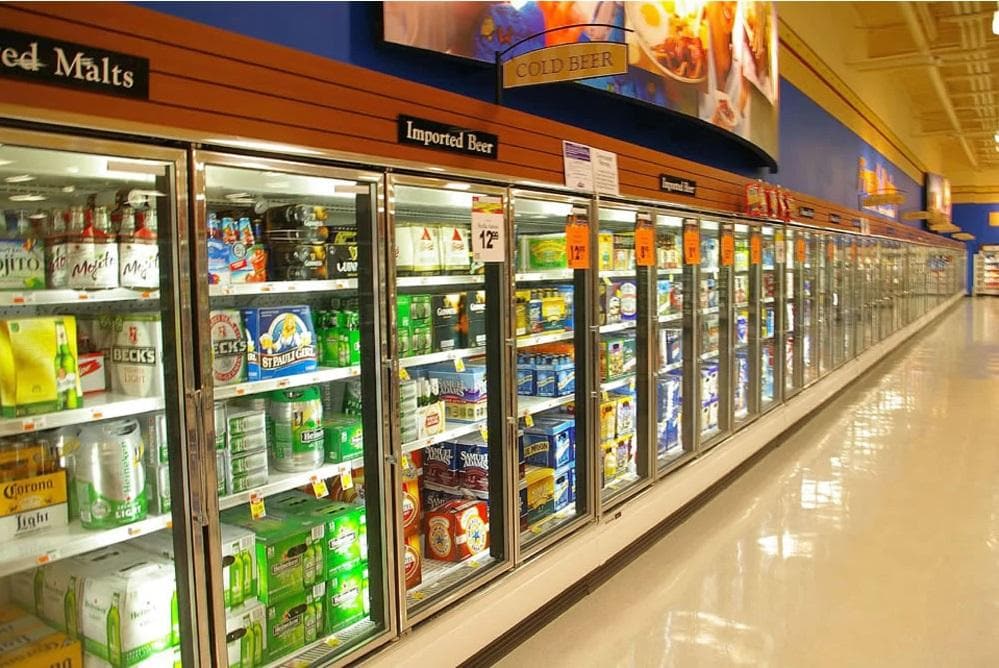

2 rows of LED's mounted on a 270° V-Pattern, so when mounted on the door rail of reach-in coolers in place of fluorescent lamps, the light will throw to the left and right to light the product much better than fluorescent systems, at a much lower energy cost.

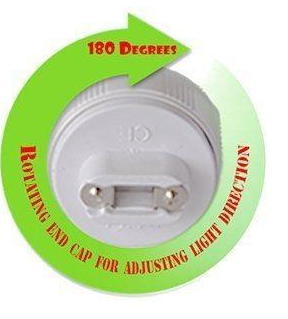

Each lamp uses existing R17d Tombstone's and the ends swivel, so they are adjustable to any brand of R17d Tombstone (Socket)
Direct Wire Ballast By-Pass, 2 end AC hookup, just power one socket to Black (Hot) and the other to White (Neutral) - no more ballast issues or energy consumption
- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.
- Looks and performs as a high end, Commercial/Industrial LED product should. Use in Reach-In Coolers, work shops, utility sheds, utility and laundry rooms, etc.
- Our Dual-Row V-Series lights provide excellent 270 degree Lumen Projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems.
- Easy to install R17d Dual-Contact Pin mount, Direct Wire Ballast By-Pass installation.
Specifications:
- T8 5 Foot R17d Pin Mount
- 48 Watt
- Ballast By-Pass, 2 End AC Installation (See Picture)

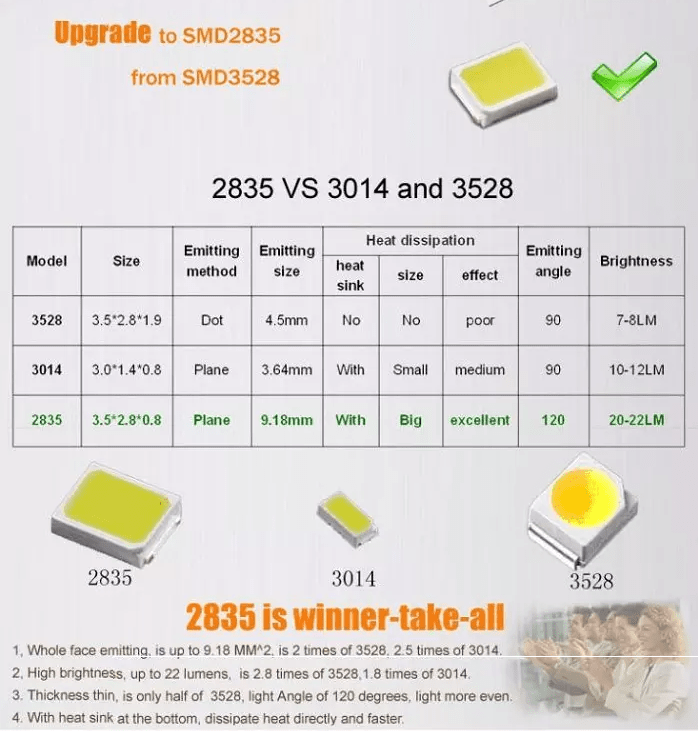

- Cree LED's
- 7,296 Lumens Clear Cover
- CLEAR COVER
- 85-277V Driver
- 152 Lumens Per Watt - High Efficacy System with Superior Driver Technology

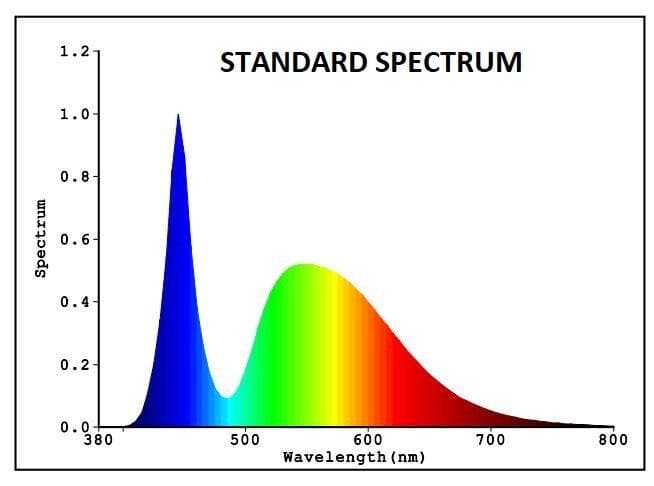

- 5500-6000K White is standard, other Kelvin may be available by special order
- Certification: CE FCC VDE GS SAA RoHS CQC PSE LVD EMC
- Industrial/Commercial Grade
- 150 watt Fluorescent Equivalent
- 85+ CRI
- Instant Start In Cold Conditions
- No Flicker or Hum
- Aluminum/Polycarbonate Construction
- 12 Year Warranty based on LM79 Rated 80,000 Hours

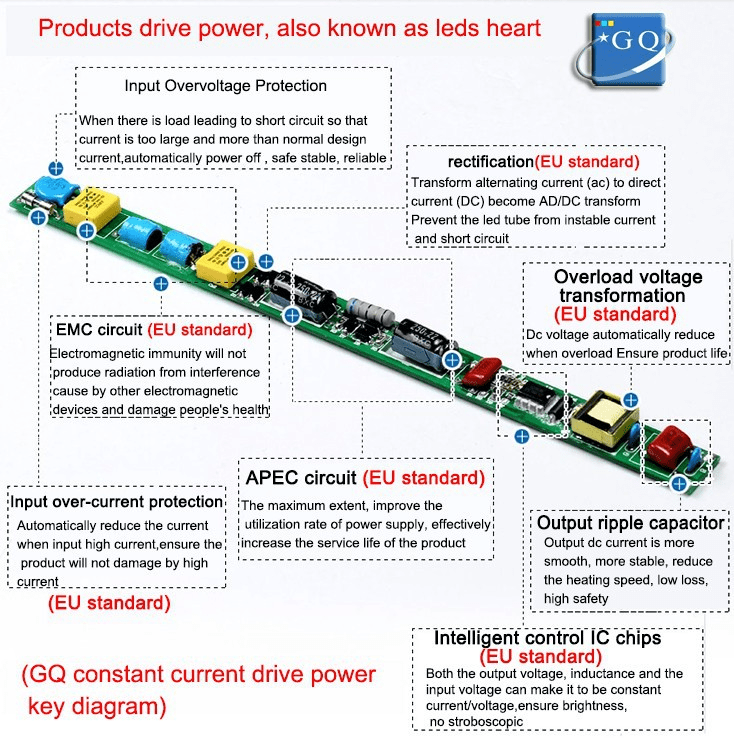

DRIVER SPECIFICATIONS
WARRANTY STATEMENT
WIRE COLOR CODE FOR INSTALLATION
