(10-PACK) Linkable LED T8 4ft 36w 4,377 Lumen FROSTED LENS (NO RF) V-Series w/Mounting Hardware

SHIPPING INCLUDED

PRODUCT VIDEO

 NO RF DRIVER EMI TEST REPORT

SPECIFICATION SHEET

ACCESSORIES AVAILABLE

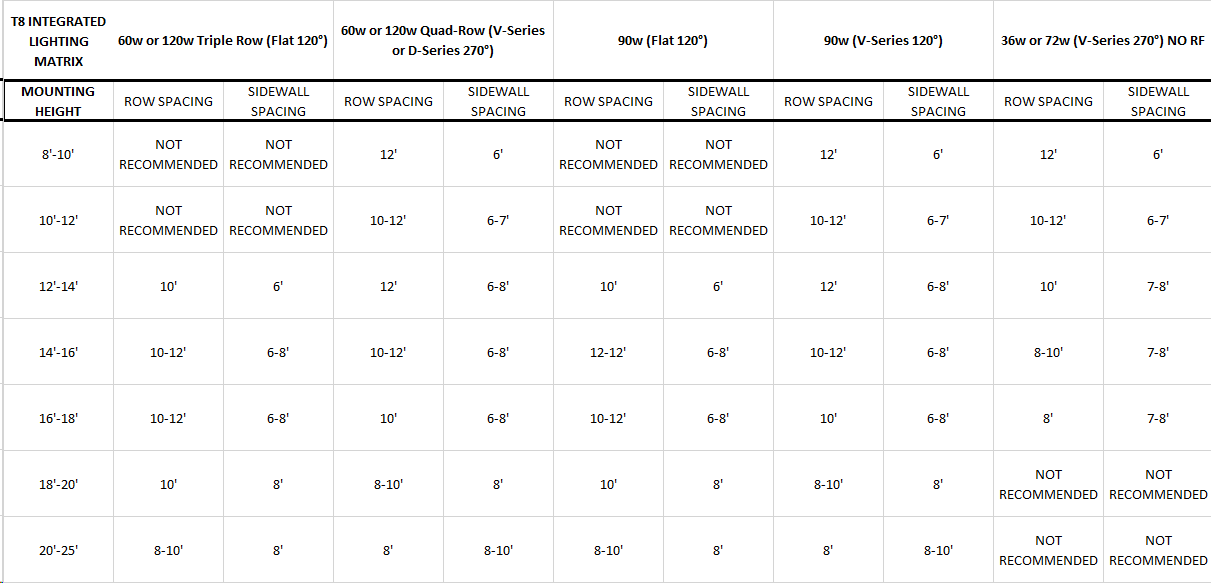

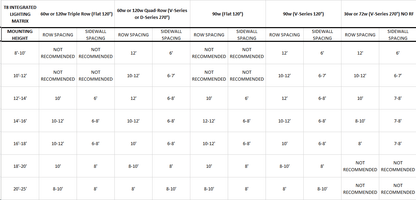

LIGHTING CHART- MATRIX - LIGHTING RECOMMENDATION

NO RF SERIES -- This product has a RF filtering system within the driver in each unit.  RF interference is a fairly common problem in high output linear lighting, due to "RF Noise" in the AC line feeding the light.  This problem creates "static" in radio reception as well as garage opener remote control performance issue.



We have just re-engineered our driver in combination with Cree 2835 SMD LED's to make this 4' lamp one of the highest Lumen in the industry at 121 lm/w 4,377 Projected Lumens in a FROSTED LENS.

- Designed for lighting in continuous rows (See Lighting Chart), for less than Retail/Production Level Lighting, space between lamps (Link Cords from 1'-6.5' in the Lighting Accessories Section)

Great for 9-16' ceilings or where you want a lot of light

 - - These lights are very bright, using a fraction of the wattage that low end LED products use.

- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.

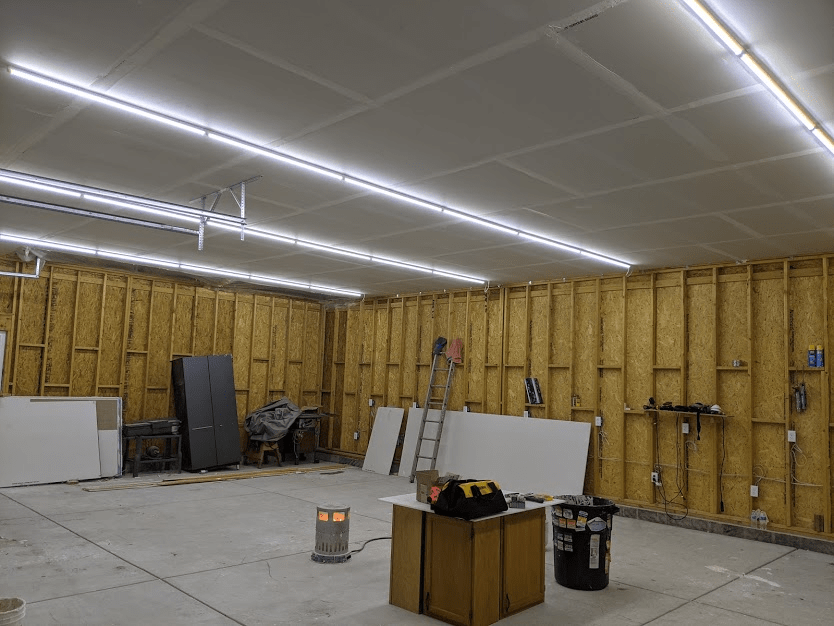

- The New innovative design includes Stainless Steel Mounting Hardware and V-Shape 170 Degree Projection.  Looks and performs as a high end, Commercial/Industrial LED product should.  Use in work shops, utility sheds, utility and laundry rooms, etc.

- Our V-Profile Series lights provide excellent lumen projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems using 2 x 150 watt lamps.

- Easy to install, offering end to end, continuous run installation, up to 6 in the run.





 *MAXIMUM OF 6 UNITS LINKED TOGETHER

We recommend 8 or more Lumens Per Cubic Foot for efficient lighting.

Length x Width x Height x 8 = Minimum recommended Lumens

** Divide that total lumen by the lamp of your choice lumen output, and this will give you your lamp count needed for that product in your area +-5%

EXAMPLE: 40'W x 60'L x 12'H = 28,800 cu. ft. x 8 = 230,400 Divided by (72w 8' V-Series 10,944 lumens) 21.05 lamps - Our contractors typically use 3 rows of 7 in this space running one down the center, and the 2 outside rows 8' off the side walls.



Specifications:
- T8 4'
- 36 Watt
- Cree LED's
- 4,377 Lumens FROSTED LENS
- CLEAR COVER
- 85-265V Grounded Driver
- 121 Lumens Per Watt - High Efficacy System with Superior Driver Technology
- 5500-6500K White is standard, other Kelvin available by special order
- W/Stainless Steel Mounting Hardware
- Direct Wire Cord (Whip)
- Linking Plug for Daisy Chaining up to 6 Units (1-5 Foot Linking Cords Available, and - - 3-Prong Cords in our lighting accessories section)
- Socket Cap
- Certification: UL cUL FCC VDE GS CE SAA RoHS CQC PSE LVD EMC
- Industrial/Commercial Grade
- Interlinking for continuous runs of up to 6 units
- 250 watt Fluorescent Equivalent
- 85+ CRI
- Instant Start In Cold Conditions
- No Flicker or Hum
- Aluminum/Polycarbonate Construction
- 12 Year Warranty

DRIVER SPECIFICATIONS

WARRANTY STATEMENT

WIRE COLOR CODE FOR INSTALLATION
