(10-PACK) Linkable LED T8 4ft 72w 8,827 Lumen FROSTED LENS (NO RF) Quad-Row w/Mounting Hardware

SHIPPING INCLUDED

PRODUCT VIDEO

NO RF DRIVER EMI TEST REPORT

SPECIFICATION SHEET

ACCESSORIES AVAILABLE

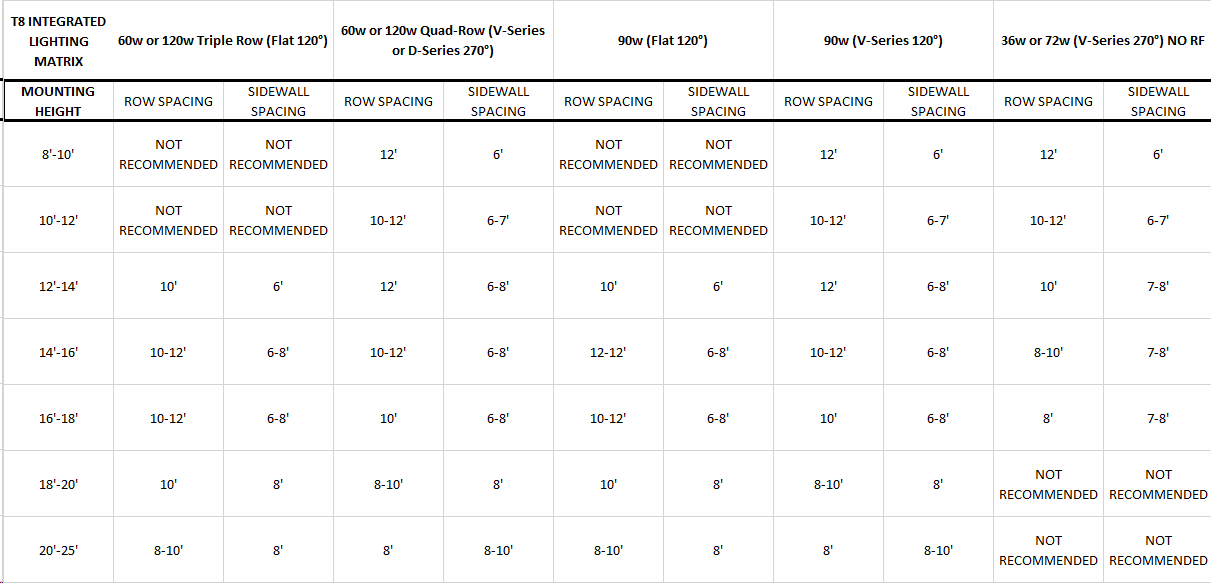

LIGHTING CHART- MATRIX - LIGHTING RECOMMENDATION

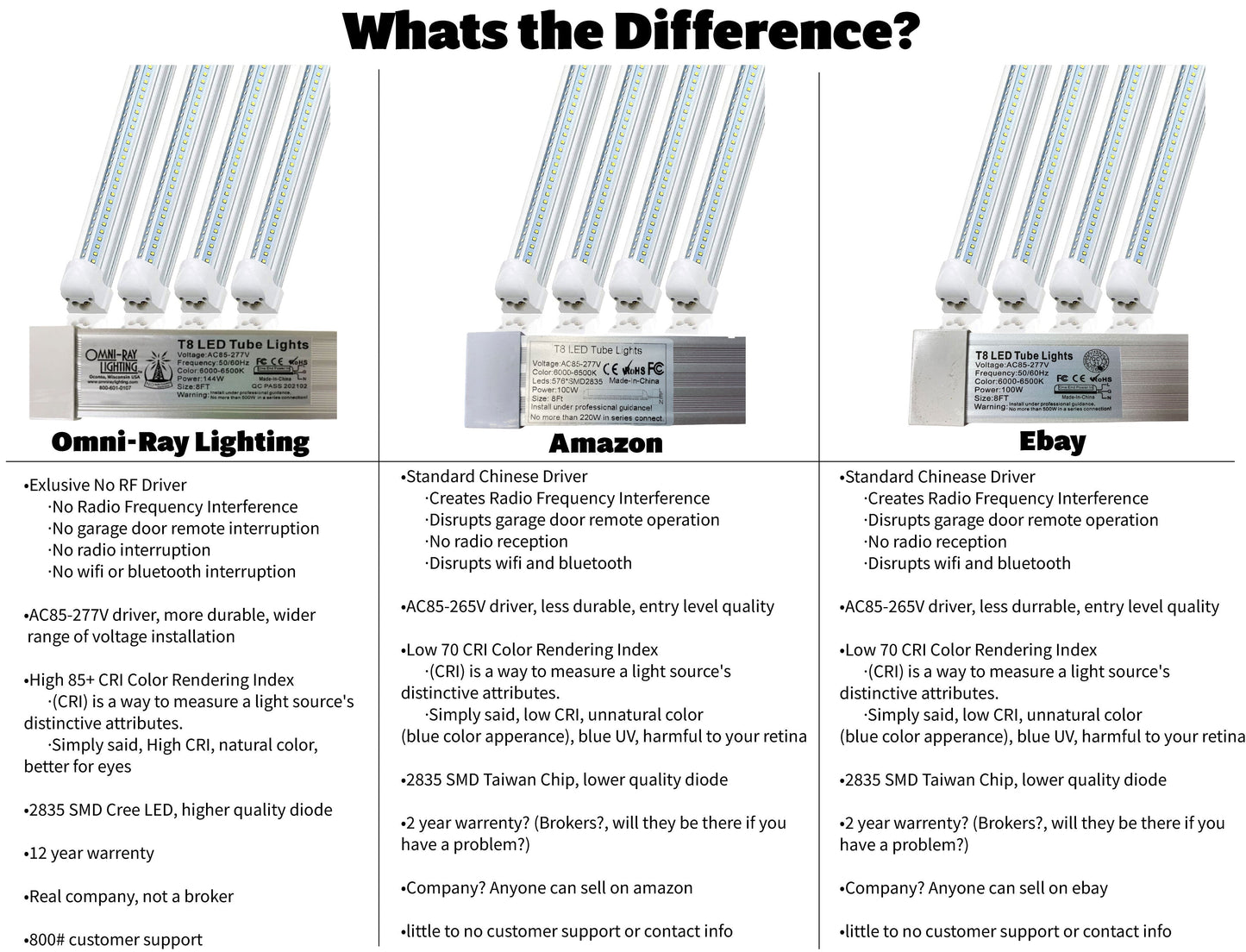

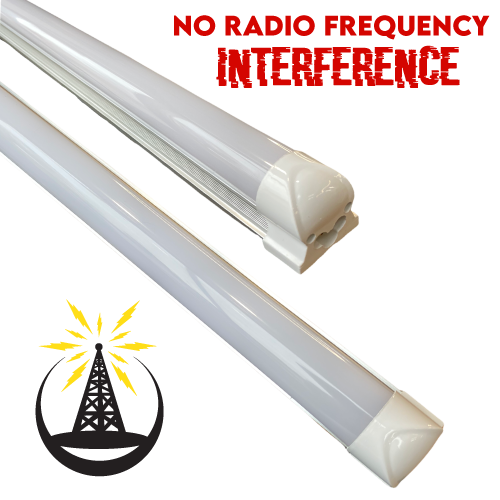

NO RF SERIES -- This product has a RF filtering system within the driver in each unit.  RF interference is a fairly common problem in high output linear lighting, due to "RF Noise" in the AC line feeding the light.  This problem creates "static" in radio reception as well as garage opener remote control performance issue.



This is our newest High Output Integrated Series product.  This model features a Quad-Row LED configuration using 72 watts for an astounding 8,827 lumens of throw at 220° using a FROSTED LENS

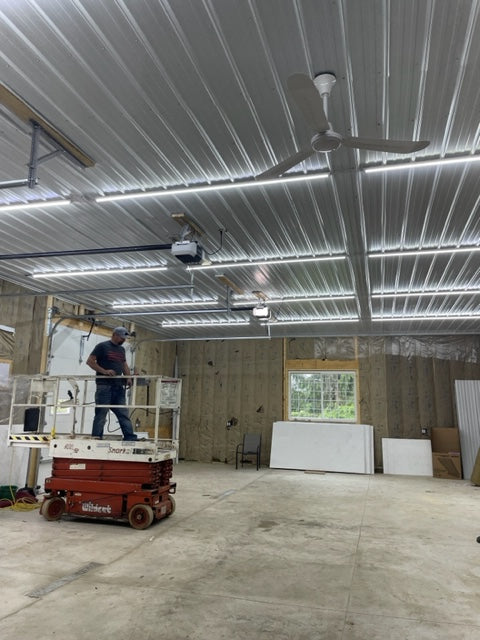

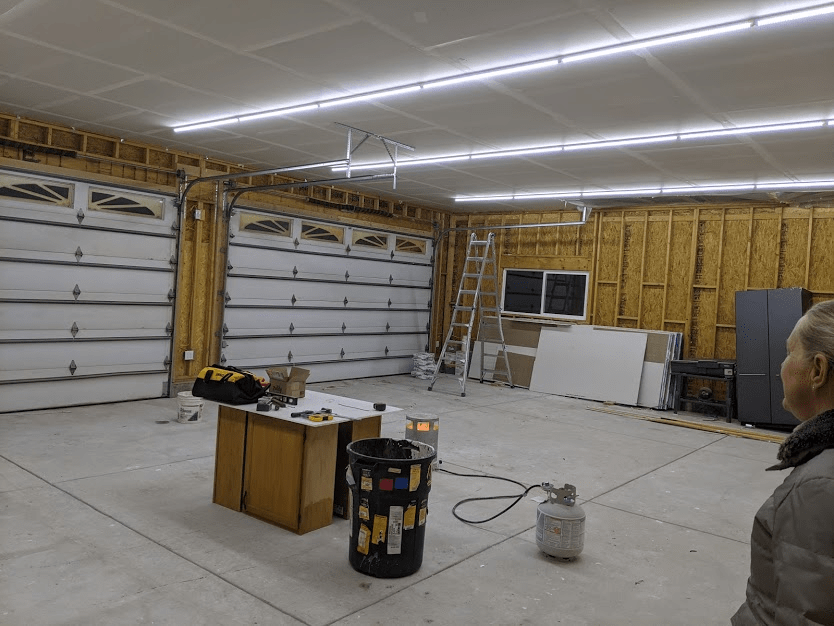

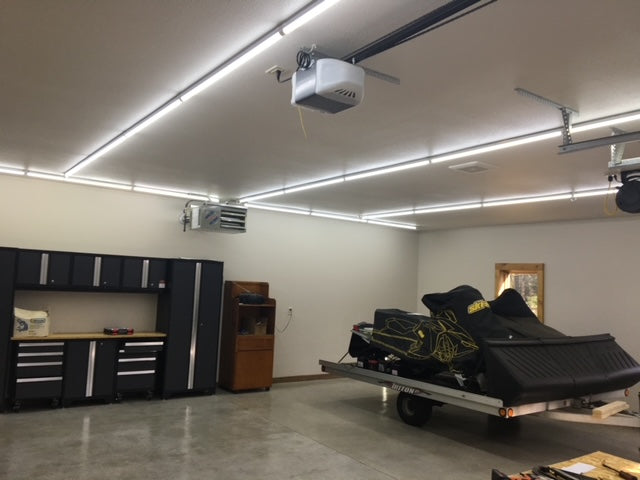

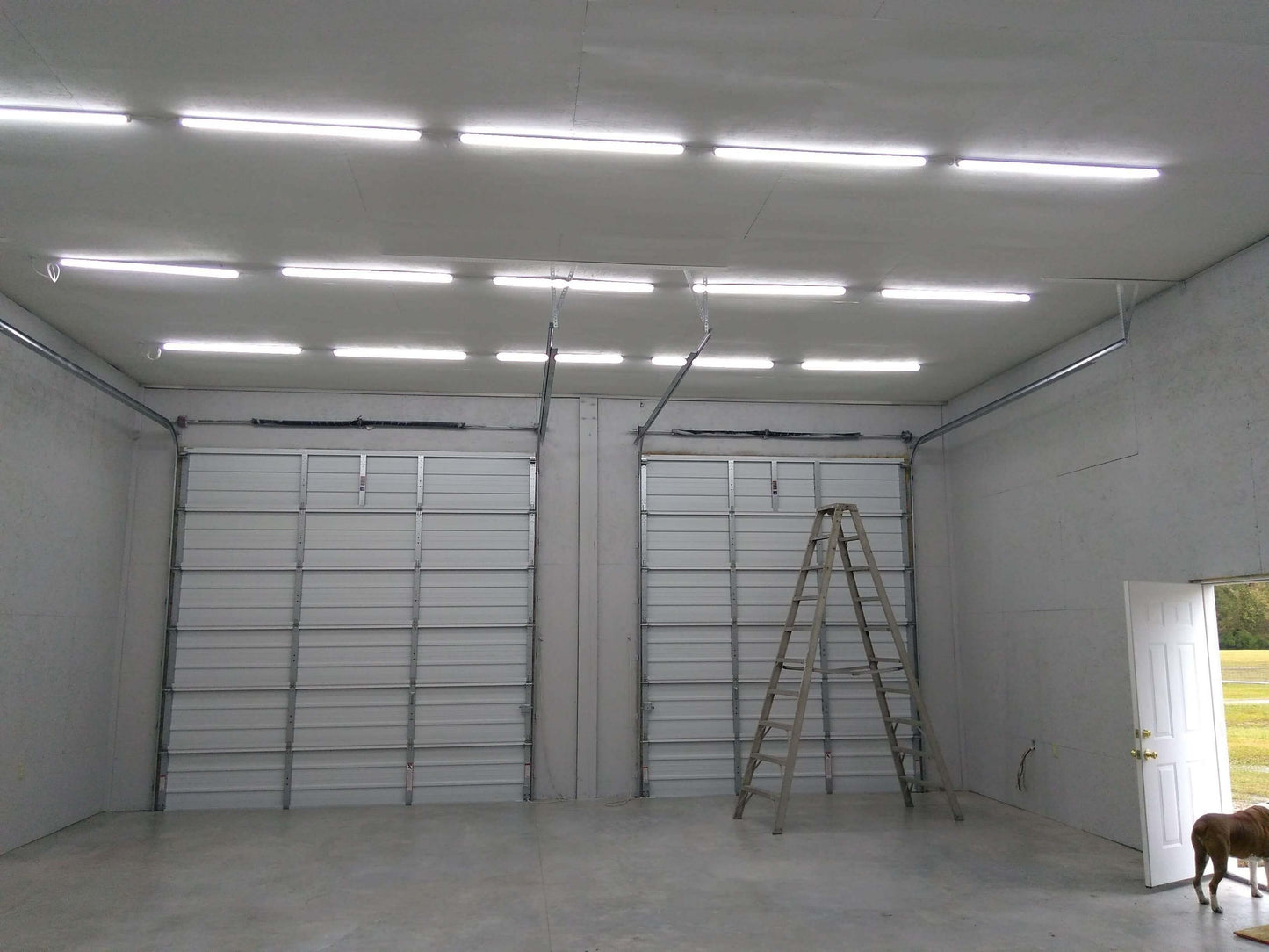

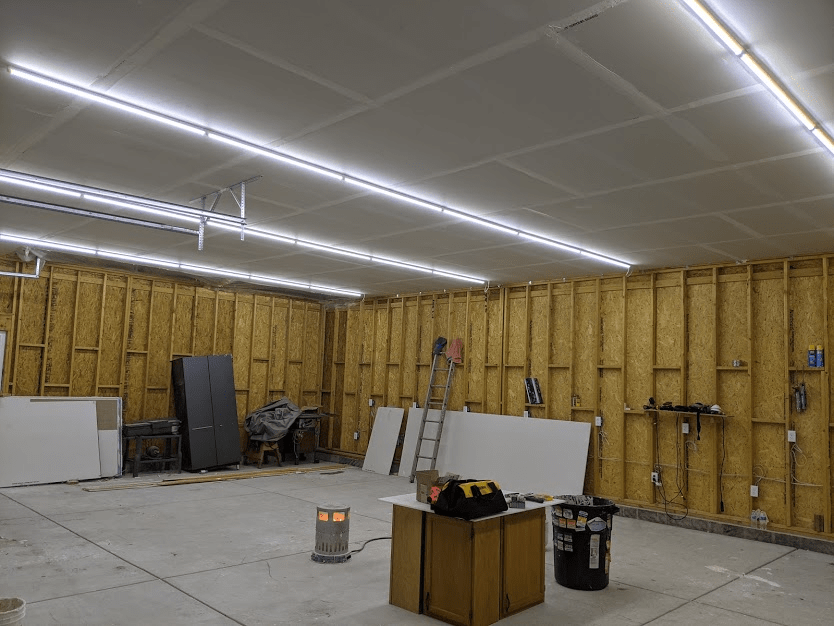

Great for 12-20' ceilings or where you want a lot of light

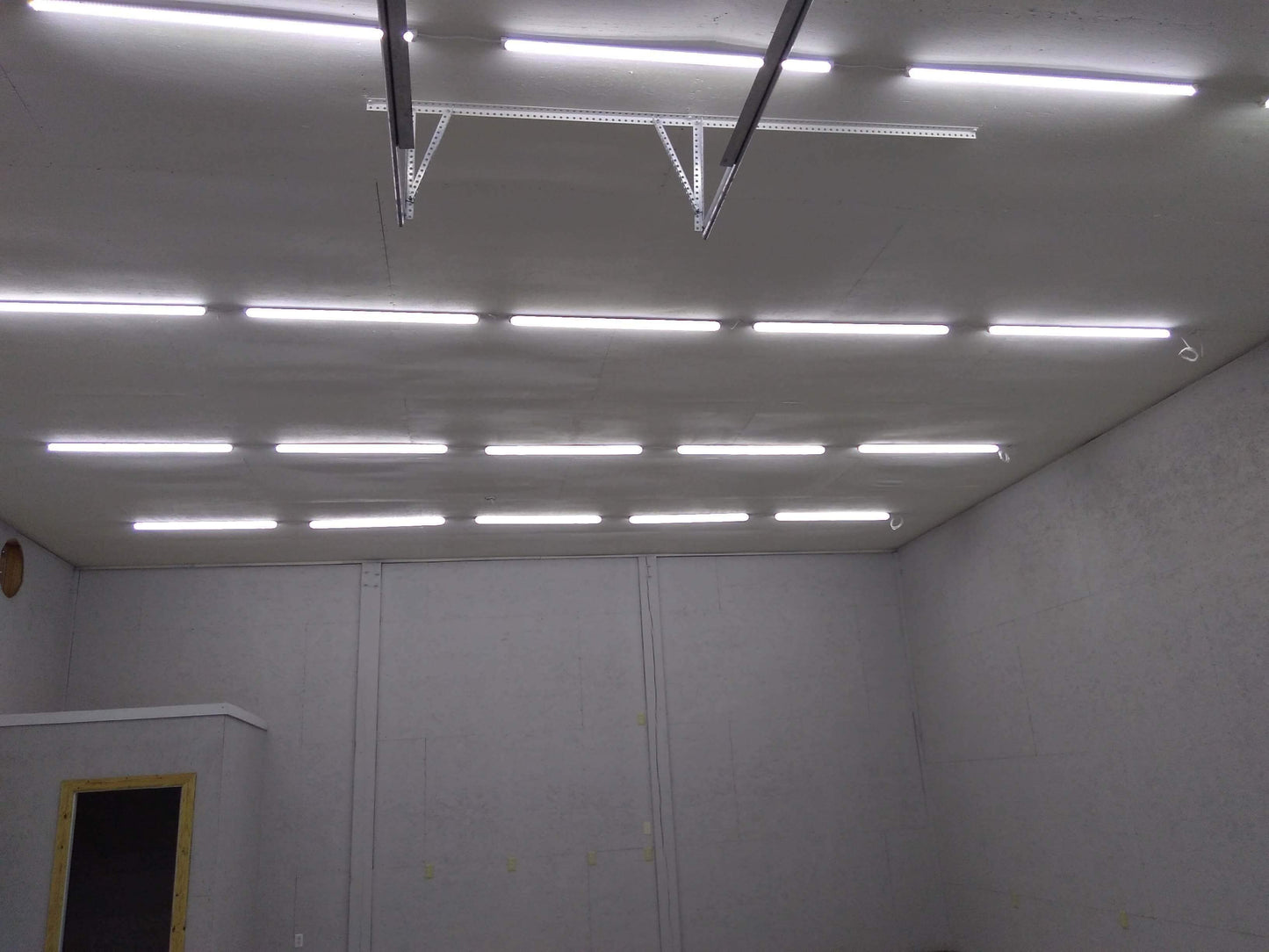

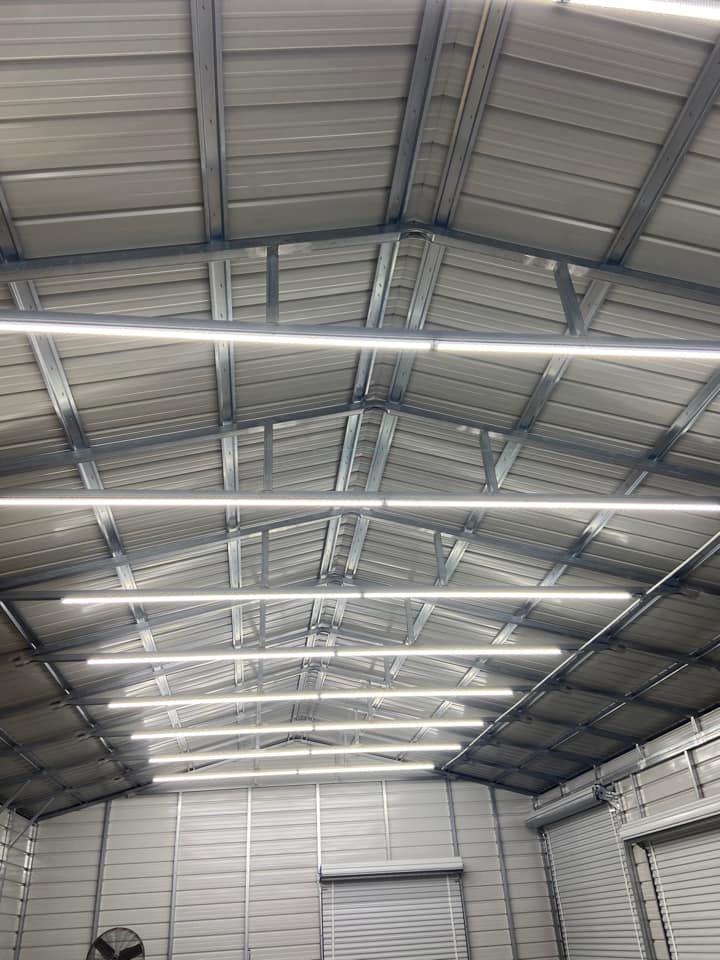

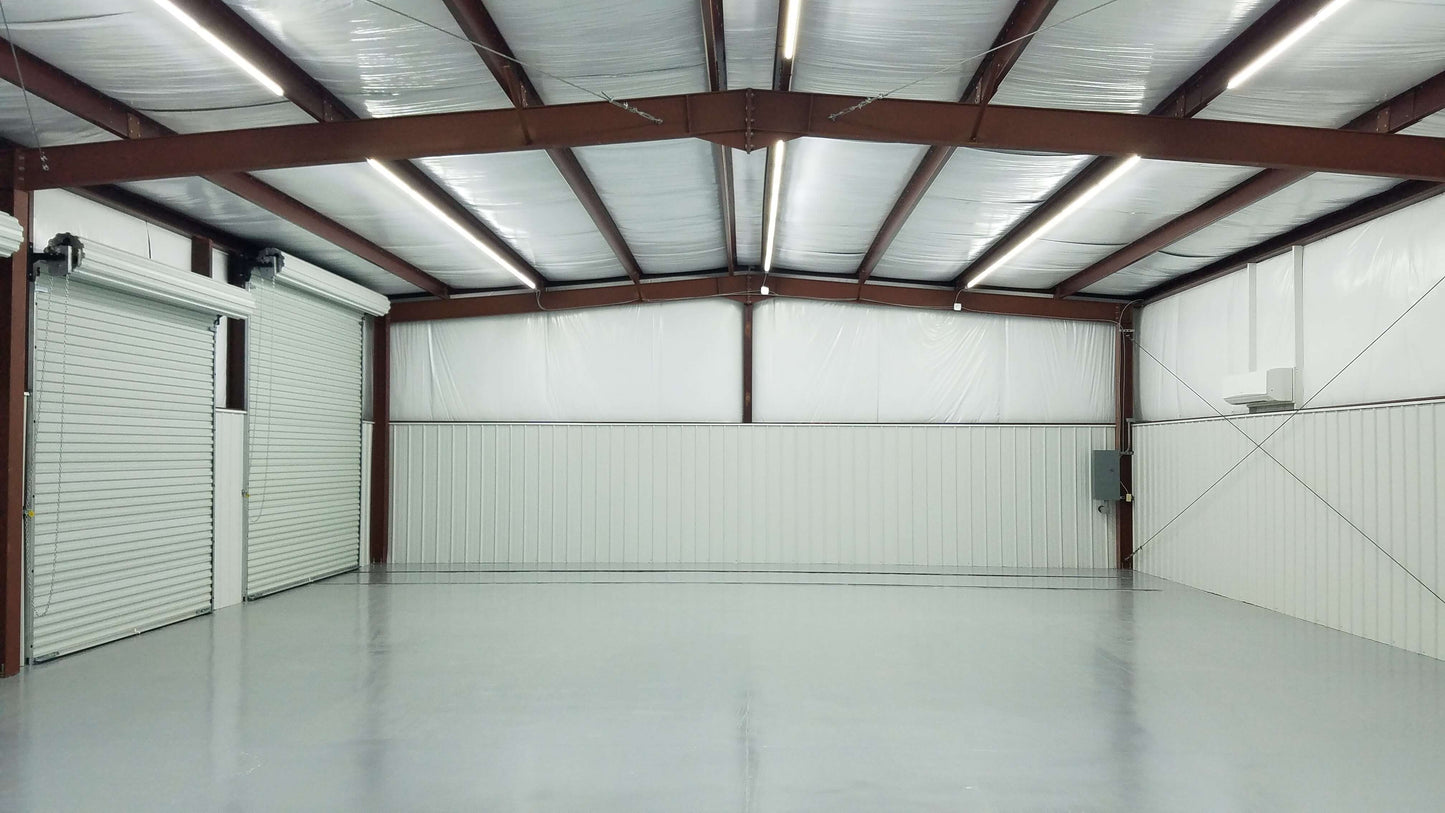

- Designed for lighting in continuous rows (See Lighting Chart), for less than Retail/Production Level Lighting, space between lamps (Link Cords from 1'-6.5' in the Lighting Accessories Section)

 - - These lights are very bright and are not recommended for low mounting heights, look for this model in FROSTED LENS for lower mounting heights

- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.

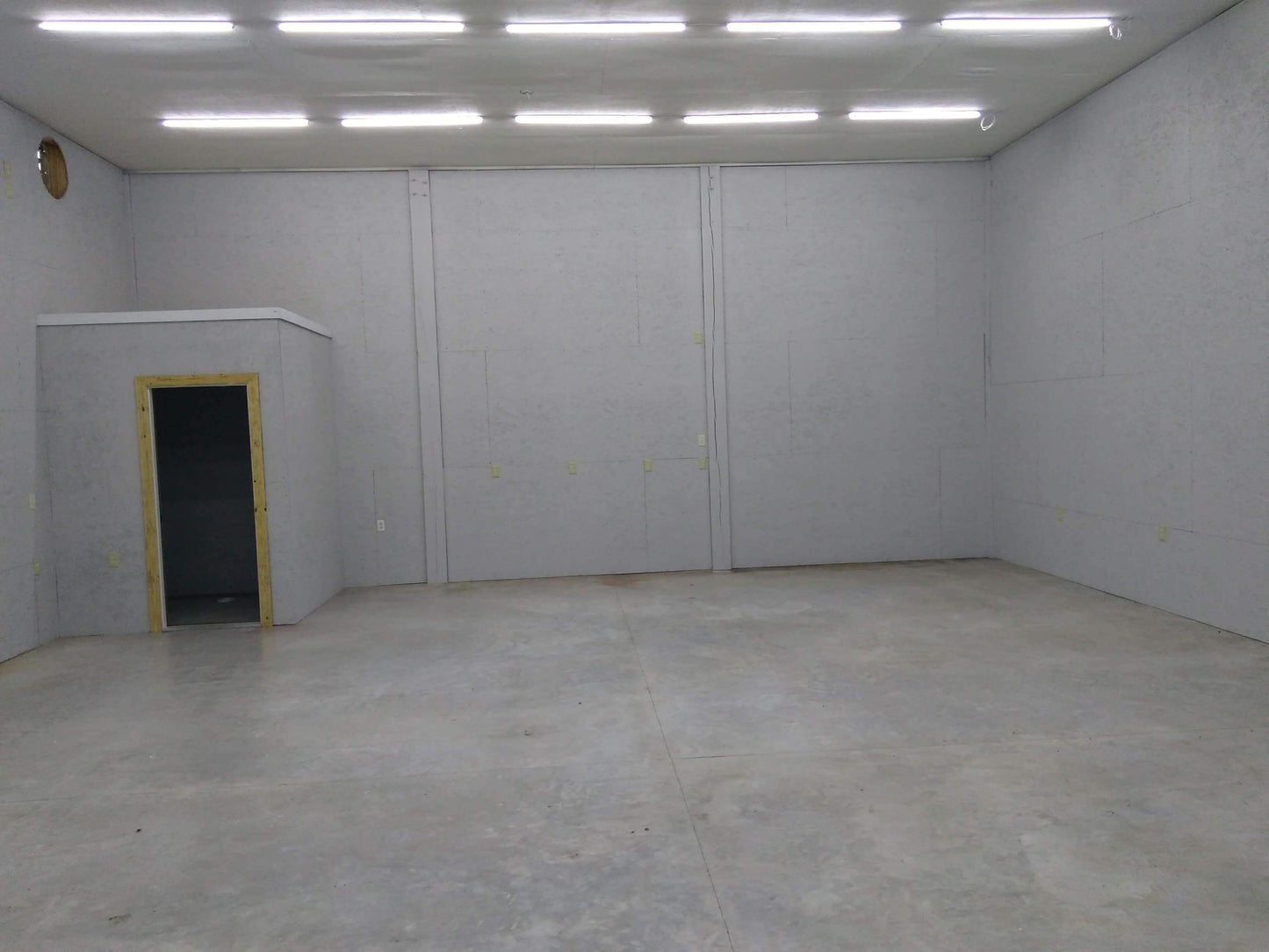

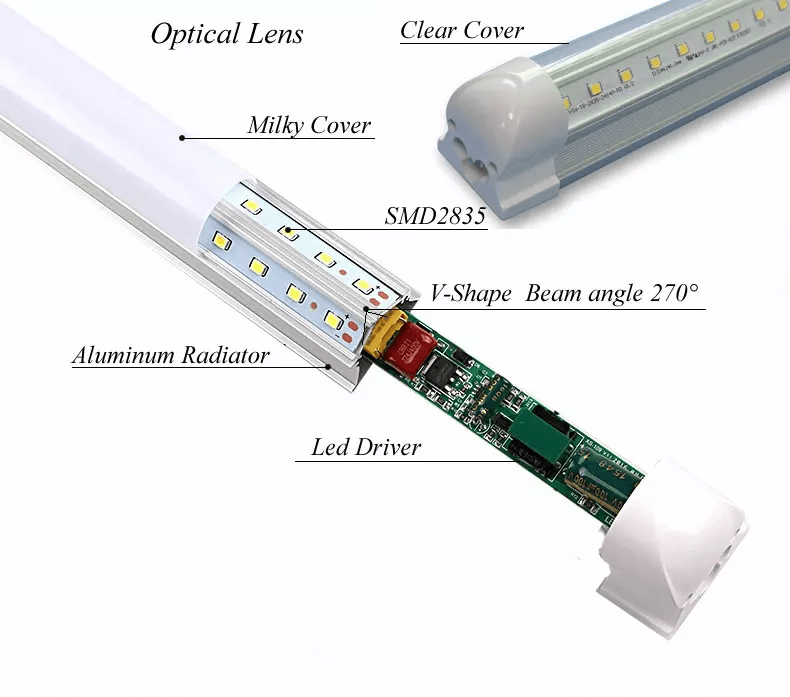

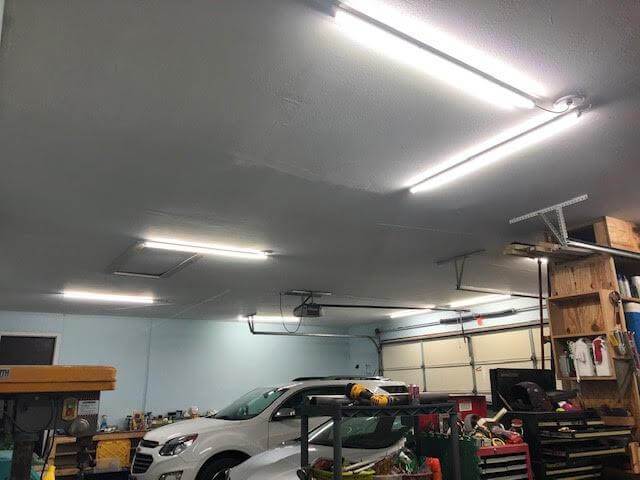

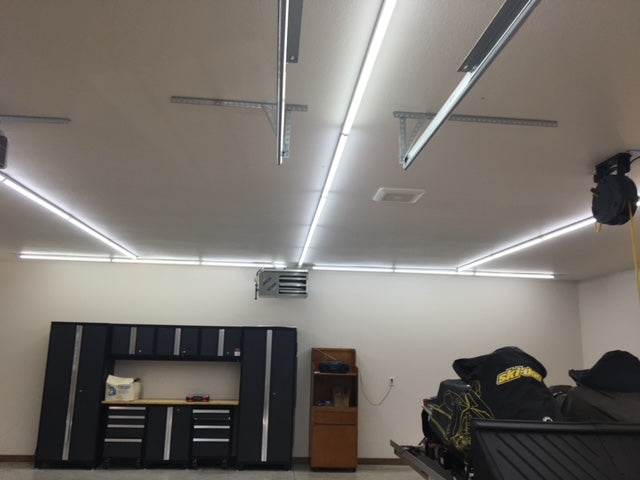

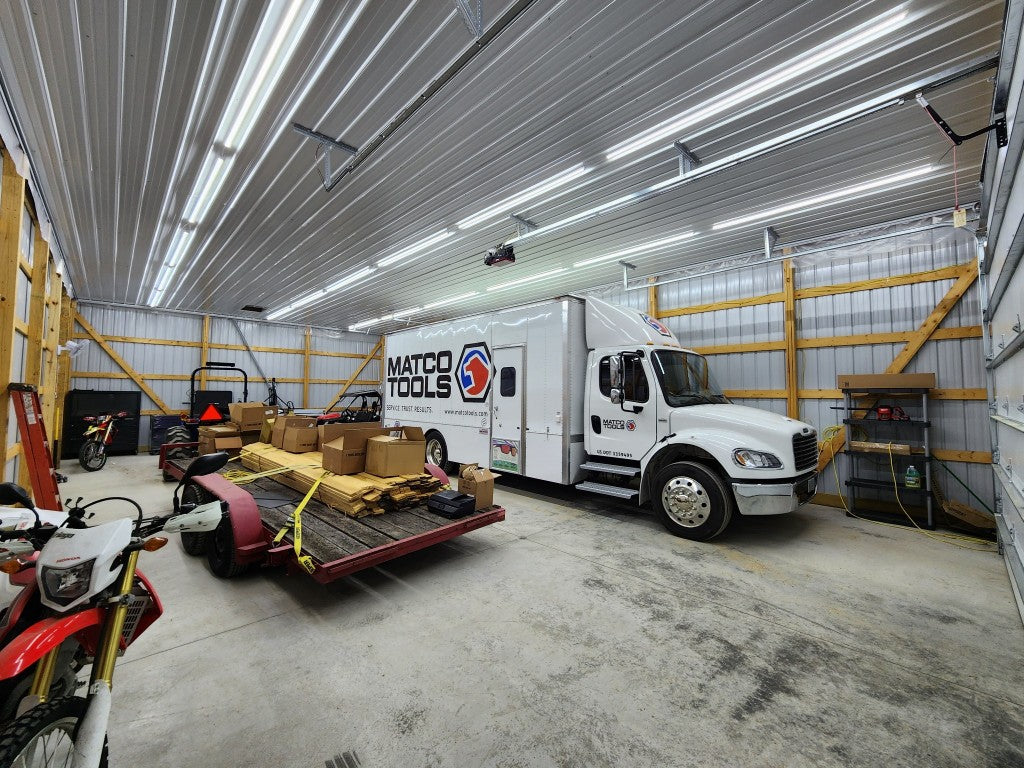

- The New innovative design includes Stainless Steel Mounting Hardware and Quad-Row 170° Projection.  Looks and performs as a high end, Commercial/Industrial LED product should.  Use in work shops, utility sheds, utility and laundry rooms, etc.

- Our Quad Row V-Series lights provide excellent 170° lumen projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems using multiple lamps.

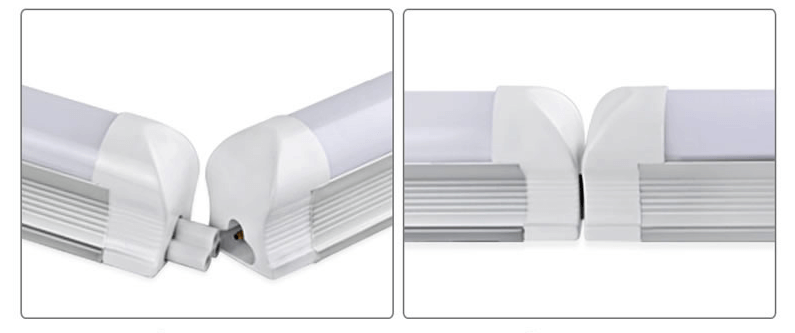

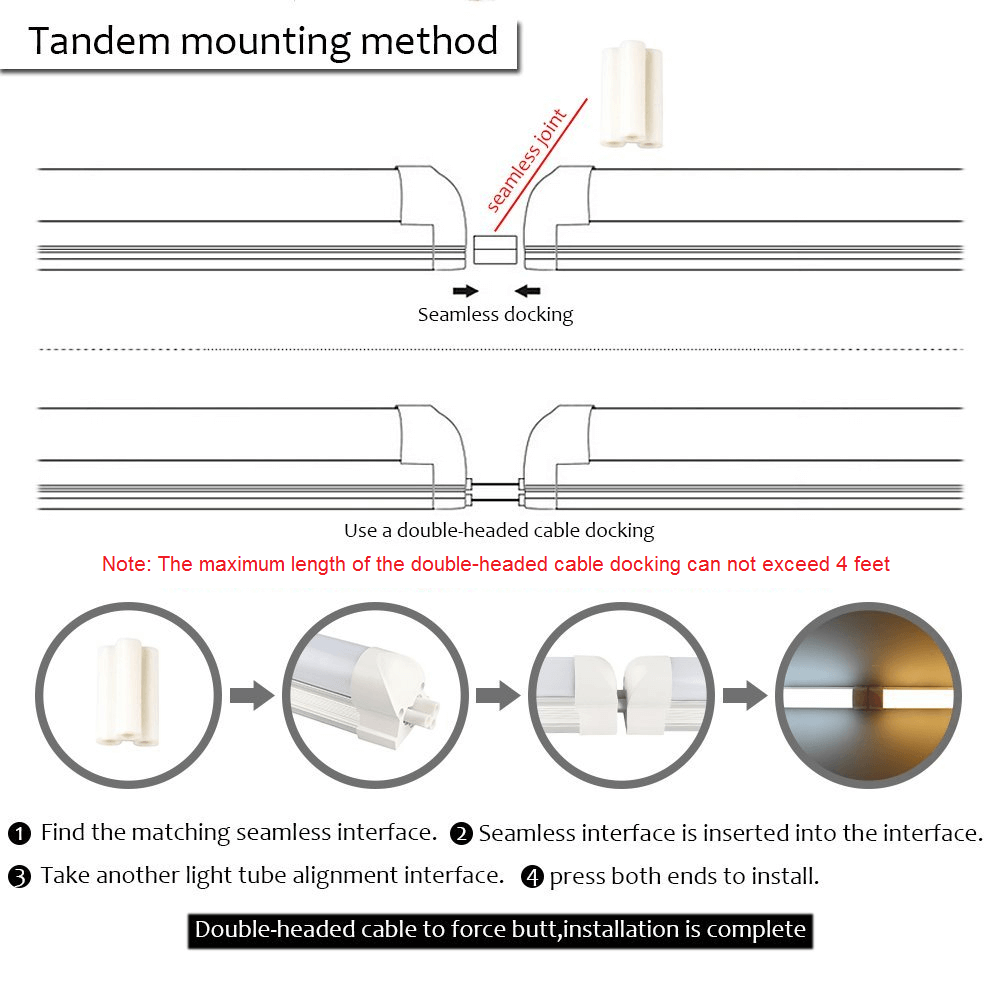

- Easy to install, offering end to end, continuous run installation, up to 4 in the run.





 *MAXIMUM OF 4 UNITS LINKED TOGETHER

We recommend 8 or more Lumens Per Cubic Foot for efficient lighting.

Length x Width x Height x 8 = Minimum recommended Lumens

** Divide that total lumen by the lamp of your choice lumen output, and this will give you your lamp count needed for that product in your area +-5%

EXAMPLE: 40'W x 60'L x 12'H = 28,800 cu. ft. x 8 = 230,400 Divided by (72w 8' V-Series 10,944 lumens) 21.05 lamps - Our contractors typically use 3 rows of 7 in this space running one down the center, and the 2 outside rows 8' off the side walls.



Specifications:

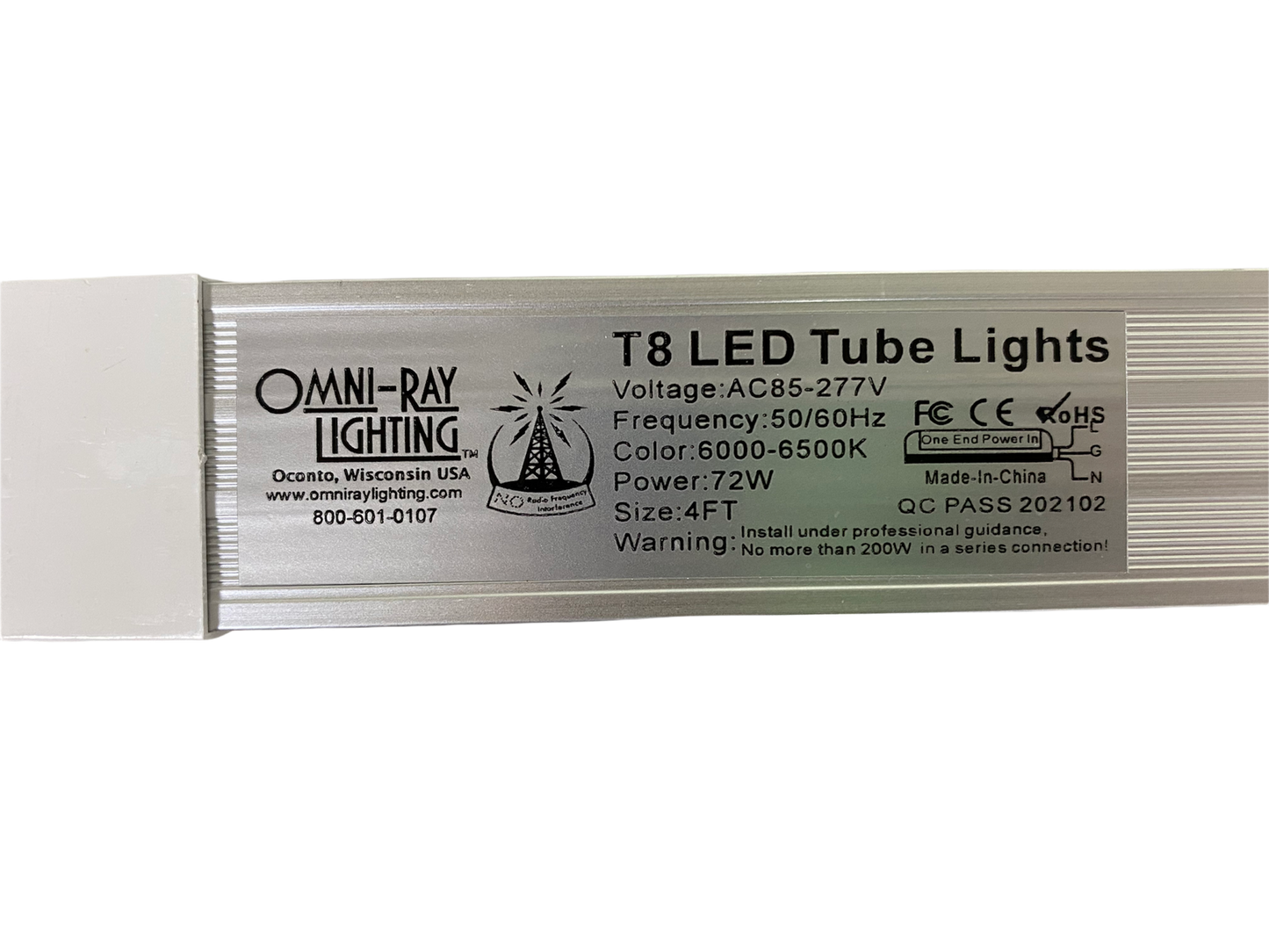

- T8 4'
- 72 Watt
- Cree LED's
- 8,827 Lumens
- FROSTED LENS
- 85-265V
- 123 Lumens Per Watt - High Efficacy System with Superior Driver Technology

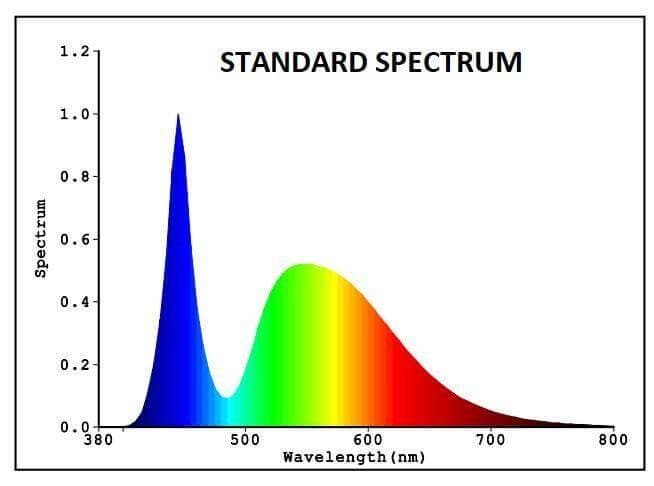

- 5500-6000K 85+ CRI White is standard, other Kelvin may be available by special order

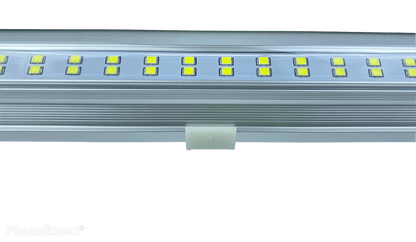

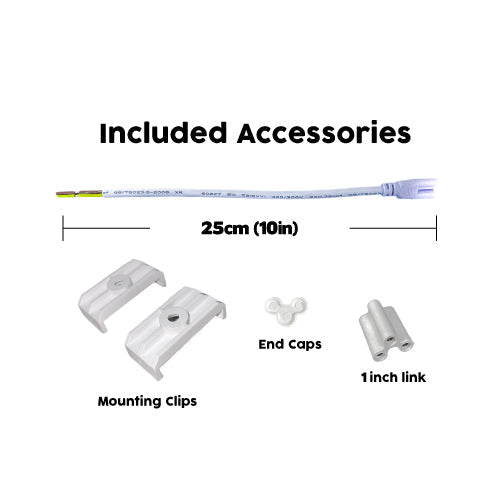

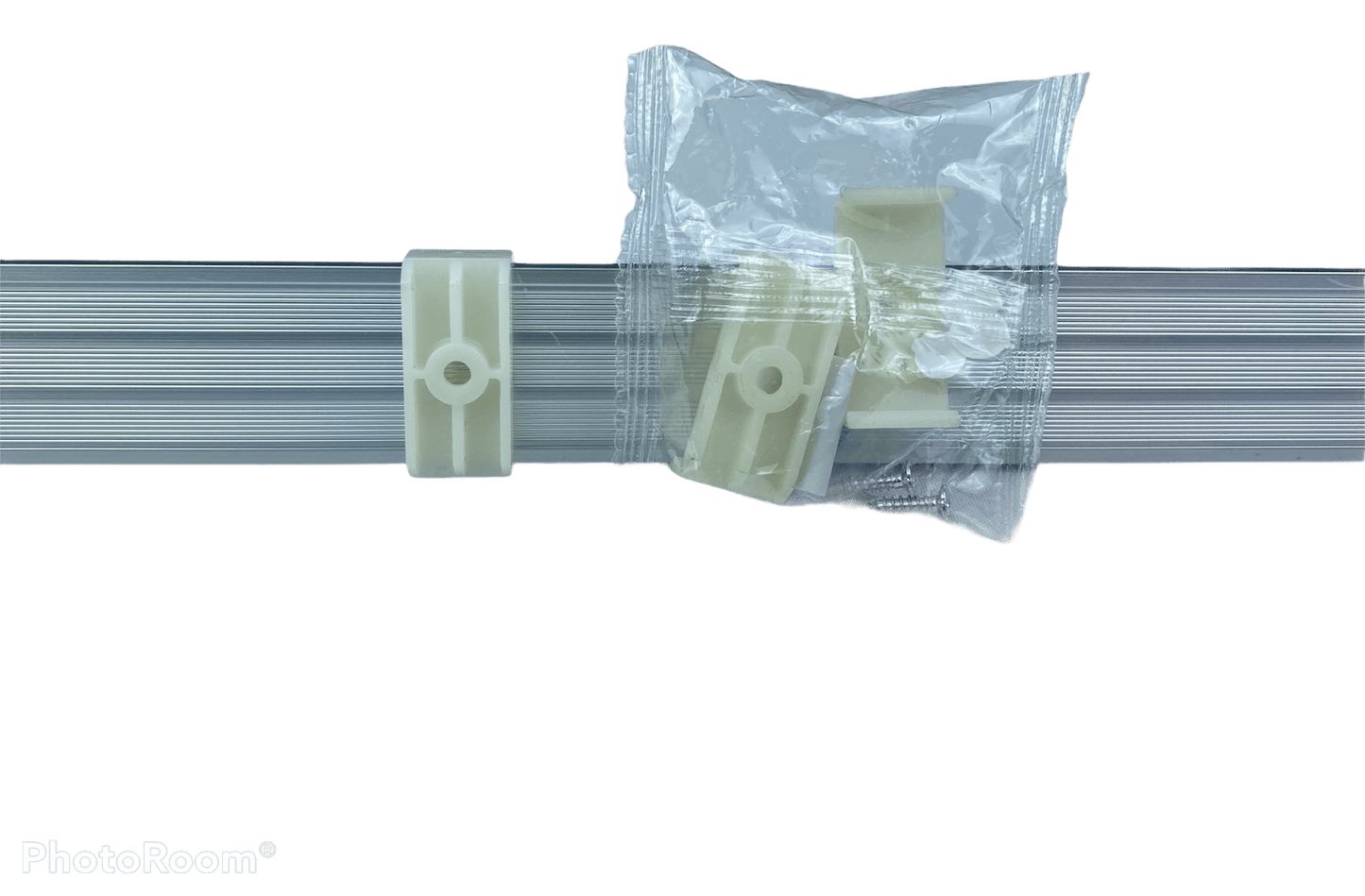

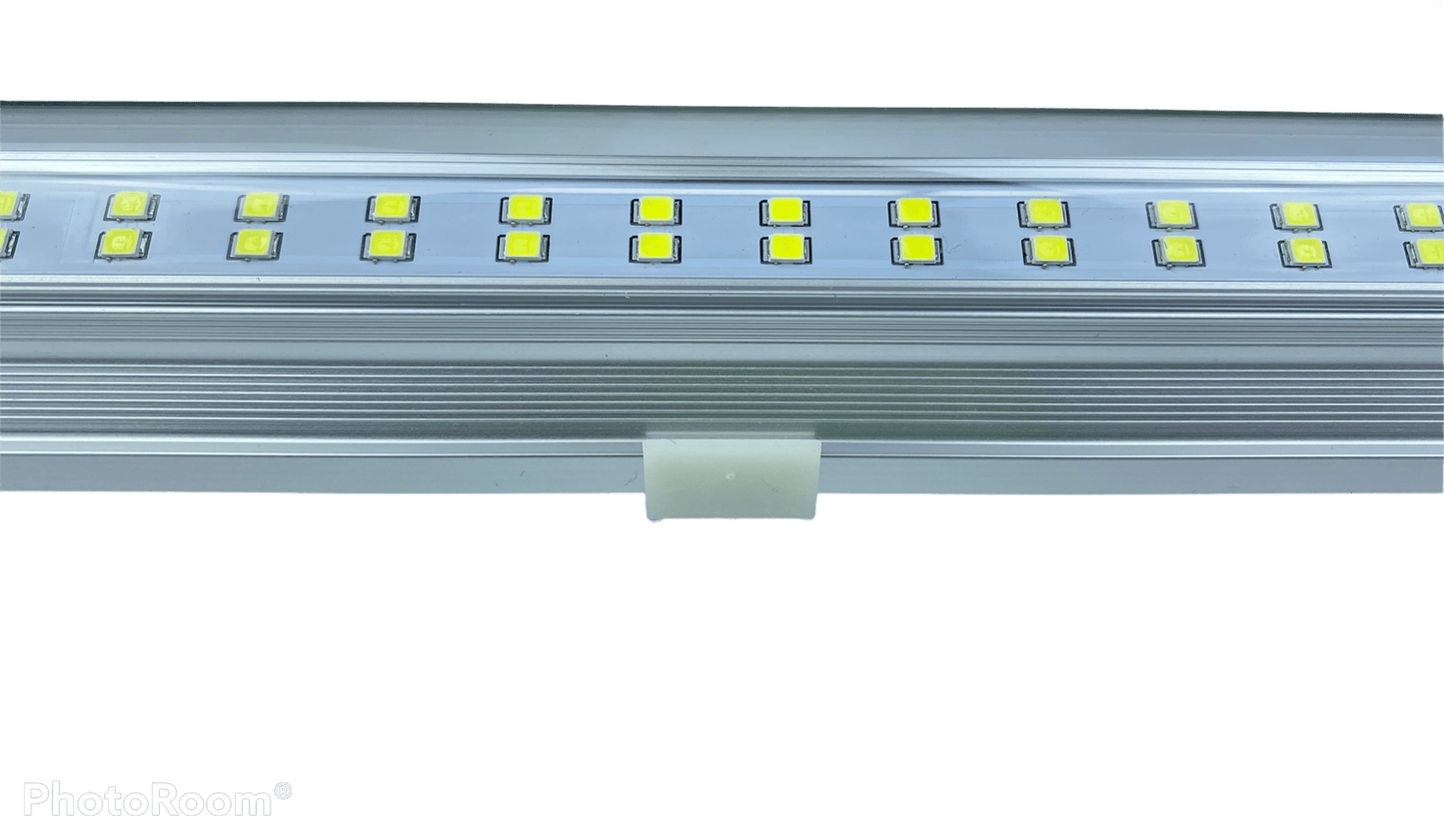

- W/Nylon Mounting Hardware
- Direct Wire Cord (Whip)
- Linking Plug for Daisy Chaining up to 3 Units (1-5 Foot Linking Cords Available, and - 3-Prong Cords in our lighting accessories section)
- Socket Cap
- Certification: UL Listed
- Industrial/Commercial Grade
- Interlinking for continuous runs of up to 4 units
- 250 watt Fluorescent Equivalent
- 85+ CRI
- Instant Start In Cold Conditions
- No Flicker or Hum
- Aluminum/Polycarbonate Construction
- 12 Year Warranty

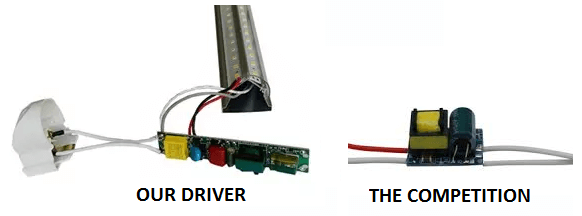

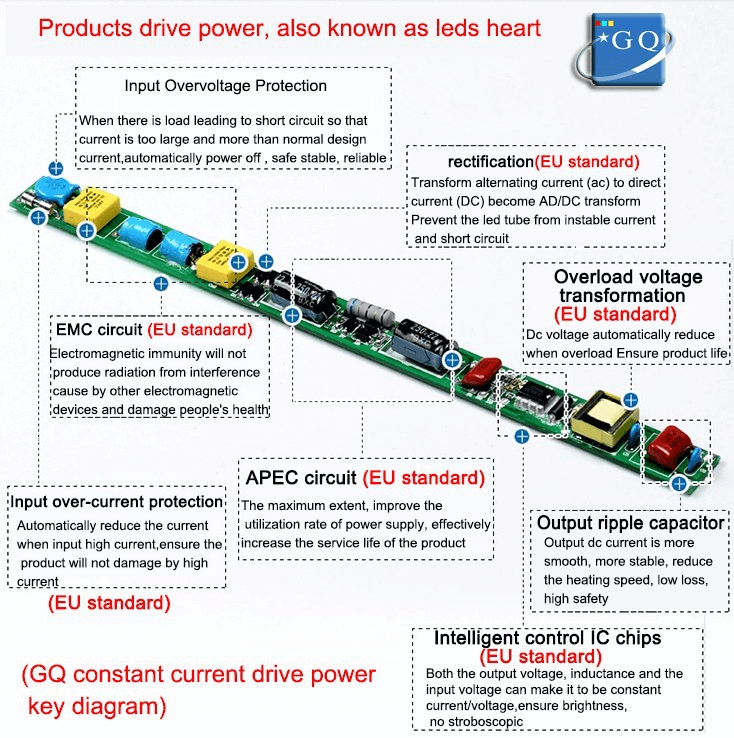

DRIVER SPECIFICATIONS

WARRANTY STATEMENT

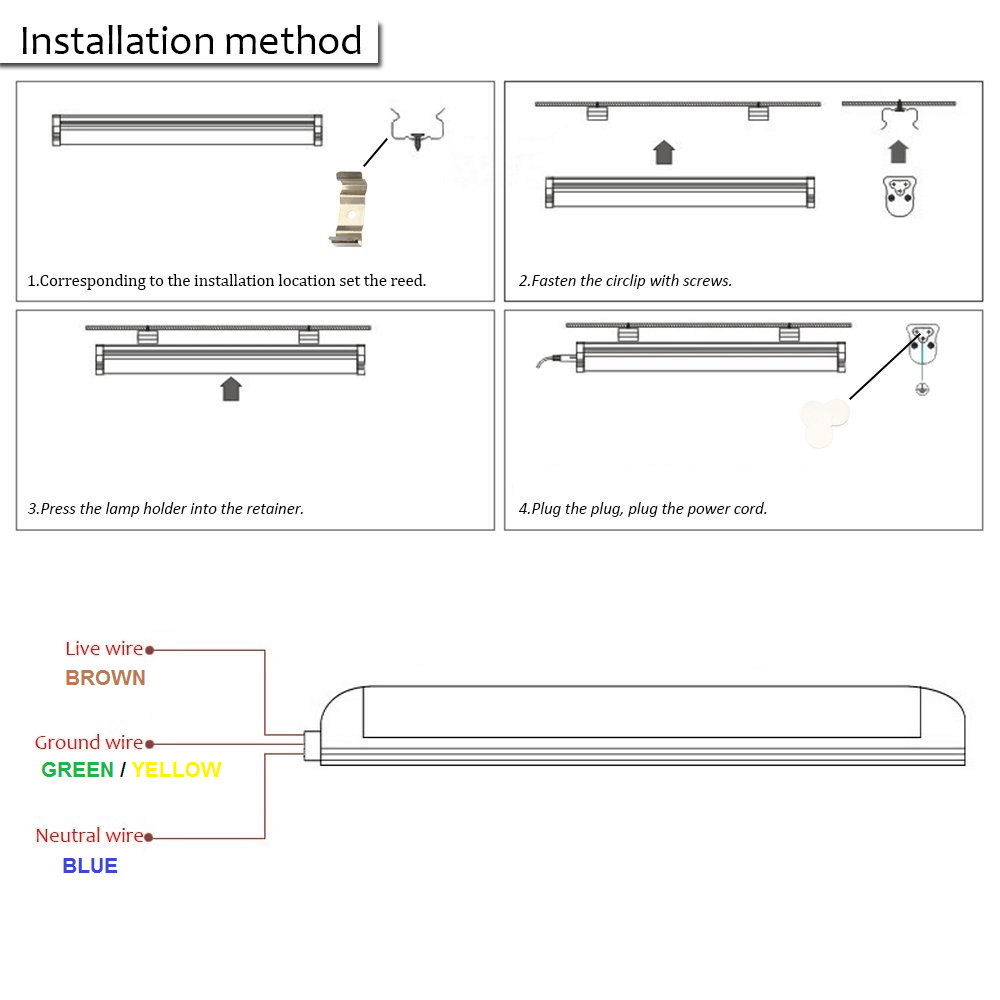

WIRE COLOR CODE FOR INSTALLATION
